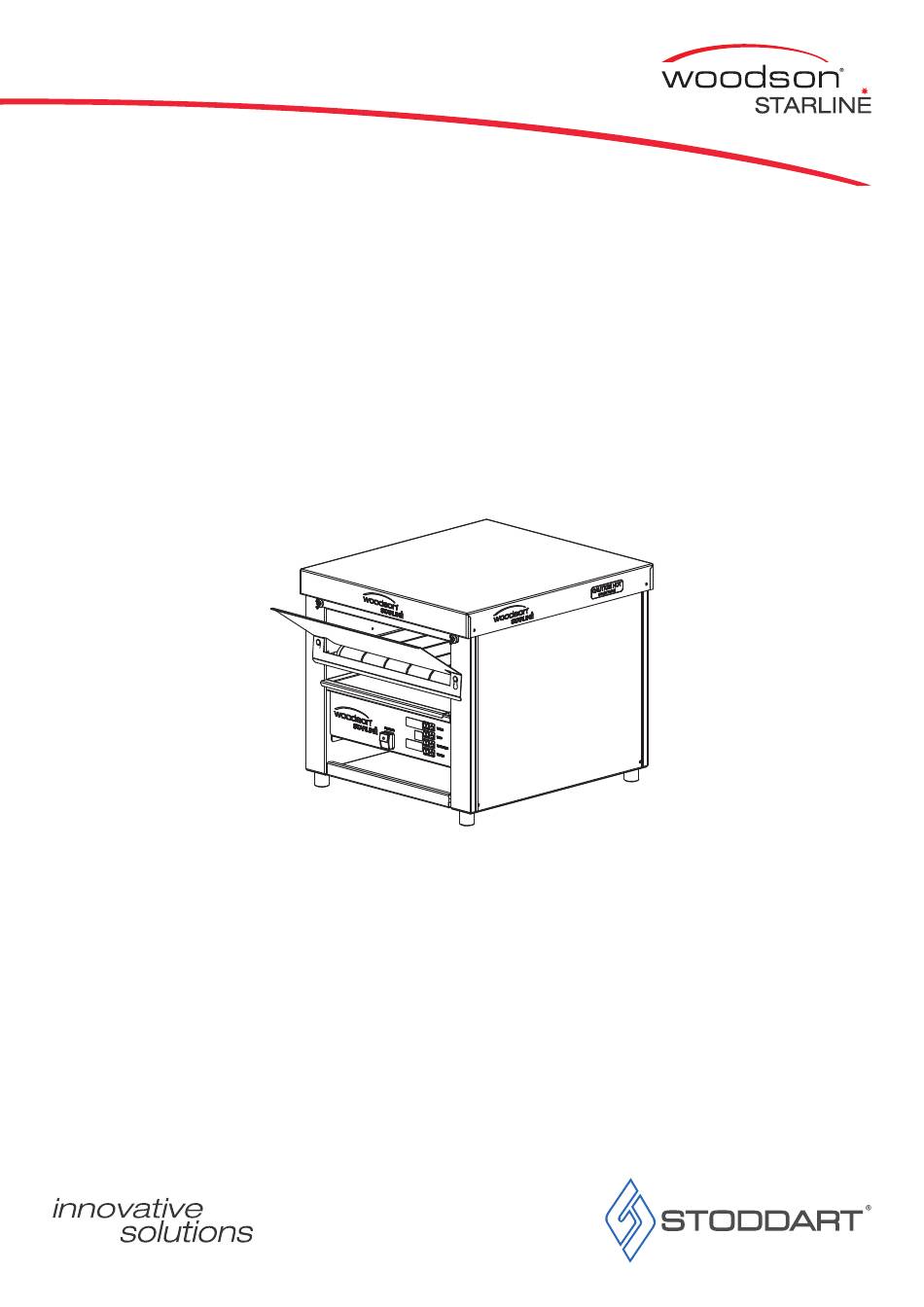

- Page 1 SPECIFICATION, INSTALLATION AND OPERATION MANUAL READ ALL INSTRUCTIONS BEFORE USE Bun 25 Conveyor Oven Models: W.CVT.BUN.25 A guide on the use, care and maintenance of your quality Woodson Starline product Revision Date: 27/02/2019...
- Page 2 Page Intentionally Left Blank Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 1...
-
Page 3: Table Of Contents
Technical Specifications � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7 W.CVT.BUN.25 Operation Operating Instructions �... -
Page 4: Your New Woodson Product
Introduction Your New Woodson Product Thank you for choosing this quality Woodson product� All our products are designed and made to meet the needs of food service professionals� By using, caring and maintaining your Woodson product according to these instructions, your Woodson product should give you many years of reliable service�... -
Page 5: Attention
Introduction Attention Carefully read this instruction booklet, as it contains important advice for safe installation, operation and maintenance� Keep this booklet on hand in a safe place for future reference by other operators or users� Disclaimer The manufacturer and distributor cannot be held responsible or liable for any injuries or damages of any kind occurred to persons, units or others, due to abuse and misuse of this unit in regards to installation, removal, operation, servicing or maintenance, or lack of conformity with the instructions indicated in this documentation�... -
Page 6: Setting Up
Installation Setting Up WARNING Improper installation, adjustments, alterations, service or maintenance can cause property damage, injury or death. Handling • Use suitable means to move the unit: e�g� - For smaller items use two people - For large items a lift truck or fork pallet trucks (the forks should reach more completely beneath the unit)� Unpacking •... -
Page 7: Electrical Connection
Installation Electrical Connection WARNING This unit must be installed in accordance with AS/NZS 60335.1 Information Aggregate electrical ratings of the Unit are expressed in kilowatts in this manual� Single Phase Units: A terminal block for on-site connection, by a licensed electrician will be supplied inside the service compartment of the unit and be indicated •... -
Page 8: Technical Specifications
Specification Technical Specifications W.CVT.BUN.25 Specifications Model W.CVT.BUN.25 Height 485mm Width 570mm Depth 510mm Power AMPS Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 7... -
Page 9: W.cvt.bun
Note: After 60 seconds the settings will save to the control memory� The unit will now show these settings at startup� Note: Woodson Starline recommends that you time the belt speed from when the food item starts to enter the oven to when it starts to come out�... -
Page 10: Cleaning
Operation Cleaning General Information • Threaded fasteners can loosen in service� Regular inspection and adjustment should be carried out as required • Cleaning is recommended for health and safety purposes and to prolong the life of the unit • Do NOT use abrasive pads or cleaners on the stainless steel or any other metal parts of the unit •... -
Page 11: Cleaning Schedule
Operation Cleaning Schedule • Daily cleaning is required for the oven conveyor, crumb tray and external surfaces� This will help to maintain and prolong the efficiency of your oven • The unit should be cleaned at the end of each work day Materials Required •... -
Page 12: Troubleshooting
Operation Troubleshooting • If any faults/issues occur with the unit, follow the below troubleshooting procedures • If the troubleshooting procedures do not correct the problem, contact the Stoddart Service Department WARNING Technician tasks are only to be completed by qualified service people. - Page 13 Page Intentionally Left Blank Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 12...
- Page 14 Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 13...
- Page 15 Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 14...
- Page 16 Australia Service / Spare Parts Sales Tel: 1300 307 289 Tel: 1300 79 1954 Email: service@stoddart.com.au Email: sales@stoddart.com.au Email: spares@stoddart.com.au www.stoddart.com.au Australian Business Number: 16009690251 New Zealand Service / Spare Parts Sales Tel: 0800 935 714 Tel: 0800 79 1954 Email: service@stoddart.co.nz Email: sales@stoddart.co.nz Email: spares@stoddart.co.nz...
