Summary of Contents for Vivat D-26

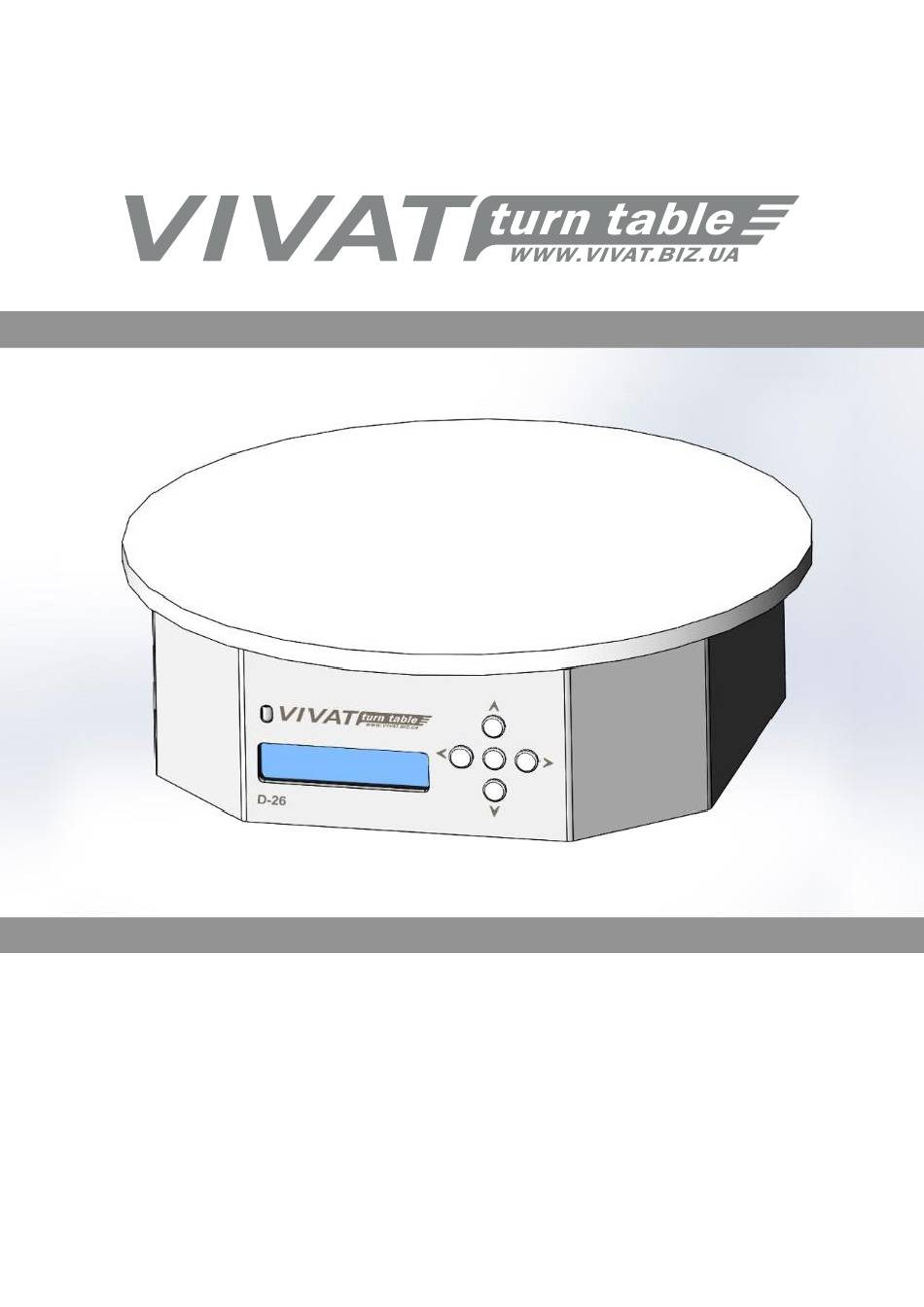

- Page 1 Vivat Turn Table D-26 User manual...
-
Page 2: Table Of Contents
1.4. Vivat Turn Table features ..........................4 Package contents ..............................4 Specifications ................................4 Preparation for work ..............................5 Operation of the Vivat Turn Table ..........................5 5.1. The controls ..............................5 5.2. Working with a remote control ........................6 5.3. -
Page 3: Introduction
This is achieved by serial photographing of the object that rotates. The usage of this technology will increase the number of orders, and therefore the profits of the online store. To create a "Photo 360°" we have developed rotary table Vivat Turn Table. 1.1. Sphere of application Vivat Turn Table is designed for: - automatic creation of “Photo 360°”... -
Page 4: Video Mode Settings
- the use of industrial stepper motor enables highly accurate shooting of objects weighing up to 20 kg.; - remote control allows you to operate the Vivat Turn Table at a distance of up to 5 meters. This saves time and improves the working process. Managing of the work by remote control eliminates vibration caused by pressing buttons on the body of the table;... -
Page 5: Preparation For Work
4. Preparation for work Set the device on a hard flat surface. On the back of the Vivat Turn Table there are connectors for camera – “Camera”, power – “220/110V”, battery “12V”, service USB port “Service” and power switch – “On/Off”. -
Page 6: Working With A Remote Control
Table 1. Presets 5.3. The preparation of the camera Before starting the work with Vivat Turn Table it is important to adjust the camera: - disable the autofocus on the lens or the camera body (depending on a model); - select the manual mode and adjusts the exposure according to the shooting conditions;... -
Page 7: Vivat Turn Table Modes
5.4. Vivat Turn Table modes There are two main modes of Vivat Turn Table – “PHOTO MODE” and “VIDEO MODE”. Also device has an additional manual control mode – “MANUAL MODE”. In “PHOTO MODE” platform rotates at a certain angle with a certain speed, then it signals camera to release the shutter. - Page 8 Last value of “frames” property is “user frames”. When this value is chosen, device make photos according previously saved user frames. They can be set in “SETTINGS” menu. You can specify the pause in seconds between the stop of the platform and camera shutter release (“pause before”).
-
Page 9: Video Mode
PHOTO MODE > make 360° photos - platform motion direction direction > - pause before shutter release < pause before > - pause after shutter release < pause after > - motion with smooth start and < acceleration > stop - platform rotation speed <... -
Page 10: Manual Mode
< VIDEO MODE > make 360° videos - platform motion direction direction > - number of full turns < cycles > - motion with smooth start and stop < acceleration > - platform rotation speed < speed > - launch the program <... -
Page 11: Device Settings (Settings)
IR button Value rotate platform to 22,5° counterclockwise (1/16) rotate platform to 22,5° clockwise (1/16) rotate platform to 45° counterclockwise (1/8) rotate platform to 45° clockwise (1/8) rotate platform to 90° counterclockwise (1/4) back to zero (start) position rotate platform to 90° clockwise (1/4) Table 2. - Page 12 “Backlight” - will turn on/off LCD backlight during running the program. It can be useful when shooting reflective objects. “Back to main” returns to the main menu.
-
Page 13: Appendix
Appendix Appendix. 1 Device menu structure.
