Condec UPS3000 Installation, Operation & Maintenance Manual

Portable & rack-mountable pneumatic pressure standards
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

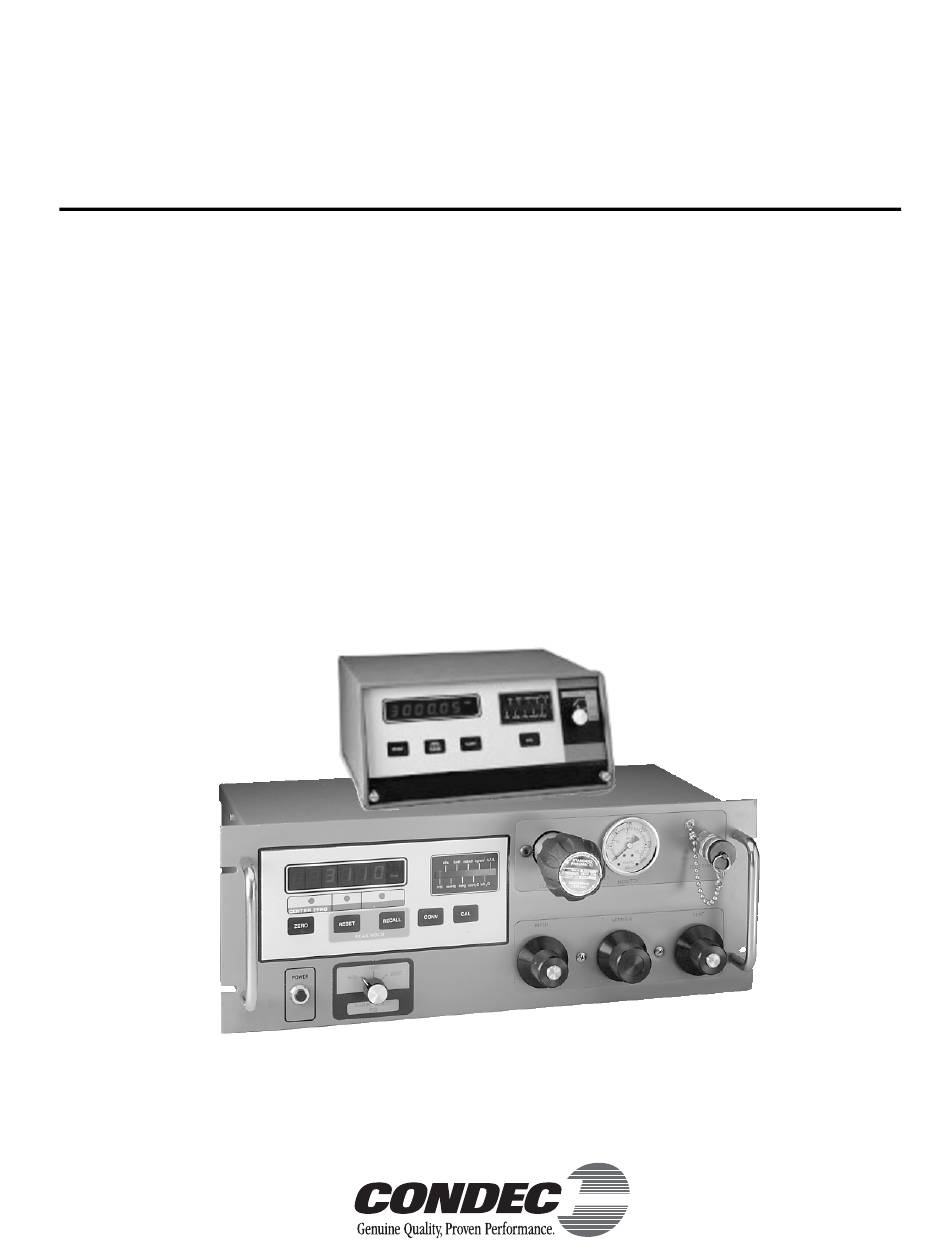

UPS3000, UPS3110 &
UPS3210
Portable & Rack-mountable Pneumatic Pressure Standards
Operation & Maintenance
Manual
CONDEC Sales Phone No.: (888) 295-8475
CONDEC Web Site: WWW.4CONDEC.COM
63253
