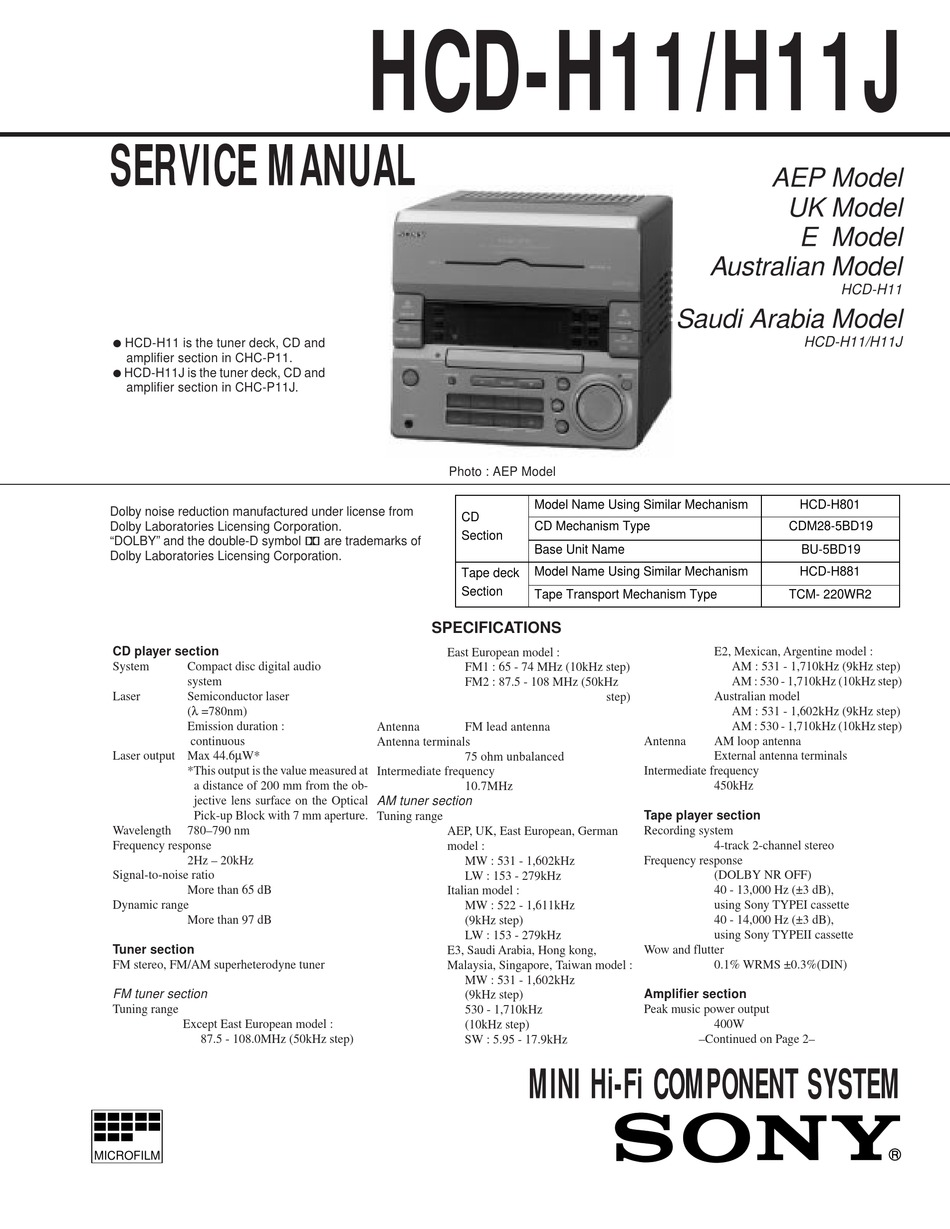

SERVICE MANUAL
HCD-H11 is the tuner deck, CD and
r
amplifier section in CHC-P11.
HCD-H11J is the tuner deck, CD and
r
amplifier section in CHC-P11J.
Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation.
"DOLBY" and the double-D symbol a are trademarks of
Dolby Laboratories Licensing Corporation.
CD player section
System
Compact disc digital audio
system
Laser
Semiconductor laser
(λ =780nm)
Emission duration :
continuous
Laser output Max 44.6µW*
*This output is the value measured at
a distance of 200 mm from the ob-
jective lens surface on the Optical
Pick-up Block with 7 mm aperture.
Wavelength
780–790 nm
Frequency response
2Hz – 20kHz
Signal-to-noise ratio
More than 65 dB
Dynamic range
More than 97 dB
Tuner section
FM stereo, FM/AM superheterodyne tuner
FM tuner section
Tuning range
Except East European model :
87.5 - 108.0MHz (50kHz step)
MICROFILM
HCD-H11/H11J
Photo : AEP Model
Model Name Using Similar Mechanism
CD
CD Mechanism Type
Section
Base Unit Name
Model Name Using Similar Mechanism
Tape deck
Section
Tape Transport Mechanism Type
SPECIFICATIONS
East European model :
FM1 : 65 - 74 MHz (10kHz step)
FM2 : 87.5 - 108 MHz (50kHz
Antenna
FM lead antenna
Antenna terminals
75 ohm unbalanced
Intermediate frequency
10.7MHz
AM tuner section
Tuning range
AEP, UK, East European, German
model :
MW : 531 - 1,602kHz
LW : 153 - 279kHz
Italian model :
MW : 522 - 1,611kHz
(9kHz step)
LW : 153 - 279kHz
E3, Saudi Arabia, Hong kong,
Malaysia, Singapore, Taiwan model :
MW : 531 - 1,602kHz
(9kHz step)
530 - 1,710kHz
(10kHz step)
SW : 5.95 - 17.9kHz
MINI Hi-Fi COMPONENT SYSTEM
AEP Model
Australian Model
Saudi Arabia Model
E2, Mexican, Argentine model :
AM : 531 - 1,710kHz (9kHz step)
AM : 530 - 1,710kHz (10kHz step)
step)
Australian model
AM : 531 - 1,602kHz (9kHz step)
AM : 530 - 1,710kHz (10kHz step)
Antenna
AM loop antenna
External antenna terminals
Intermediate frequency
450kHz
Tape player section
Recording system
4-track 2-channel stereo
Frequency response
(DOLBY NR OFF)
40 - 13,000 Hz (±3 dB),
using Sony TYPEI cassette
40 - 14,000 Hz (±3 dB),
using Sony TYPEII cassette
Wow and flutter
0.1% WRMS ±0.3%(DIN)
Amplifier section
Peak music power output
400W
–Continued on Page 2–
UK Model
E Model
HCD-H11
HCD-H11/H11J
HCD-H801
CDM28-5BD19
BU-5BD19
HCD-H881
TCM- 220WR2
