- Page 1 Wizard™ CMC Model 9000z Getting Started Manual FrameShop FrameShop™ 20-34304-1A...
- Page 2 This product and its documentation are protected by copyright and are distributed under license restricting its use, copying, distribution and decompilation. No part of this software product may be copied, reproduced or disassembled without written permission from Wizard International, Inc. and its licensors, if any.
-
Page 3: Table Of Contents
Hook up the Computer ....................12 Hook up Computer and Peripherals ..............12 Connect the ECU .....................13 Control Panel ........................15 Red Abort Button ....................15 Mat Clamp Pressure Knob ..................15 20-34304-1A GettingStartedManual9000zFrameShop Wizard™ CMC Model 9000z Hardware and Software Getting Started Guide 04/05/19... - Page 4 Wizard™ International, Inc., 4600 116th St. SW, Mukilteo, WA 98275 888/855-3335 Fax: 425/551-4350 wizardint.com Clamp Pressure Adjustment ..................15 Green Cut Button ....................15 Turn the System On ......................15 Power up the ECU ....................15 Boot the Computer ....................16 Design the First Mat .....................16 Edit New Mat ......................16...
-
Page 5: Check Contents
Wizard CMC Model 9000z Hardware and Software Getting Started Manual Check Contents Review equipment upon arrival for shipping damage. Contact Wizard if any damage is noticed. Verify that the contents shown in the packing slip are received. Please save the packaging. Equipment Required The CMC Stand must be assembled first before unpacking the Wizard™... -
Page 6: Cmc Parts

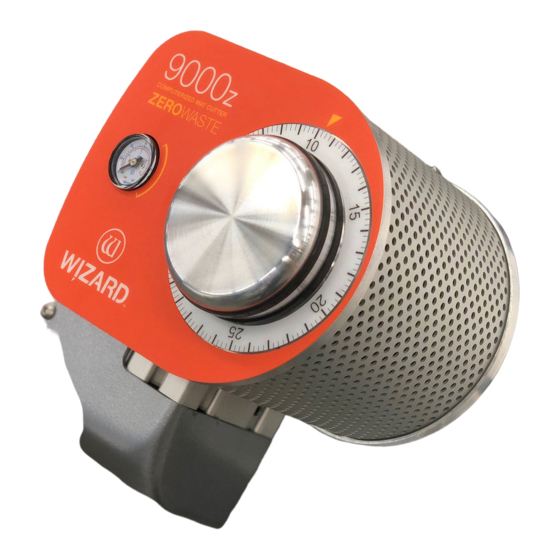

Wizard™ International, Inc., 4600 116th St. SW, Mukilteo, WA 98275 888/855-3335 Fax: 425/551-4350 wizardint.com CMC Parts Head Labeled Cartridges 45° 45°+ 52° 90° Deboss Deboss Deboss Thin Medium Wide ECU and Air Regulator Air Regulator 20-34304-1A GettingStartedManual9000zFrameShop Wizard™ CMC Model 9000z Hardware and Software Getting Started Guide... -
Page 7: Cmc Parts Labeled
G: Variable Pressure Optimization (VPO) knob P: Horizontal tension adjustment (upper rail) H: Vertical clamp Q: Control Panel I: Gantry R: ECU Brackets (attach to back of CMC) 20-34304-1A GettingStartedManual9000zFrameShop Wizard™ CMC Model 9000z Hardware and Software Getting Started Guide 04/05/19... -
Page 8: Setting Up The Cmc
Wizard™ International, Inc., 4600 116th St. SW, Mukilteo, WA 98275 888/855-3335 Fax: 425/551-4350 wizardint.com Setting up the CMC Congratulations on acquiring the Wizard™ computerized mat cutter (CMC). The following instructions will walk you through unpacking and setting up the CMC. -
Page 9: Check Squareness
Without moving the gantry, look at the lower drive belt of the gantry and make sure the red mark lines up on the lower drive belt and the toothed pulley. If they do not, call Wizard Technical Support. 20-34304-1A GettingStartedManual9000zFrameShop Wizard™... -
Page 10: Head Installation
Wizard™ International, Inc., 4600 116th St. SW, Mukilteo, WA 98275 888/855-3335 Fax: 425/551-4350 wizardint.com Head Installation Install the Head onto the Gantry 1. Remove the two 5/32” screws from the head and set aside. 2. Move the gantry to the right edge of the CMC. -
Page 11: Hooking Up The Gantry And Air Lines
20-34304-1A GettingStartedManual9000zFrameShop Wizard™ CMC Model 9000z Hardware and Software Getting Started Guide 04/05/19... -
Page 12: Hook Up The Computer
Wizard™ International, Inc., 4600 116th St. SW, Mukilteo, WA 98275 888/855-3335 Fax: 425/551-4350 wizardint.com 2. Follow the air line with the red connector from the top of the gantry. Connect it to the right side of the air regulator by inserting the red connector on the end and twisting it into place. -
Page 13: Connect The Ecu
2. Plug the other end of the USB cable into the USB port on the computer. If your system came with a USB hub, plug it in between the ECU and the computer. 20-34304-1A GettingStartedManual9000zFrameShop Wizard™ CMC Model 9000z Hardware and Software Getting Started Guide 04/05/19... - Page 14 Wizard™ International, Inc., 4600 116th St. SW, Mukilteo, WA 98275 888/855-3335 Fax: 425/551-4350 wizardint.com 3. Connect the power output cable to the back of the ECU. 4. Connect the ECU power supply to the surge protector. 5. Connect the DB9 cable to the ECU.
-
Page 15: Control Panel
Press the | on the rocker switch on the back of the ECU to turn on the ECU. *The ECU must be on for the CMC to cut. Press | on the rocker switch to turn it on.* 20-34304-1A GettingStartedManual9000zFrameShop Wizard™ CMC Model 9000z Hardware and Software Getting Started Guide 04/05/19... -
Page 16: Boot The Computer
Wizard™ International, Inc., 4600 116th St. SW, Mukilteo, WA 98275 888/855-3335 Fax: 425/551-4350 wizardint.com Boot the Computer Turn on the computer. Allow a minute or so for it to power up. Double-click on the FrameShop icon to start the software. - Page 17 Note: There are several pages of templates. Click on one of the numbered tabs to see a new page. 8. Click on new template thumbnail to select it. 9. The new template is displayed. 20-34304-1A GettingStartedManual9000zFrameShop Wizard™ CMC Model 9000z Hardware and Software Getting Started Guide 04/05/19...
-
Page 18: Go To Cut Preview To Cut The First Mat
Wizard™ International, Inc., 4600 116th St. SW, Mukilteo, WA 98275 888/855-3335 Fax: 425/551-4350 wizardint.com Layers 10. Select the number of layers desired for this project. Leave it at the default of 2 layers. Cartridge Selection 11. Click on the cartridge icon and select the desired cartridge for this layer. - Page 19 It can only be inserted one way. WARNING: Do not run the CMC without the blade cartridge in place or damage to the blade cartridge release lever could occur. 20-34304-1A GettingStartedManual9000zFrameShop Wizard™ CMC Model 9000z Hardware and Software Getting Started Guide 04/05/19...
- Page 20 Wizard™ International, Inc., 4600 116th St. SW, Mukilteo, WA 98275 888/855-3335 Fax: 425/551-4350 wizardint.com Put Matboard onto CMC *Make sure there are two layers of disposable slipsheets of adequate size underneath the matboard to be cut.* 1. The cut preview displays whether the current layer is to be cut from the front or from the back of the matboard.
-
Page 21: Align The Head When Motors Are Disengaged
3. It will stop against the Magnetic Stop. 4. Then slide the head down until the foot block rests against the head alignment stop. 5. Click on the Align the Head screen. 20-34304-1A GettingStartedManual9000zFrameShop Wizard™ CMC Model 9000z Hardware and Software Getting Started Guide 04/05/19... -
Page 22: Insert Blade Cartridge And Adjust Blade Depth
Wizard™ International, Inc., 4600 116th St. SW, Mukilteo, WA 98275 888/855-3335 Fax: 425/551-4350 wizardint.com 6. Head will align to the home position. Adjusting the Air Pressure for Denser Matboard See “Adjusting Clamps for Zero Waste” on page 21for more information. - Page 23 9. Place the matboard face down onto the CMC (facing away from the operator). Make sure the matboard nestles tightly under the horizontal and vertical clamps of the CMC. 20-34304-1A GettingStartedManual9000zFrameShop Wizard™ CMC Model 9000z Hardware and Software Getting Started Guide 04/05/19...
-
Page 24: Adjusting Clamps For Zero Waste
Wizard™ International, Inc., 4600 116th St. SW, Mukilteo, WA 98275 888/855-3335 Fax: 425/551-4350 wizardint.com Click Cut 10. Click the green cut button to cut the mat. 11. Because the motors are still engaged, the CMC will automatically begin to cut. -
Page 25: Mat Clamp Pressure
CMC will skip the following instructions “Insert Blade Cartridge and and proceed to Adjust Blade Depth” page 20-34304-1A GettingStartedManual9000zFrameShop Wizard™ CMC Model 9000z Hardware and Software Getting Started Guide 04/05/19... - Page 26 Wizard™ International, Inc., 4600 116th St. SW, Mukilteo, WA 98275 888/855-3335 Fax: 425/551-4350 wizardint.com 1. Select the desired layer on the Cut Preview. 2. Click the Blade Depth button to open the Blade Depth Screen. 3. Check/Uncheck the appropriate setting: •...
-
Page 27: Cutting An Extra Dense Layer With The 90° Cartridge
11. Click OK to cut the mat with this setting. 90° Cartridge See the Knowledge Base at http://info.wizardint.com/KB to find additional information on the 90° cartridge and changing the blades. 20-34304-1A GettingStartedManual9000zFrameShop Wizard™ CMC Model 9000z Hardware and Software Getting Started Guide 04/05/19... -
Page 28: Changing The Blade
Wizard™ International, Inc., 4600 116th St. SW, Mukilteo, WA 98275 888/855-3335 Fax: 425/551-4350 wizardint.com Changing the Blade Using the 45º Cartridge Changing the Blade The 45° metal cartridge is labeled 45 on the end and is black. 1. Push the blade cartridge release down to eject the blade cartridge. -
Page 29: Blades And Cartridges
Check the head wheels. See Head Wheel Adjustment at http://info.wizardint.com/KB. Check the blade depth - See “Blade Depth Settings” page 18 Blade Depth Adjustment on the Knowledge Base at http://info.wizardint.com/KB. 20-34304-1A GettingStartedManual9000zFrameShop Wizard™ CMC Model 9000z Hardware and Software Getting Started Guide 04/05/19... -
Page 30: Frequently Asked Questions
Click check for corners on the license screen. FrameShop will use the internet connection to download corners. If not connected to the internet, FrameShop can connect to Wizard via a modem. Q: My FrameShop keeps opening in demo mode and will not cut. What should I check? Make sure that the ECU is properly hooked up, plugged in and turned on. -
Page 31: Hardware Maintenance
The dial on the air regular should read 60psi when the air source is on and at full pressure. If it does not read 60psi on the gauge, call technical support. 20-34304-1A GettingStartedManual9000zFrameShop Wizard™ CMC Model 9000z Hardware and Software Getting Started Guide 04/05/19... -
Page 32: Disclaimers
TrueType is a registered trademark of Apple Computer, Inc. Wizard™, MatDesigner™, FrameShop™,Virtual Gallery®, SwitchBlade Technology™, the Wizard logo, MatDesigner logo, FrameShop logo and Integrated Framer logo are trademarks or registered trademarks of Wizard International, Inc. in the United States and/or other countries.
Need help?
Do you have a question about the CMC 9000z and is the answer not in the manual?
Questions and answers
What does the Ferrite tube do?
The Ferrite tube in the Wizard CMC 9000z is used to reduce electromagnetic interference (EMI) in the ECU power supply output cable. It works by suppressing high-frequency noise in the cable, improving the stability and performance of the system. The setup instructions specify winding the cable around the inside of the Ferrite three times before closing it.
This answer is automatically generated

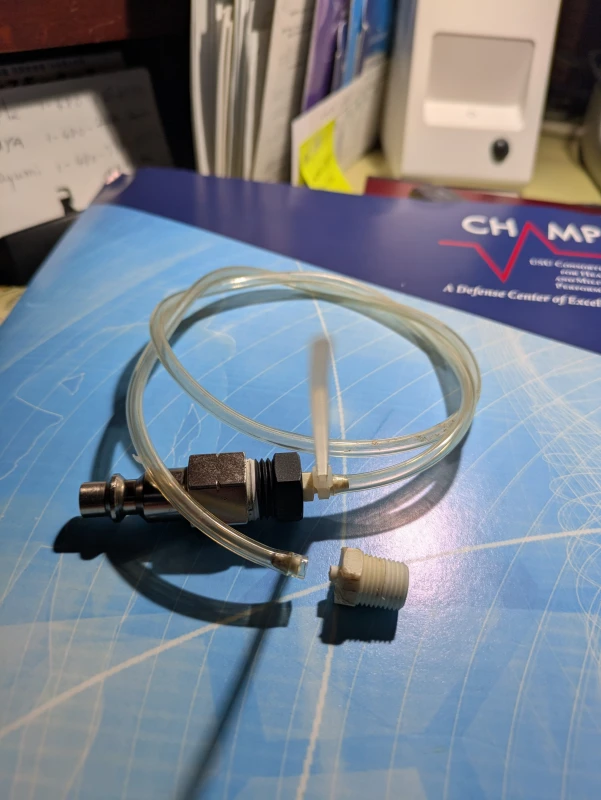

I have the 9000z and would like to order the tubing assembly connecting the system regulator to the compressor. It is so short and that and my moving the compressor is what caused the broken fitting. Our 9000z was ordered and shipped from the Seattle plant. Therefore the Seattle plant should be able to help us.
