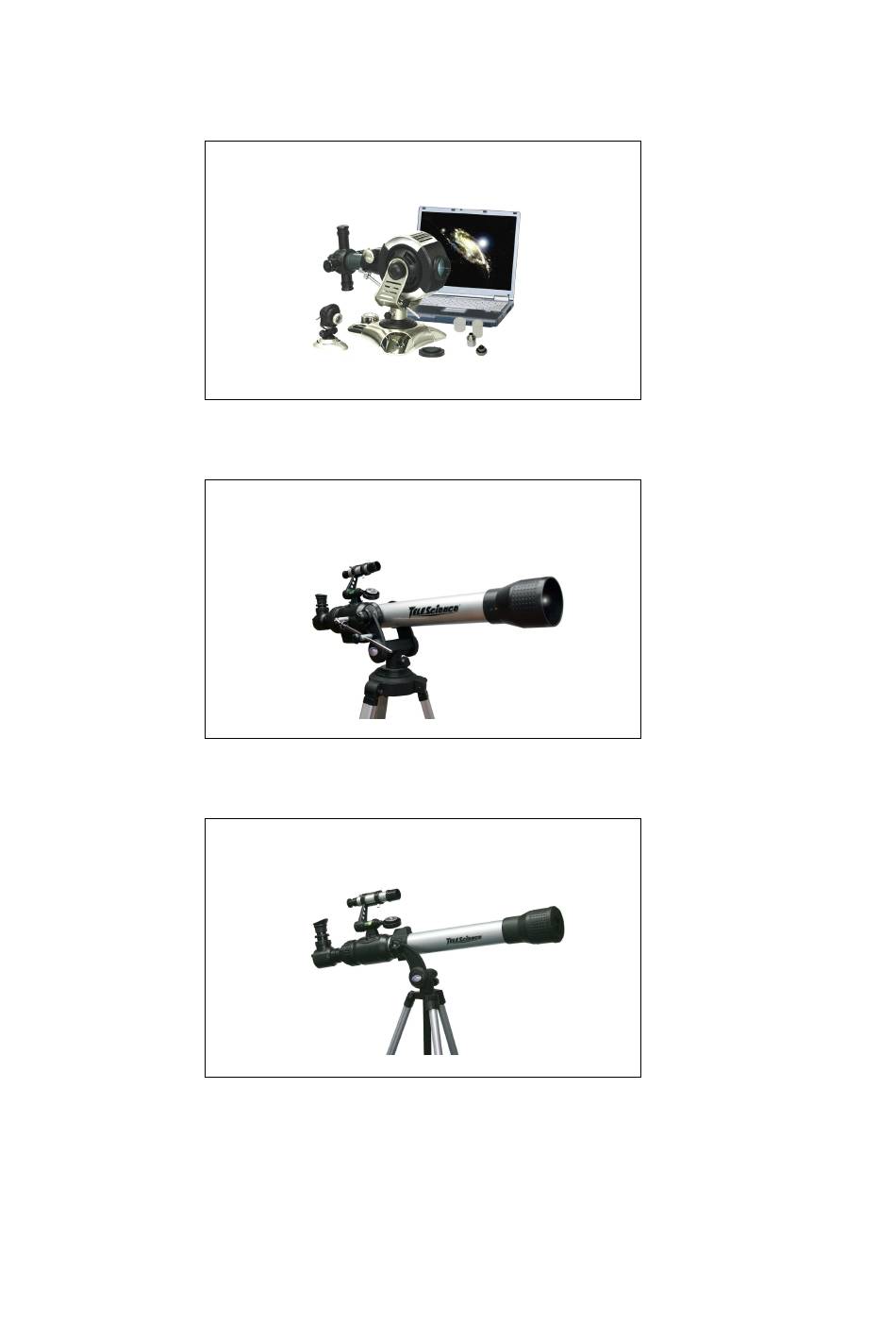

- Page 1 Select by clicking the manual to view: 9920 Manual 9940, 9950 Manual 3069, 30699 Manual...
- Page 2 THIS TELESCOPE SET IS APPROPRIATE FOR CHILDREN OVER 8 YEARS OLD. OTHERWISE, SUPERVISION OF AN ADULT IS REQUIRED. CAUTION! DO NOT VIEW SUN THROUGH TELESCOPE AS SERIOUS INJURY TO EYE MAY RESUT. Copyright © 2004 Eastcolight (Hong Kong) Ltd. All rights reserved.
- Page 3 Parent Quick Start Guide (9920) installation. While the E-Telescope is easy to install and use, the initial hardware and Install the ArcSoft camera suite by clicking “Install PhotoImpression” by an adult software setup must be done . Please follow the and “Install VideoImpression”...
- Page 4 Note: Package contents: For the location of the USB ports on your computer, please refer to your Telescope computer’s user manual. To ensure that the digital telescope works normally, do Digital Eyepiece (with lens, USB cable and stand) not connect or disconnect the USB cable from the computer while system is Digital Eyepiece adaptor lens starting up or shutting down.
- Page 5 If you have been using the digital eyepiece module as a web camera, unscrew the objective lens unit from the camera (figure 2). Figure 4 Make sure the digital eyepiece is connected to the USB port of the computer. Start “PhotoImpression” program from the Windows Start menu. The Figure 2 application will start with the “Get Photo”...
- Page 6 Set the image size to 640x480 in A window “Capture Image from Video” will pop up, select “USB 2.0 Camera” the properties window by clicking from the “Drivers” list. the “Format” button, smaller image size (e.g. 352x288) is recommended slower computers.
- Page 7 Using the Telescope in non-Digital Mode: Focus: Adjust the focus ring until the image on the computer screen looks clear. Focusing may take a little practice. Try making small changes and waiting Flip the diagonal mirror lever upwards and look through the eyepiece from for the screen to catch up.
- Page 8 Power is calculated by dividing the focal length of your telescope's objective lens Start “PhotoImpression” or other Imaging applications from the Windows (probably indicated on the focus tube) by the focal length of the eye lens you Start menu. select. The focal length of the eye lens is usually indicated on the eyepiece itself. Adjust the focus by rotating the lens until a clear image is displayed.
- Page 9 INSTRUCTION MANUAL ROFESSIONAL IGITAL ELESCOPE Copyright © 2005 Eastcolight (Hong Kong) Ltd. All rights reserved. M101...
- Page 10 Parent Quick Start Guide (9940,9950) installation. While Professional Digital Telescope is easy to install and use, the initial Install the ArcSoft camera suite by clicking “Install PhotoImpression” by an adult hardware and software setup must be done . Please follow and “Install VideoImpression”...
- Page 11 Note: Package contents: For the location of the USB ports on your computer, please refer to your Telescope computer’s user manual. To ensure that the digital telescope works normally, do Digital Eyepiece (with lens, USB cable and stand) not connect or disconnect the USB cable from the computer while system is Digital Eyepiece 100x zoom adaptor lens starting up or shutting down.
- Page 12 If you have been using the digital eyepiece module as a web camera, Insert the digital eyepiece to the telescope as shown in figure 4. unscrew the objective lens unit from the camera (figure 2). Figure 4 Figure 2 Make sure the digital eyepiece is connected to the USB port of the computer.
- Page 13 A window “Capture Image from Video” will pop up, select “USB 2.0 Camera” Set the image size to 640x480 in from the “Drivers” list. the properties window by clicking the “Format” button, smaller image size (e.g. 352x288) is recommended slower computers.
- Page 14 Focus: adjustment key to get precise focus. There are two focusing mode : Manual and Remote (Note: Remote mode is available . To select manual mode, turn the Focus Mode Switch to only in model 9940, 9950) “Manual” (Figure 5), and adjust the focus ring until the image on the computer screen looks clear.
- Page 15 Using the Telescope in non-Digital Mode: Image Capture: Press the “Capture” button to capture the current image. Press “Done” to exit the Remove the digital eyepiece and attach the diagonal mirror and eyepiece to “Capture” window. the focus tube. (figure 9). The captured image will appear in the main working area, select the “Enhance”...
- Page 16 select. The focal length of the eye lens is usually indicated on the eyepiece itself. To use the camera module as a web camera for video conference, you need to install applications like “Netmeeting” or “MSN Messenger”, which can be downloaded from Microsoft’s web site.
-
Page 17: Technical Specifications
Technical Specifications: The Remote Focus Control Unit requires two AAA size batteries. Replace the battery when the reception is poor. Unscrew the battery door on the back of the unit and insert the batteries according to the polarity mark (Figure 12). Image Sensor: 1/4.5 inch color CMOS (310k effective pixels) Color:... - Page 18 How to Care For Your Telescope Appropriate care of the telescope will allow many years of pleasant viewing enjoyment. Astronomical Terrestrial Telescope The Objective Lens The objective lens of Telescope has been intensely polished and established to minute tolerances. It must be cleaned with care and as seldom as possible to avoid affecting its precision and performance.
- Page 19 STEP 6 • Insert Diagonal Mirror (4) into the Focusing Tube (3). • Now insert Eyepiece (6) into Diagonal Mirror. STEP 7 • Place the telescope tube assembly and the Yoke onto the tripod mount and tighten from the underside with the small locking knob provided. (Figure 2c) Insert a brass stud into the screw hole before tightening the Azimuth Locking Knob(18).
- Page 20 How To Use the Telescope Important Note : The finderscope function is for viewing of the sky only, therefore, the object will always be upside down. Our telescope offers an extensive selection parts and accessories for your telescope to further enhance the exploration of worlds beyond.
- Page 21 INSTRUCTION MANUAL ENERATION STRONOMICAL ERRESTRIAL ELESCOPE Copyright © 2005 Eastcolight (Hong Kong) Ltd. All rights reserved. M100...
- Page 22 Parent Quick Start Guide (3069, 30699) installation. While Professional Digital Telescope is easy to install and use, the initial Install the ArcSoft camera suite by clicking “Install PhotoImpression” by an adult hardware and software setup must be done . Please follow and “Install VideoImpression”...
- Page 23 Note: Package contents: For the location of the USB ports on your computer, please refer to your Telescope computer’s user manual. To ensure that the digital telescope works normally, do Digital Eyepiece (with lens, USB cable and stand) not connect or disconnect the USB cable from the computer while system is Digital Eyepiece adaptor lens starting up or shutting down.
- Page 24 If you have been using the digital eyepiece module as a web camera, Insert the digital eyepiece to the telescope as shown in figure 4. unscrew the objective lens unit from the camera (figure 2). Figure 4 Make sure the digital eyepiece is connected to the USB port of the computer.
- Page 25 A window “Capture Image from Video” will pop up, select “USB 2.0 Camera” Set the image size to 640x480 in from the “Drivers” list. the properties window by clicking the “Format” button, smaller image size (e.g. 352x288) is recommended slower computers.
- Page 26 Using the Telescope in non-Digital Mode: Focus: Adjust the focus ring until the image on the computer screen looks clear. Focusing may take a little practice. Try making small changes and waiting Remove the digital eyepiece and attach the diagonal mirror and eyepiece to for the screen to catch up.
- Page 27 downloaded from Microsoft’s web site. Please refer to the corresponding 600mm (focal length of objectives lens) application manual. Example: = 30X (power) 20mm (focal length of eyepiece) Handling note: The longer the focal length of the eyepiece, the less the magnifying power of the telescope;...
- Page 28 Item Number: 3069, 30699 How to Care For Your Telescope Appropriate care of the telescope will allow many years of pleasant viewing enjoyment. Astronomical Terrestrial Telescope The Objective Lens ® The objective lens of Tele-Science Telescope has been intensely polished and established to minute tolerances.
- Page 29 STEP 5 Viewing Terrestrial Objects Through Your Telescope • Take out the finderscope (14), including the Finderscope Bracket (15) attached, from the For viewing of terrestrial objects, remove the Diagonal Mirror (3) and the Eyepiece (1) from the box. Focusing Tube (4) and insert the Erecting Eyepiece (19). The Erecting Eyepiece (19) can also •...
- Page 30 To align the finderscope follow these simple directions: The longer the focal length of the eyepiece, the less the magnifying power of the telescope. (Note : We strongly recommend that you follow these directions during daylight hours). Whereas the shorter the focal length, the greater the power. Therefore, when choosing an eye lens to insert the diagonal prism, you are actually selecting what magnifying power you wish to Install the lowest power eye lens into the diagonal mirror.
