Summary of Contents for Canoga Perkins EdgeAccess UCS 1000

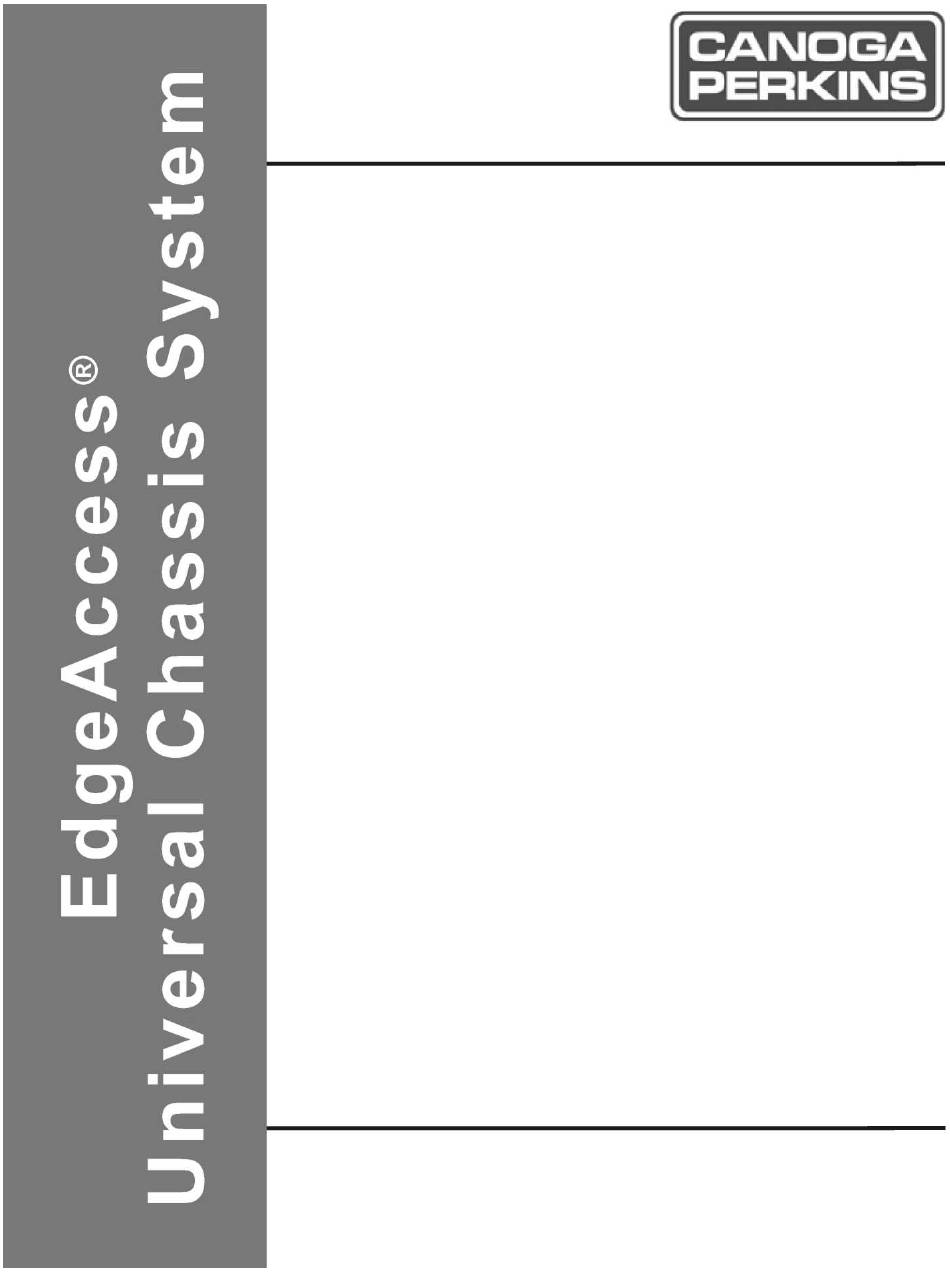

  • Page 1 Universal Chassis System UCS 1000 User Manual...
  • Page 3 EdgeAccess Universal Chassis System CAUTION! This product may contain a laser diode operating at a wavelength of 1300nm - 1600nm. Use of optical instruments (e.g., collimating optics) with this product may increase eye hazard. Use of controls or adjustments, or performing procedures other than those specified herein may result in hazardous radiation exposure.
  • Page 4 Perkins and any unauthorized use or disclosure of such drawings, specifications and information is prohibited. Canoga Perkins reserves the right to change or update the contents of this manual and to change the specifications of its products at any time without prior notification. Every effort has been made to keep the information in this document current and accurate as of the date of publication or revision.
  • Page 5: Table Of Contents

    EdgeAccess Universal Chassis System Table of Contents Chapter 1 Introduction ................... 1-1 Chapter 2 Installing and Setting Up the Chassis..........2-1 Chapter 3 Specifications ..................3-1 Physical Specifications ........................3-1 Regulatory Compliance ........................3-2 Appendix A Limited Warranty................A-1 List of Figures Figure 1.
  • Page 6 EdgeAccess Universal Chassis System UCS 1000...
  • Page 7: Chapter 1 Introduction

    EdgeAccess Universal Chassis System Chapter 1 Introduction The Model 1000 Universal Chassis System (UCS) Chassis houses and supplies power to Canoga Perkins application modules. It accommodates modules that are 5U high and the Bus Access Modules (BAMs) or Management Access Modules (MAMs) that house and supply power to application modules that are 2U high.
  • Page 8: Table 1. Power Supply(S) And Maximum Number Of Modules

    EdgeAccess Universal Chassis System Table 1. Power Supply(s) and Maximum Number of Modules AC Power DC Power Allows This Supplies Supplies Many Modules None 1 or 2 None None By itself, the chassis cannot generate a power failure alarm. If you install a CIM, which includes alarm circuitry and connectors, you can connect an external device to the CIM in order to provide alarm information to a person or an environment away from the chassis.
  • Page 9: Chapter 2 Installing And Setting Up The Chassis

    The mounting hardware for the rack, if the rack is tied to Earth Ground • Place the chassis adjacent to other Canoga Perkins or related equipment. • Allow room for the cable management bracket(s) that channel the cables, allowing slack in the cables and providing a surface for securing with a tie-wrap.
  • Page 10: Figure 3. Mounting Bracket On Chassis

    EdgeAccess Universal Chassis System 4. To connect Earth Ground to the bonding lug on the rear of the chassis, near the bottom, move the chassis adjacent to the installation area, then plug the Earth Ground wire into the bonding lug. 5.
  • Page 11: Figure 4. Chassis Backplane And Sw1, Id Switch

    EdgeAccess Universal Chassis System Figure 4. Chassis Backplane and SW1, ID Switch Table 2. SW1, Chassis ID Switch Chassis ID CID0 CID1 CID2 Closed Closed Closed Open Closed Closed Closed Open Closed Open Open Closed Closed Closed Open Open Closed Open Closed Open...
  • Page 12: Figure 4. Dc Power Supply Detail

    EdgeAccess Universal Chassis System If the chassis uses DC power, it requires a bracket in the end slot at the right side of the chassis. Install the primary DC supply in the top slot in the bracket and a redundant DC supply in the lower slot in the bracket.
  • Page 13: Table 3. Power Supply Leds

    EdgeAccess Universal Chassis System Table 3. Power Supply LEDs Color Description DC Power Off No power Amber Soft start delay Green Normal operation AC Power Off No power Green Normal operation The chassis is ready for installing the system modules. All modules are hot-swappable and can be inserted or removed at any time without affecting other modules in the chassis.
  • Page 14 EdgeAccess Universal Chassis System UCS 1000...
  • Page 15: Chapter 3 Specifications

    EdgeAccess Universal Chassis System Chapter 3 Specifications Physical Specifications Dimensions Chassis 8.75" H x 19" W x 11.75" D (222 mm x 482 mm x 264 mm) AC Power Supply 8.5" H x 1.7" W x 11.5" D (216 mm x 43 mm x 292 mm) Weight Chassis, unpopulated 12 lb.
  • Page 16: Regulatory Compliance

    EdgeAccess Universal Chassis System Regulatory Compliance • ETL, cETL (UL 60950/CAN/CSA-C22.2 No.60950, EN/IEC 60950) IEC 60825-1 • FCC Part 15B/IC-003/VCCI Class A • C-Tick (AS/NZS 3548) • EN 55022 Class A • EN 61000-3-2, EN 61000-3-3 • EN 50024 • FCC Part 68/IC CS-03/TS-016 •...
  • Page 17: Appendix A Limited Warranty

    Limited Warranty Limited Lifetime Warranty Effective July 1, 2005 and After, Canoga Perkins warrants that, at the time of sale, and, for its lifetime, with certain exceptions noted below, every Canoga Perkins' labeled product purchased will be free from defects in material and workmanship for its lifetime, if properly installed and used in conformity to Canoga Perkins' published specifications.
  • Page 18 EdgeAccess Universal Chassis System Limitations Canoga Perkins may at its sole discretion modify its Limited Warranty at any time and from time to time. Other than those expressly stated herein, THERE ARE NO OTHER WARRANTIES OF ANY KIND, EXPRESSED OR IMPLIED, AND SPECIFICALLY EXCLUDED BUT NOT BY WAY OF LIMITATION, ARE THE IMPLIED WARRANTIES FOR FITNESS FOR A PARTICULAR PURPOSE AND MERCHANTABILITY.
  • Page 20 CANOGA PERKINS CORPORATION 20600 Prairie Street Chatsworth, California 91311-6008 USA Phone: (818) 718-6300 FAX: (818) 718-6312 Web Site: www.canoga.com Email: fiber@canoga.com...
