SAFE FLIGHT SCc Quick Reference Manual

Leading edge aoa
Hide thumbs
1
2
3
4
Table of Contents

Advertisement

Quick Links

Download this manual
NOTE: If system calibration is required, the red LED on the high side
of the display will blink slowly to signal that calibration is required.
Do not use SCc until a system calibration is completed per 56201-1.
Normal Climb Out
Rev A

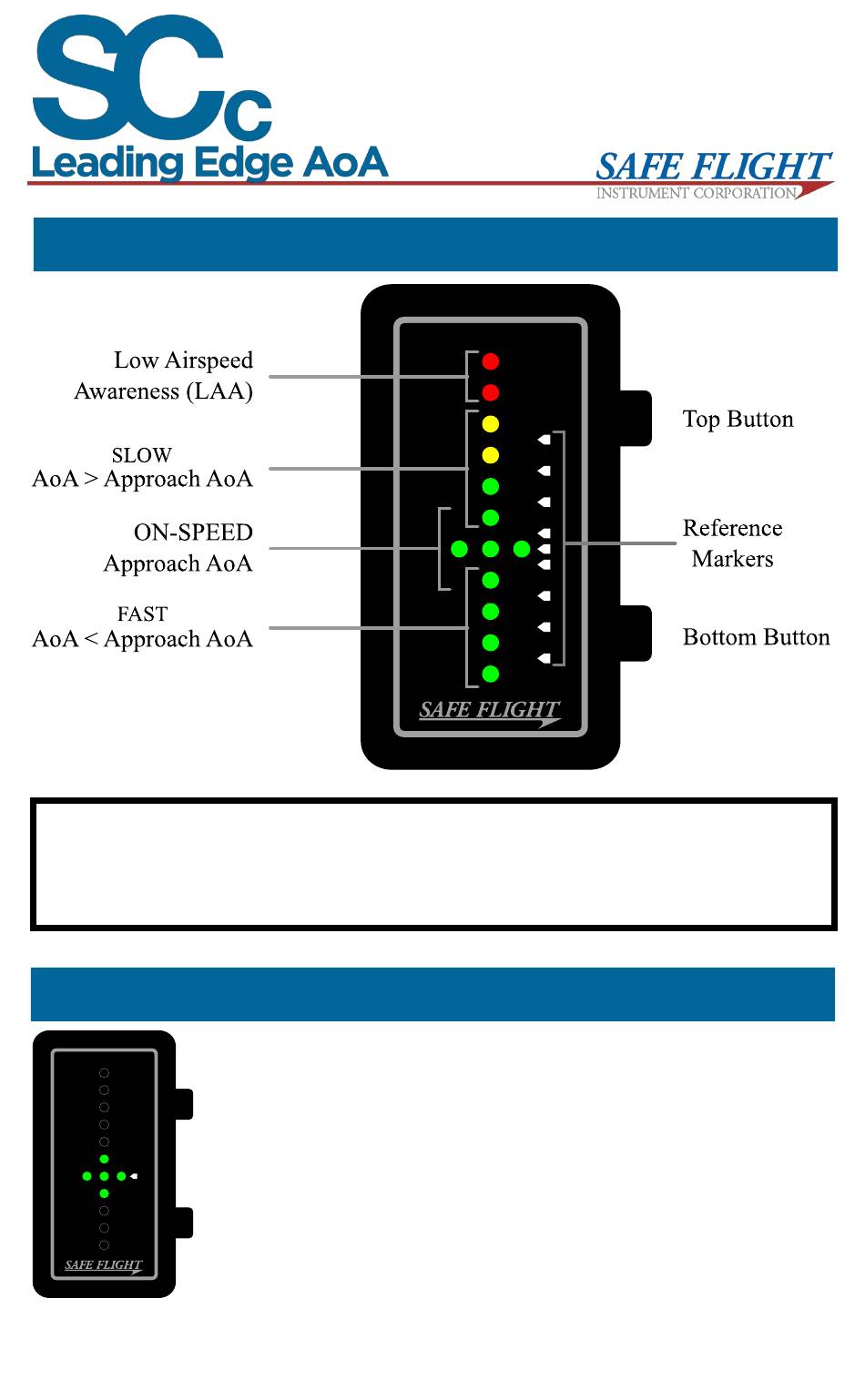

SYSTEM OVERVIEW

TAKEOFF

NORMAL - Set the Reference Marker at the center
marker, adjacent to the three-dot center green indication.
Fly the aircraft at the AFM/POH listed airspeed for the
Normal Takeoff. After rotation, climb out using airspeed
as the primary indication. The Indexer Computer will
have the output shown.
Quick Reference Guide
56202-1
Page 1 of 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCc and is the answer not in the manual?

Questions and answers

Summary of Contents for SAFE FLIGHT SCc

  • Page 1 NOTE: If system calibration is required, the red LED on the high side of the display will blink slowly to signal that calibration is required. Do not use SCc until a system calibration is completed per 56201-1. TAKEOFF NORMAL - Set the Reference Marker at the center marker, adjacent to the three-dot center green indication.
  • Page 2 NOTE: This example is not for any particular aircraft make/model and is only given as an illustration. Consult the aircraft AFM/POH for the required speed (AoA) bias to be applied to the SCc for your aircraft. LONG RANGE CRUISE - The AoA reference may be adjusted by the pilot to give a reference that takes the headwind/tailwind component into consideration for maximum range flight.
  • Page 3 Quick Reference Guide 56202-1 MAXIMUM ENDURANCE - Fly the aircraft at the speed and attitude consistent with minimum fuel flow. Set the Reference Marker for the indicated airspeed at the AFM/POH specified airspeed. This indication will be constant for the Maximum Endurance AoA as the aircraft burns fuel.
  • Page 4 Bottom Button: Moves Reference Marker down. * Holding for 2 seconds, dims or brightens the display. NOTE: The SCc AoA System is not meant to replace the aircraft’s primary stall warning. The red flashing LEDs and the audio output are meant to provide a high-AoA warning which is intended to increase awareness.
