Sutter Instrument Lambda HPX-L5 Operation Manual

High-power led light source system (air cooled with liquid light guide)
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Lambda HPX-L5
High-Power LED Light Source System
(Air Cooled with Liquid Light Guide)
Operation Manual
Rev. 1.03 ((20161130)
One Digital Drive
Novato, CA 94949
Voice: 415-883-0128 Web: www.sutter.com
Fax:
415-883-0572 Email: info@sutter.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lambda HPX-L5 and is the answer not in the manual?

Questions and answers

Related Manuals for Sutter Instrument Lambda HPX-L5

Summary of Contents for Sutter Instrument Lambda HPX-L5

  • Page 1 Lambda HPX-L5 High-Power LED Light Source System (Air Cooled with Liquid Light Guide) Operation Manual Rev. 1.03 ((20161130) One Digital Drive Novato, CA 94949 Voice: 415-883-0128 Web: www.sutter.com Fax: 415-883-0572 Email: info@sutter.com...
  • Page 2 Copyright © 2016 Sutter Instrument Company. All Rights Reserved. LAMBDA HPX-L5 OPERATION MANUAL – REV. 1.03 (20161130)

  • Page 5: Disclaimer

    DISCLAIMER The Lambda HPX-L5 is a high-power LED illumination or light source device. The purpose of the system is to be an illuminator for microscopes. No other use is recommended. This instrument is designed for use in a laboratory environment. It is not intended, nor should it be used in human experimentation or applied to humans in any way.

  • Page 6: Avoiding Physical Injury While Powered Up And Emitting Light

    Other Retain the original packaging for future transport of the instrument. Sutter Instrument reserves the right to change specifications without prior notice. This device is intended only for research purposes. LAMBDA HPX-L5 OPERATION MANUAL – REV. 1.03 (20161130)

  • Page 7: Table Of Contents

    3.3.3 TTL-IN BNC Connector......................17 3.3.4 TTL-OUT BNC Connector .....................17 3.4 Fault Conditions ..........................17 4. MAINTENANCE..........................19 4.1 Routine Maintenance ........................19 APPENDIX A. LIMITED WARRANTY....................21 APPENDIX B. ACCESSORIES......................23 4.3 High-Power LED Assemblies ......................23 4.4 Microscope Adapters........................23 LAMBDA HPX-L5 OPERATION MANUAL – REV. 1.03 (20161130)
  • Page 8 Figure 3-1. Locations of individual indicators, controls, and connectors on the Lambda HPX-L5 controller..........................15 Figure 3-2. Status display........................15 Figure 4-1. Power entry module and fuse location on the rear panel of the Lambda HPX-L5 controller..........................25 LAMBDA HPX-L5 OPERATION MANUAL – REV. 1.03 (20161130)

  • Page 9: Introduction

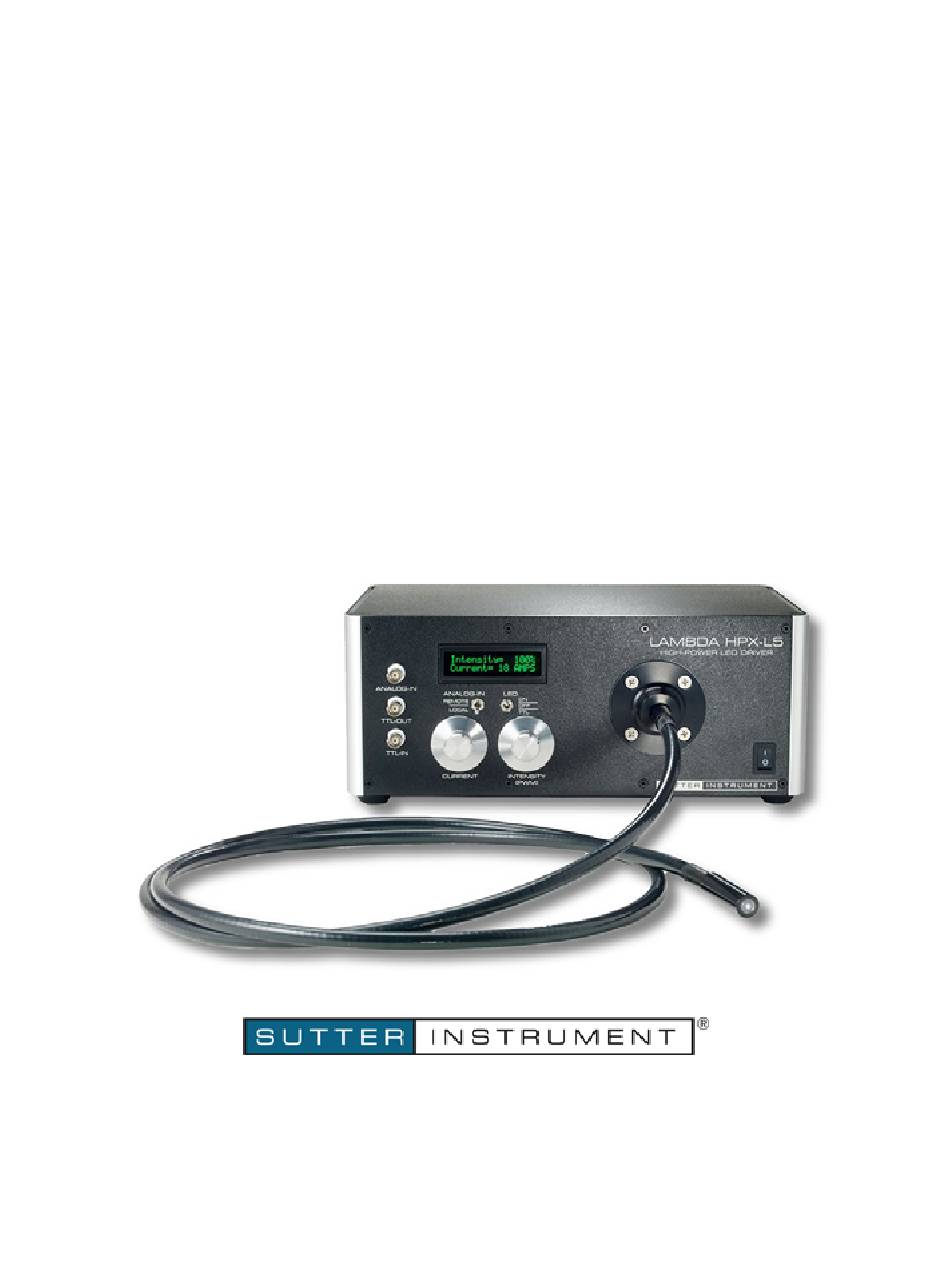

    1.2 Description Figure 1-1. Lambda HPX-L5 indicators, controls, and connectors. The Lambda HPX-L5 is liquid light guide coupled version of the Lambda HPX high-output LED light source (illuminator). The liquid light guide allows for LED cooling via an internal heatsink with a whisper fan, thus requiring less maintenance than the liquid-cooled direct- mount version.

  • Page 10: Technical Support

    The Lambda HPX-L5 is optimized for coupling to an optional 5mm liquid light guide, and off- the-shelf microscope adapter. The HPX is expected to retain 95% of its original output at 5,000 hours, and 80% after 10,000 hours. Because LEDs exhibit color shift with current change, the Lambda HPX was designed to dim the LED using either PWM (Pulse Width Modulation) or current control.

  • Page 11: Installation

    2. Plug power cable into the mains outlet. 3. In the typical application, the collimated light output of the Lambda HPX-L5 is focused onto the input end of a liquid light guide. The lamp’s integral cold mirror allows the beam to be focused without danger to the light guide.

  • Page 12: Figure 2-1. Liquid Light Guide Installation

    4. The Analog-IN and/or TTL-IN connections can be made to an external signaling source at stage if desired. Once all connections have been verified, the system is ready to be turned on. LAMBDA HPX-L5 OPERATION MANUAL – REV. 1.03 (20161130)

  • Page 13: Configuring Input And Output Ttl Logic

    Figure 2-2. Lambda HPX-series left-side panel removed for access to configuration DIP switches. While viewing the left side of the cabinet, the location of the DIP switch bank on the vertically-mounted control board as shown in the following figure. LAMBDA HPX-L5 OPERATION MANUAL – REV. 1.03 (20161130)

  • Page 14: Ttl In To Ttl Out Logic (Switch 1)

    Note that because the OFF position of the LED switch is located in between ON and TTL, the lamp turns off while traversing the OFF position when switching from ON to TTL. LAMBDA HPX-L5 OPERATION MANUAL – REV. 1.03 (20161130)

  • Page 15: Firmware And Lambda Hpx Model (Switch 4)

    2.3.4 Firmware and Lambda HPX Model (Switch 4) The position of DIP Switch 4 informs the control board’s firmware of the specific Lambda HPX model it is controlling. This witch must be ON (Lambda HPX-L5 ( air-cooled lamp with liquid light guide)).
  • Page 16 (This page intentionally blank.) LAMBDA HPX-L5 OPERATION MANUAL – REV. 1.03 (20161130)

  • Page 17: Operations

    3. OPERATIONS This chapter describes the operation of the Lambda HPX-L5. The locations of the individual indicators, controls, and connectors are indicated in the following figure. Figure 3-1. Locations of individual indicators, controls, and connectors on the Lambda HPX-L5 controller.

  • Page 18: Led Control Switch

    Note that the CURRENT knob is functional regardless of the positions of the LED and ANALOG-IN switches, and manual or external state of intensity via PWM (manually adjusting INTENSITY (PWM) knob or applying 0-5 VDC on ANALOG-IN input). LAMBDA HPX-L5 OPERATION MANUAL – REV. 1.03 (20161130)

  • Page 19: Connectors

    LED is on, TTL-OUT is held low the duration that the LED is on. 3.4 Fault Conditions The Lambda HPX-L5 is equipped with a temperature monitor to maximize the life of the LED. Should a fault occur, the screen turns red and the lamp is automatically turned off. If the screen turns red, and the text is unchanged, the LED temperature has exceeded its safe operating temperature.
  • Page 20 (This page intentionally blank.) LAMBDA HPX-L5 OPERATION MANUAL – REV. 1.03 (20161130)

  • Page 21: Maintenance

    4. MAINTENANCE 4.1 Routine Maintenance Routine cleaning of the Lambda HPX-L5 system is required to prevent excessive dust accumulations. Wipe all exterior surfaces with a dry, soft, cotton cloth. Periodically inspect all cables ensuring that all connections are made well and connectors are evenly seated.
  • Page 22 (This page intentionally blank.) LAMBDA HPX-L5 OPERATION MANUAL – REV. 1.03 (20161130)

  • Page 23: Appendix A. Limited Warranty

    Warranty work will be performed only at the factory. The cost of shipment both ways is paid for by Sutter Instrument during the first three months this warranty is in effect, after which the cost is the responsibility of the customer.
  • Page 24 (This page intentionally blank.) LAMBDA HPX-L5 OPERATION MANUAL – REV. 1.03 (20161130)

  • Page 25: Appendix B. Accessories

    Liquid light guide adaptors for various microscopes are available. Please contact Sutter Instrument for more information. 4.5 TTL Triggering A USB-controlled trigger box is available for TTL control of the Lambda HPX series. Please contact Sutter Instrument for more information. LAMBDA HPX-L5 OPERATION MANUAL – REV. 1.03 (20161130)
  • Page 26 (This page intentionally blank.) LAMBDA HPX-L5 OPERATION MANUAL – REV. 1.03 (20161130)

  • Page 27: Appendix C. Fuse Replacement

    Figure 4-1. Power entry module and fuse location on the rear panel of the Lambda HPX-L5 controller. The fuse holder holds two fuses. Both fuses are of the same type and rating. If either fuse is blown, it is recommended that both fuses be replaced.
  • Page 28 (This page intentionally blank.) LAMBDA HPX-L5 OPERATION MANUAL – REV. 1.03 (20161130)

  • Page 29: Appendix D. Technical Specifications

    Dimming: PWM or Current Control LED Wavelength: Cool white Optional LEDs: 630, 530, 460, and 405 nm Electrical: Input (Mains ) 100 - 240 VAC, 50/60 Hz . Maximum power consumption: 150W LAMBDA HPX-L5 OPERATION MANUAL – REV. 1.03 (20161130)

  • Page 30: Controller

    Head (attaches to scope) 2.5 x 3 in (64 x 76 x 127 mm) Length of cabling between Head and Control Box 4 ft (1.2 m) Weight Controller 8.8 lb (4 kg) LAMBDA HPX-L5 OPERATION MANUAL – REV. 1.03 (20161130)

  • Page 31: Index

    28 on/off times............27 fuses, replacement operations.............. 15 mains..............3 connectors ............17 ANALOG-IN BNC........17 liquid light guide........... 17 indicators............... 15 TTL-IN BNC..........17 status display............. 15 TTL-OUT BNC..........17 input LAMBDA HPX-L5 OPERATION MANUAL – REV. 1.03 (20161130)
  • Page 32 PWM frequency ............ 27 mains..............28 warranty..............21 safety warnings............3 electrical..............3 wavelength ............27 safety warnings & precautions weight operational............4 controller ............29 safety warnings & precautions......3, 4 weight ..............28 shuttering.............. 27 NOTES LAMBDA HPX-L5 OPERATION MANUAL – REV. 1.03 (20161130)
