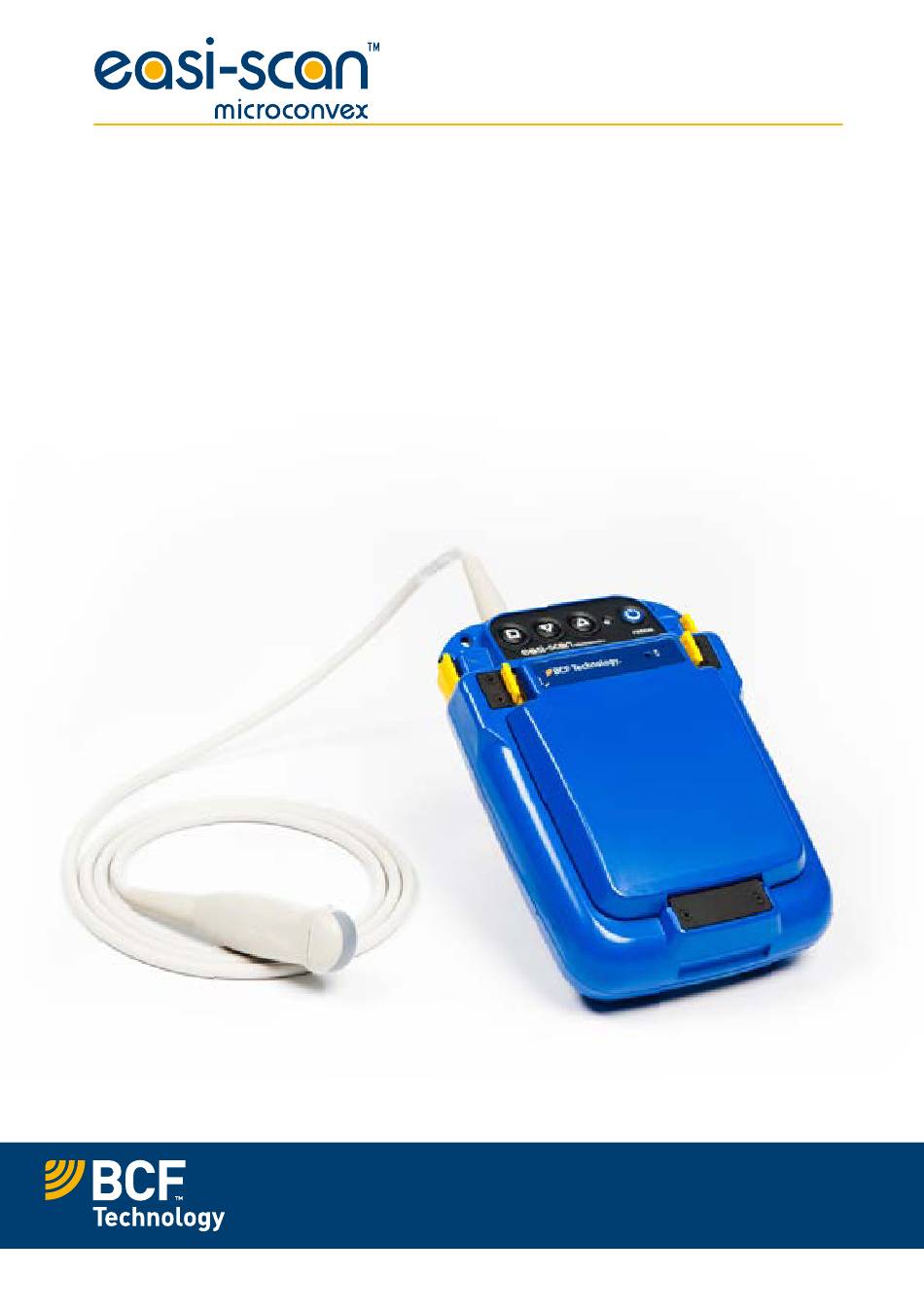

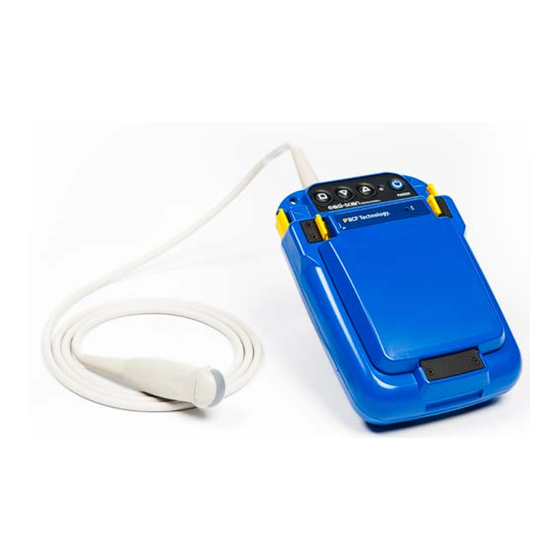

- Page 1 Instruction manual Your animal imaging partner...
-
Page 2: Table Of Contents
Operator safety 1 Operating instructions 1.1 Preliminary switch on 1.2 Power 1.3 Scanning 1.4 Scanner setup 1.5 Smart Display 2 Care & maintenance 2.1 Easi-Scan & power packs 2.2 Battery charging 2.3 Easi-Scan Micro-Convex probe Technical specification Accessories Service centres... -
Page 3: Introduction
Our engineers and their appointed agents are available to provide rapid service assistance to ensure optimum performance of BCF systems. The Easi-Scan Micro-Convex meets all essential and safety requirements of all current relevant European Directives. The CE mark on the front label is a symbol of this conformance. If you require any further information regarding these directives please contact us directly. -
Page 4: System Features
The batteries must be charged using only the BCF battery charger or integrated carry case powered from the car power outlet (12 V DC) or the BCF mains power supply. The carry case must not be closed during charging. If the unit must be charged using the mains adapter, use only in dry conditions. -
Page 5: Operating Instructions
1 Operating instructions 1.1 Preliminary switch on Ensure that the external battery is securely latched to the top of the scanner. If a remote display is used, switch on the scanner ensuring the correct receive channel is selected. If a cable connection is required, attach the plug to the user connector port on top of the scanner (Fig 1). Check the plug and socket are free from debris. -
Page 6: Scanning
The preferred start-up mode will be stored automatically when the unit is powered off. 1.3.3 Mode description The Easi-Scan Micro-Convex is designed for OPU applcations and abdominal scanning and offers 3 ranges of examination. Near mode is limited to 6 cm and is optimised for detailed scanning with a high resolution. - Page 7 The timer value is stored on power down and on power on will resume with the same value and settings. 1.3.6 Auto standby mode The Easi-Scan Micro-Convex has a low power standby mode, which can be enabled by selecting a duration from the Standby Sub-Menu.
- Page 8 (accessory) to the front panel and connect the USB plug to a computer. The scanner will identify itself as a USB Flash drive with the name Easi-Scan, if necessary, perform any mounting operations required by your operating system.
-
Page 9: Scanner Setup
Goggles Selecting this option feeds a standard greyscale NTSC video signal out of the front panel, this option is used for BCF BUGs or other goggles, or if using a video lead accessory (e.g. for video printer) Selecting this option allows the user to connect the scanner to a computer via the USB adapter accessory. - Page 10 In addition, by switching the ‘Low Batt Buzzer’ option to on, the scanner will give an audible indication. 1.4.3 Grid & graticule display The Easi-Scan Micro-Convex allows the operator to display grid and/or graticule lines on the image. The following options are available: No grid or scale markings displayed Grid 1⁄2 cm...
-
Page 11: Smart Display
The passkey for Easi-Scan Micro-Convex is ’0000’ (four zeros). 1.4.6 Practice data entry The Easi-Scan Micro-Convex allows the operator to enter a practice name which will be overlaid on any image that is stored. Selecting ‘Practice Data’ from the Setup Sub-Menu brings up the Practice Data Entry Menu. - Page 12 Smart Display, engage the rear of the Easi-Scan Micro-Convex with the lip on the Smart Display and press the Easi-Scan Micro-Convex into place, ensuring that the yellow clips on the Easi-Scan Micro-Convex are fully engaged with the Smart Display and switch on by pressing the power button on the front of the Smart Display.
-
Page 13: Care & Maintenance
BCF systems. However there is no substitute for careful usage. We state that the Easi-Scan Micro-Convex is splashproof, indeed it is sealed to IP65, but you should note the following important points: 1. The unit is not sealed against jets of water. Water will penetrate your scanner if it is hosed down or rinsed under a fast flowing tap 2. - Page 14 While the battery is in a good condition and is fully charged, the scanner will run for the duration below. This time will vary depending on the display option used. • Easi-Scan Micro-Convex with power pack latched 4 hours Scanner run time may approach double this duration using the Auto Standby feature.
-
Page 15: Easi-Scan Micro-Convex Probe
The probe should be checked regularly for such damage. Gels Use only gels recommended by BCF TechnologyLtd. Do not store the probe in gel. Cleaning The probe may be cleaned by removing all organic/protein residue and disinfecting using an IPA or 10% bleach wipe. -
Page 16: Technical Specification
Technical specification Digital ultrasound scanner with fixed probe Size 22 x 15 x 7 cm / 6 x 8.5 x 2.5 in Weight 2 kg / 4 lb (with battery) Mechanical Splashproof, rugged plastic casing. Sealed to IP65 User operation Sealed 4 button key pad with LED User functions •... - Page 17 Power output 5 V @ 250 mA max. Storage 100 images with user entered image file identity Stored on non-volatile internal flash memory image format 640 x 480 bitmap, 8 bpp Probe • Fixed broadband micro-convex probe • 15 mm radius •...
-
Page 18: Accessories
Accessories Smart Display Remote Display (BCF Universal Goggles) Wrist monitor Battery pack Battery charger Charging carry case Carry bag Video splitter Introducer OPU handle... -
Page 19: Service Centres
Service centres If your Easi-Scan requires servicing please contact official authorised service centres below or distributor in your country. Distributors contact details can be found at www.bcftechnology.com In the UK: In North America: BCF Technology Ltd BCF Technology USA Ltd, LLC... - Page 20 For further information on care and maintenance of the Easi-Scan Curve please visit the “Customer support“ section of the BCF website www.bcftechnology.com © BCF Technology Ltd, Dec 2014...
