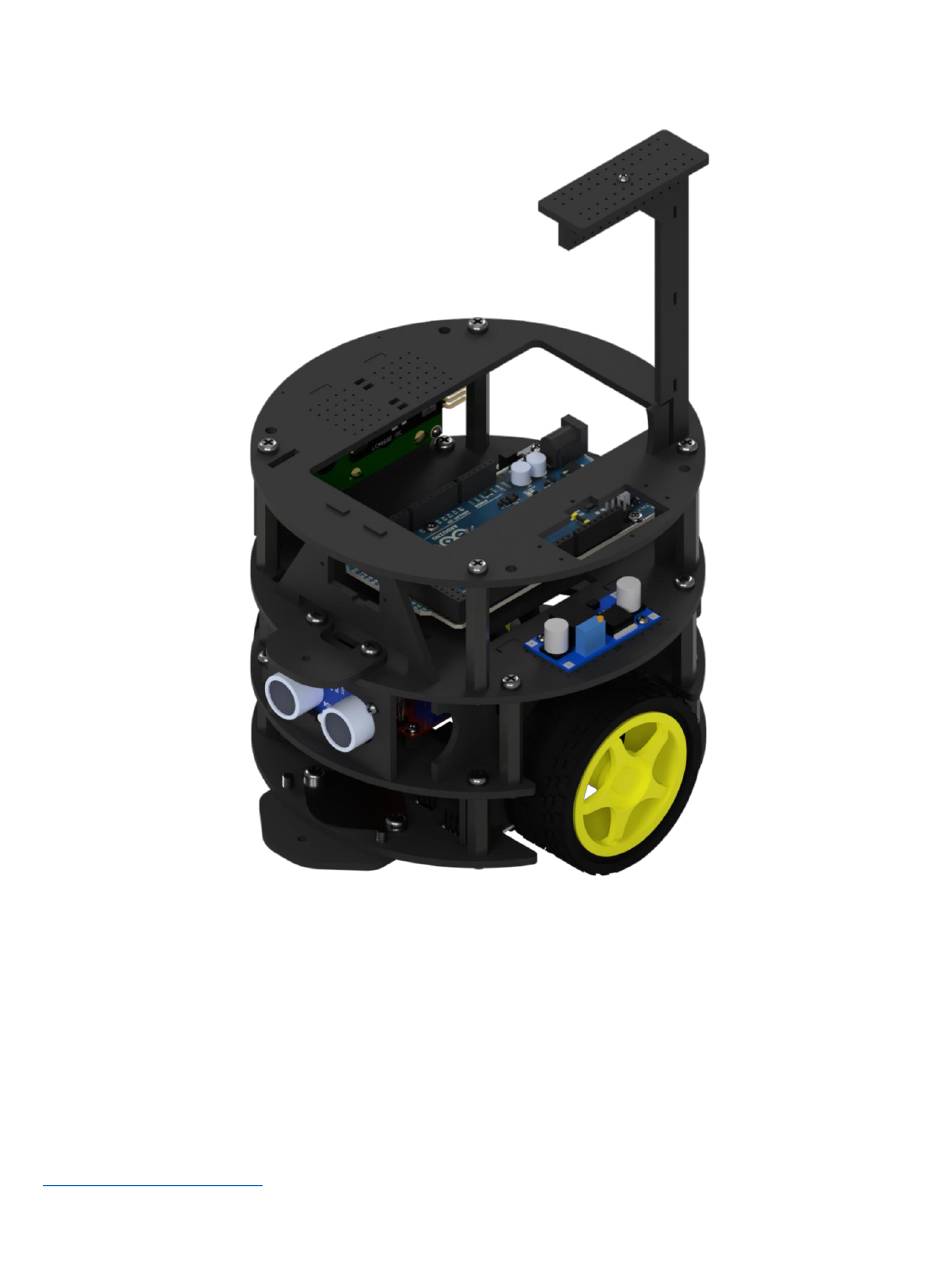

Round Rover
Round Rover V8.1
Assembly Instructions
Recommended Age: 12 and up
Difficulty Level: 3/5
(Soldering Required, programming, connecting wires, small parts – choking hazard)
www.RabbitRobots.com
WARNING: CHOKING HAZARD – This kit contains small parts. Not suitable for children under 3 years

Advertisement

loading
Need help?

Need help?

Do you have a question about the Round Rover V8.1 and is the answer not in the manual?

Questions and answers

Summary of Contents for RabbitRobots Round Rover V8.1

  • Page 1 Round Rover Round Rover V8.1 Assembly Instructions Recommended Age: 12 and up Difficulty Level: 3/5 (Soldering Required, programming, connecting wires, small parts – choking hazard) www.RabbitRobots.com WARNING: CHOKING HAZARD – This kit contains small parts. Not suitable for children under 3 years...
  • Page 2 Description Re-Order # Round Droid Level 1 RD-001 Round Droid Level 2 RD-002 Round Droid Level 3 RD-003 Round Droid Level 4 RD-004 Round Droid Motor Mount RD-005 Round Droid Battery Wall 1 RD-006 Round Droid Battery Wall 2 RD-007 Pen Mount RD-008 Antenna Mast 45mm...
  • Page 3 Required Tools:  Phillips #1 Screwdriver  Phillips #2 Screwdriver  Provided plastic M3 Wrench Extra Recommended Tools:  Sandpaper  Needle File  Knife  Wire cutters This kit is intended to be the base platform for your education into robotics. Please take the opportunity to expand your robot to do many more functions.
  • Page 4 1) Mount the Castor Bearings to the Level 1 Level 1 M4x12mm Screws Roller Bearings 2) Mount the M4x35mm Standoffs for Level 1 M4x12mm Screws M4-25mm Standoffs Bottom View Top View...
  • Page 5 3) Modify the TCRT5000 sensors  Bend the leads straight  Remove the extra parts off the head of the sensor...
  • Page 6  Re-solder the head of the sensor to be as close to the circuit board as possible  Be sure to cut the extra wire 4) Mount the TCRT5000 sensors Modified IR Reflective Sensors M3x9mm Screws...
  • Page 7 5) Mount the Lower Pen Mount Pen Mount M4x12mm Screws 6) Mount the LEFT motor gearbox to the plate Motor Mount M3x25mm Screws M3 Nuts Motor...
  • Page 8 7) Mount the RIGHT motor gearbox to the plate Motor Mount M3x25mm Screws M3 Nuts Motor 8) Mount the wheels Wheels...
  • Page 9 9) Put the motor plates onto the Level 1 10) Mount the Standoffs to Level 2 Level 2 M4x12mm Screws M4-35mm Standoffs...
  • Page 10 11) Mount the Level 2 to the standoffs of Level 1 M4x12mm Screws 12) Mount the M3 Standoffs for L298N motor driver board M3-5mm Standoffs...
  • Page 11 13) Mount the L298N motor driver board to the standoffs L298N M3x9mm Screws 14) Put the Battery Walls onto Level 2 Battery Walls...
  • Page 12 15) Mount the Ultrasonic sensor Ultrasonic Mount Ultrasonic Sensor M2x6mm Screws 16) Put the ultrasonic plate onto the Level 2...
  • Page 13 17) Mount the Standoffs to Level 3 Level 3 M4x12mm Screws Top View M4-45mm Standoffs Bottom View 18) Mount Level 3 to the Standoffs M4x12mm Screws...
  • Page 14 19) Mount the main power switch Switch M2x6mm Screws 20) Mount the voltage regulator Voltage Regulator M2x6mm Screws...
  • Page 15 21) Mount the M3 Standoffs for the Mega 2560 M3-5mm Standoffs 22) Mount the Mega 2560 Arduino Mega 2560 M3x9mm Screws...
  • Page 16 23) Mount the Upper Pen Mount Pen Mount M4x12mm Screws 24) Put the servo mount on Level 3 Servo Mount...
  • Page 17 25) Mount the LCD Display to the plate LCD Mount M2x6mm Screws 26) Put the LCD Display Mount onto Level 3...
  • Page 18 27) Mount the Level 4 to the Standoffs of Level 3 Level 4 M4x12mm Screws 28) Assemble the Antenna Mast Antenna Mast Antenna Mount M2x6mm Screw...
  • Page 19 29) Press the Antenna mast into the receiver slots DONE….
