WAVELET
WASTEWATER
QUALITY KIT
QUICK START
GUIDE
AYYEKA
May 2016 V0.3

Advertisement

loading
Need help?

Need help?

Do you have a question about the Wavelet Wastewater Quality Kit and is the answer not in the manual?

Questions and answers

Summary of Contents for Ayyeka Wavelet Wastewater Quality Kit

  • Page 1 WAVELET WASTEWATER QUALITY KIT QUICK START GUIDE AYYEKA May 2016 V0.3...
  • Page 2 The WARRANTY offered by Ayyeka covers only Ayyeka supplied hardware and software for the duration of the warranty period as per the warranty terms and conditions. AYYEKA IS NOT LIABLE for damage or injury as a result of handling, installation or maintenance of its supplied systems.
  • Page 3: Getting Started

    GETTING STARTED WAVELET WASTEWATER QUALITY KIT Sensor & Cable Zip Ties, Screws & Anchors (NOTE: Kit can be configured for more than one sensor.) Wavelet Device & M8 Male Power Connector Protector (optional, see page 16)
  • Page 4 Tools and/or materials required (not included): PVC pipe U-clamps 12 in. Rotary Hammer Electric Screw Driver Wavelet Activator...

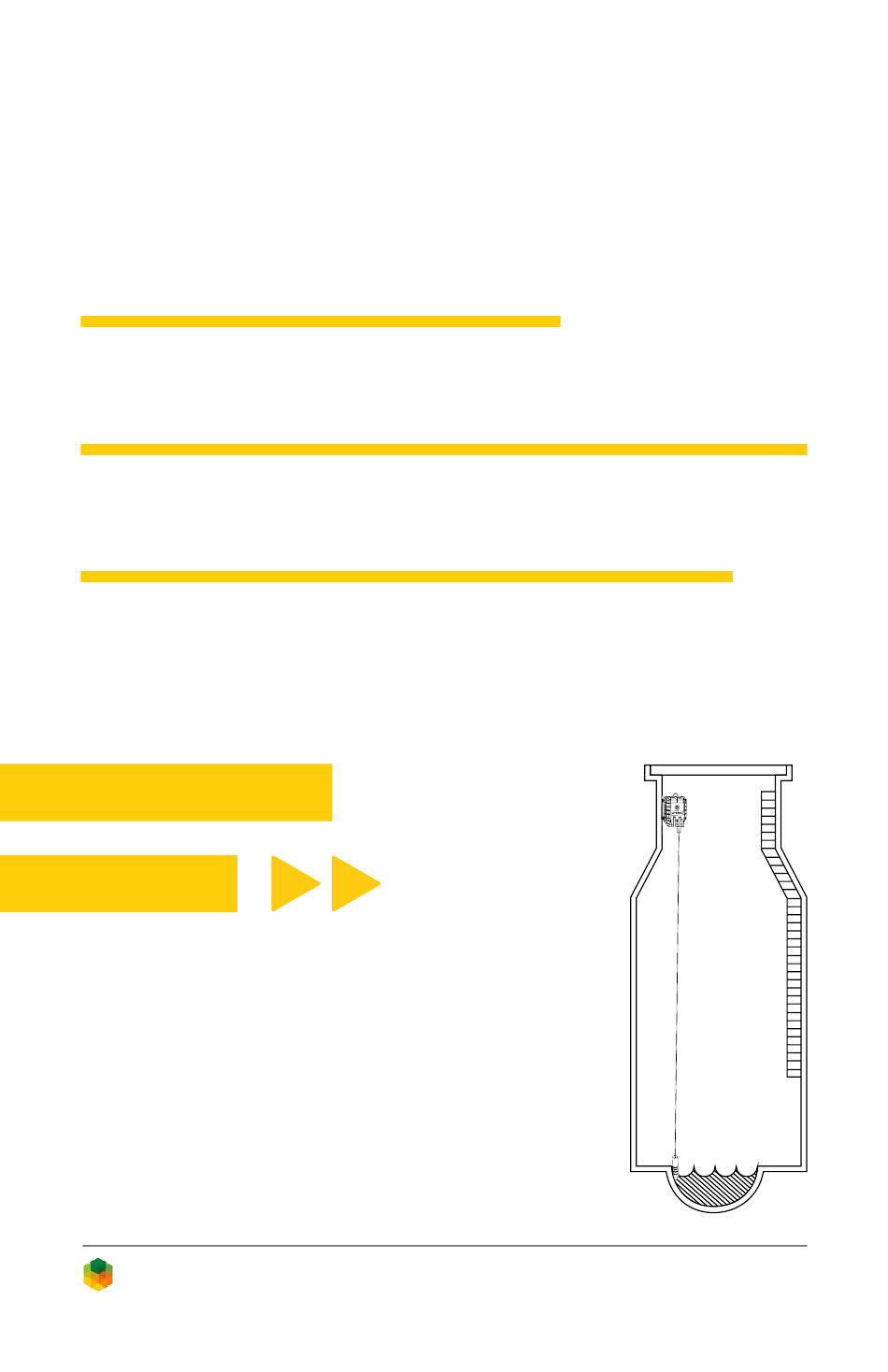

  • Page 5 SCHEMATIC Manhole Cover Wavelet Sensor Cable PVC Pipe Wastewater Quality Sensor...
  • Page 6 Log in to home.ayyeka. confirm updated location com to ensure that cellular on the map. signal has been recently updated in the last few...
  • Page 7: Installation

    INSTALLATION Choose proper installation location, such that there will be adequate clearance after installation to ascend and descend the ladder. Stream Manhole Opening Ladder PLAN VIEW SECTION A-A...
  • Page 8 Prepare a section of PVC pipe (recommended dimensions are 12 inches long by 3 inches in diameter). Drill two (2) holes approximately two (2) inches from the edge of the PVC pipe, and leave no more than two (2) inches of horizontal spacing between the holes.
  • Page 9 Secure the unattached end of the sensor cable before descending into the manhole. Choose proper installation configuration and location above and adjacent to the water stream, taking into account cable length. Drill a set of holes for each of the two (2) U-clamps leaving approximately 4 –...
  • Page 10 Ensure that the tip of the sensor will be submerged at least one (1) inch into the stream once the PVC pipe assembly is clamped to the wall. Bolt the PVC pipe and sensor apparatus to the wall using the U-clamps. 1 in.
  • Page 11 Connect the sensor cable with the connector to the Wavelet. Turn the adjustable black plastic or silver end piece to secure the sensor connector to the Wavelet. CAUTION: Do not turn the black plastic hood of the connector. Turning the black hood will cause the wires to disconnect, break, and/or damage the connector pins.
  • Page 12 WAVELET ACTIVATION Place the Wavelet Activator on the Ayyeka logo on the Wavelet front panel for a few seconds. Wavelet will initiate a 10 minute online test mode. AYYEKA Access the Ayyeka user interface at home.ayyeka.com using your log-in credentials. Expect data to appear between...
  • Page 13 If data does not transmit properly, you have properly, change the completed the installation Wavelet installation location successfully and can begin and activate again. If the collecting and viewing your problem persists, contact data! support@ayyeka.com or +1 (310) 876-8040 for assistance.
  • Page 14 After the Wavelet completes the transmission process, place the Wavelet protector above the connector ports and secure the Wavelet protector into the Wavelet enclosure. CAUTION: The protector is provided to shield the connector from tampering or overexposure that could result in disconnected wiring.
  • Page 15 Secure the Wavelet by screwing it into the wall with two (2) screws and anchors on either side, or with one screw via the top mounted hanger. CAUTION: Be cautious not to install the Wavelet too close to the collar of the manhole cover so that upon removing the cover, it does not damage the Wavelet.
  • Page 16 YOUR WAVELET WASTEWATER QUALITY KIT IS NOW SUCCESSFULLY INSTALLED!
  • Page 17: Wiring Instructions

    WIRING INSTRUCTIONS EXTERNAL POWER: Power Connector +12V N.C. + Installation Tool for Wire Termination (Included) Wire To Connect: Cable Wire Cross 0.14 – Section Surface Area 0.5 mm Wire Gauge AWG 26-20 Cable Ø Diameter 4 – 5.5 mm B. SENSOR CONNECTOR: Sensor Connector Wire To Connect: Conn.
