NO. YG03
INSTALLATION/OPERATION INSTRUCTIONS

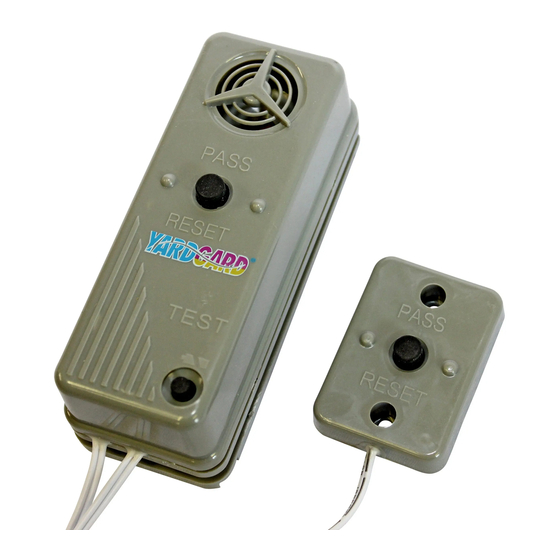

Congratulation on purchasing the YARDGARD safety alarm. The YARDGARD can
be used to monitor potential dangerous areas, and provides a loud volume
alarm/alert when these areas are entered. It can be used indoors or outdoors,
mounted on a wooden fence or metal gate. It can be mounted on any doorway or
opening that leads to potentially dangerous areas.
CAUTION: The alarm siren is very loud. Never place the unit close to your ear.
Prolonged exposure to the loud siren can affect your hearing. Install the unit at
minimum height 54", high enough to be out of reach of children.
This YARDGARD is an entry monitor device. All safety precautions should be
maintained, including parental supervision.
Neither SmartPool LLC. nor anyone else who has been involved in the creation,
reproduction or delivery shall be liable for any direct, indirect, consequential or
incidental damages arising out of the use of the YARDGARD.
Advertisement
Table of Contents
Related Manuals for Yardgard YG03
Summary of Contents for Yardgard YG03
- Page 1 Prolonged exposure to the loud siren can affect your hearing. Install the unit at minimum height 54", high enough to be out of reach of children. This YARDGARD is an entry monitor device. All safety precautions should be maintained, including parental supervision.
- Page 2 Installing the Battery Before installing the battery, use a rubber band to hold the magnet sensors together temporarily, with dot matched to dot, thereby preventing the alarm from sounding after the battery is installed when mounting the unit. To install the battery, remove the four screws at the back, then open the battery door.
- Page 3 Mounting on a Wooden Fence Install the mounting bracket onto a fence post using the two bigger screws. Slide the alarm unit onto this mounting bracket. You will feel a click when the unit is properly installed. Mount the two magnet sensors onto the fence post, one on each side, using the four smaller screws.
- Page 4 Mounting on a Wall And Glass Doors Install the mounting bracket using two pieces of double sided foam tape. Slide the alarm unit onto this mounting bracket. You will feel a click when the unit is properly installed. Apply the double sided foam tape onto the bottom recessed area of magnet sensor pair.
- Page 5 Operation This YARDGARD is designed to monitor the opening of gate or door, to alert an adult if a child has opened a gate or door to a potential dangerous area. Check the battery. Press the CHECK button should give a loud beep, otherwise replace with a new battery.
- Page 6 Auto Siren OFF Siren can be turned OFF manually as describe on previous section, or the unit will reset in 4 minutes automatically if the gate is closed. Automatic Continuous Monitoring If alarm is triggered and reset by itself in 4 minutes, the unit will check the condition of magnet contact sensor to decide if the door remains open or not.
- Page 8 www smartpool com...
