Installation Instructions

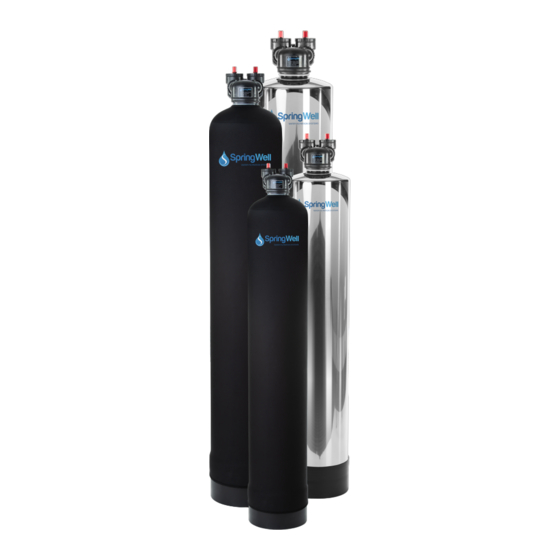

WHOLE HOUSE FILTER &
SALT-FREE WATER SOFTENER
MODELS: CSF1, CSF4
You get the best of both worlds when you combine the
benefits of our high-tech SpringWell FutureSoft and
environmentally-friendly salt-free water softener and our
whole house water filter, which uses the highest quality
coconut shell catalytic carbon that targets the
contaminants that we find in our water supplies today!
CUSTOMER SERVICE IS AVAILABLE MON-FRI 9AM-6PM EST
800-589-5592
WWW.SPRINGWELLWATER.COM
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Spring Well CSF1
Summary of Contents for Spring Well CSF1
-
Page 1: Installation Instructions
Installation Instructions WHOLE HOUSE FILTER & SALT-FREE WATER SOFTENER MODELS: CSF1, CSF4 You get the best of both worlds when you combine the benefits of our high-tech SpringWell FutureSoft and environmentally-friendly salt-free water softener and our whole house water filter, which uses the highest quality coconut shell catalytic carbon that targets the contaminants that we find in our water supplies today! - Page 2 Additional Parts Included Bypass Valve 1” MNPT Fittings (x2) Mounting Bracket for Pre-Filter Hose Bib Assembly Pre-Filter Housing Spanner Wrench for Pre-Filter Housing O-Ring for Pre-Filter Housing with Lube Sediment Filter PLEASE READ INSTRUCTIONS FULLY BEFORE INSTALLATION. Be sure to follow all applicable plumbing codes. The system must be installed on main water supply line.
-
Page 3: Product Specs
Product Specs Tank Width 9” Tank Width 10” Tank Height 48” (52” with head) Tank Height 54” (58” with head) Flow Rate 9 GPM Service Flow Rate 11 GPM Service Connection Size 1” Connection Size 1” Operating 25-80 PSI Operating 25-80 PSI Pressure Pressure... - Page 4 Level Tanks If the tank is not perfectly straight, carefully lift the tank straight up a few inches and tap it on the ground until the tank stands vertical and fits snuggly into the tank boot.
- Page 5 Carbon Soak Instructions IMPORTANT! The carbon media inside the filter system MUST soak in water for a MINIMUM of 2 days before installation. To do so set the tank on a level surface in an area where it can get wet around the tank. Locate the bypass valve with the red arrows and the 1”...
- Page 6 FutureSoft Soak Instructions IMPORTANT! The media inside the filter system MUST soak in water for a MINIMUM of 2 days before installation. Set the tank on a level surface in an area where it can get wet around the tank. Locate the bypass valve with the red arrows and the 1”...
- Page 7 Carbon Rinse Instructions After the carbon has soaked for 2 days take the bypass valve out of bypass into the service mode. Locate the hose bib assembly and connect it to the Inlet side. Connect a water hose to the opposite end of the hose bib assembly. Turn the water on slowly and only halfway on and allow the water to run for 15-20 minutes. ...
- Page 8 FutureSoft Rinse Instructions After the FutureSoft media has soaked for 2 days locate the hose bib assembly again and connect it to the Inlet side of the tank head. Connect a water hose to the opposite end of the hose bib assembly. Put the bypass valve to the in service mode.
- Page 9 Pre-Filter Setup/Install This is the point where you will need to shut the main water supply off and adapt your plumbing in and through the system. We recommend you plumb a shut off valve before the pre-filter housing. Locate the area where the system is going to be installed.
-
Page 10: Complete Install
Complete Install (Example using SharkBite Fittings) Once the plumbing is complete its time to start the system up. Double check all connections. The valve nuts should only be hand tight. Slowly turn the main water supply back on. Check for leaks. If there are no leaks slowly turn the bypass valves to the on position. -
Page 11: Warranty Information
Warranty Information For more information on our warranty, please visit www.springwellwater.com/warranty/...
