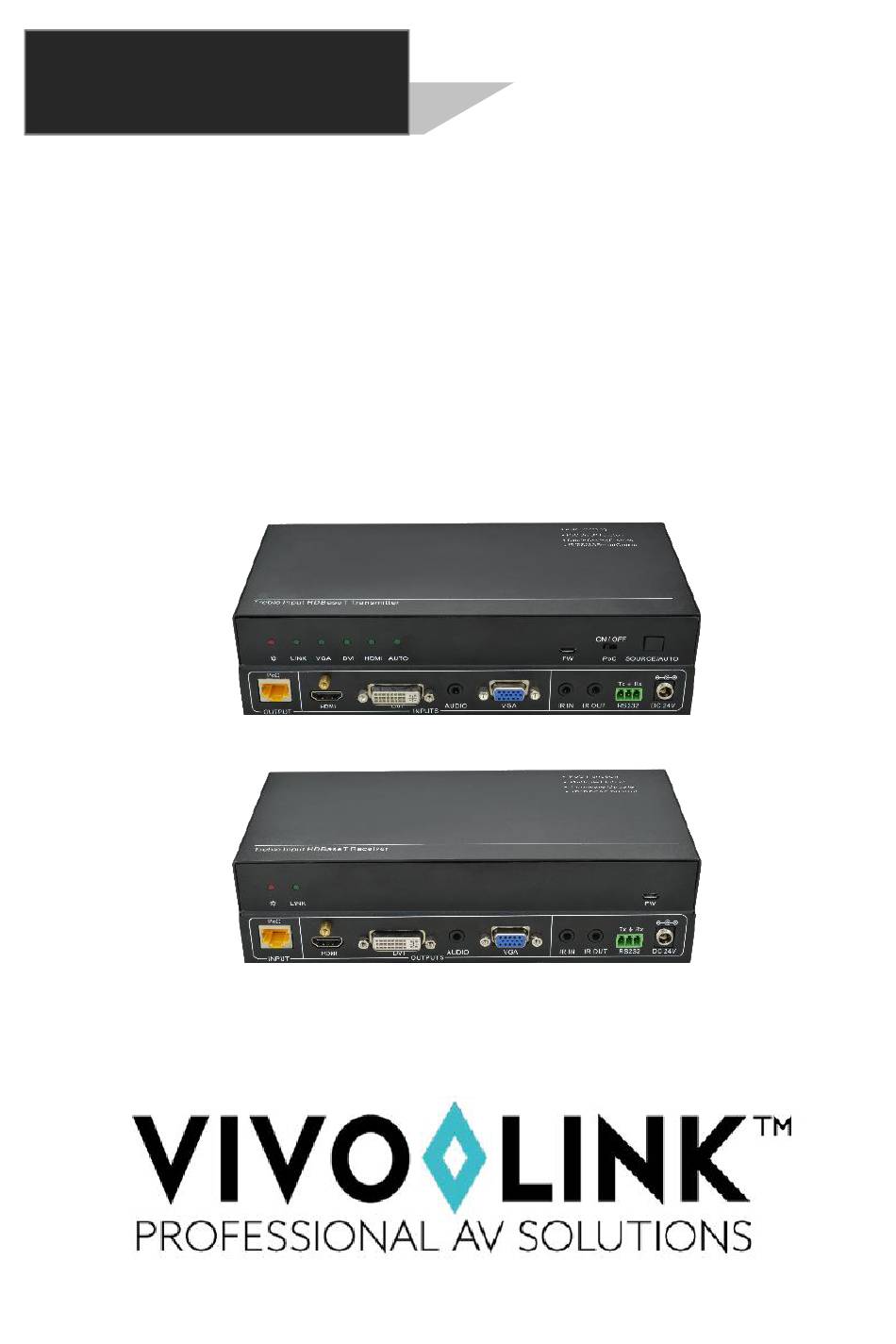

  • Page 1 User Manual VL120017 HDBaseT Transceiver Set...
  • Page 2 HDBaseT Transceiver Set Preface Read this user manual carefully before using this product. Pictures shown in this manual is for reference only, different model and specifications are subject to real product. This manual is only for operation instruction only, not for any maintenance usage. Trademarks Product model and logo are trademarks.
  • Page 3 HDBaseT Transceiver Set SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference.  Unpack the equipment carefully and save the original box and packing material for possible future shipment ...

  • Page 4: Table Of Contents

    HDBaseT Transceiver Set Table of Contents 1. Introduction ......................... 1 1.1 Brief Introduction ....................1 1.2 Features ......................1 1.3 Package Contents ..................... 1 2. Panel Description ......................2 2.1 Transmitter ......................2 2.2 Receiver ......................4 3. System Connection ..................... 6 3.1 Usage Precautions ....................

  • Page 5: Introduction

    HDBaseT Transceiver Set 1. Introduction 1.1 Brief Introduction This product is an HDBaseT Transceiver Set which contains a Transmitter and a Receiver. It uses HDBaseT technology to deliver HDMI/DVI/VGA signal, and the max transmission is up to 70m. Moreover, bi-directional RS232 control, RS232 pass-through, IR control and PoC are supported by this product.

  • Page 6: Panel Description

    HDBaseT Transceiver Set 2. Panel Description 2.1 Transmitter ON / OFF LINK HDMI AUTO SOURCE/AUTO AUDIO IR IN IR OUT R S232 DC 24V HDMI OUTPUT INPUTS Figure 2-1 Transmitter Name Description  Power: Illuminates red when power on.  LINK: Twisted Pair Link status indicator, illuminates green when successfully connected.
  • Page 7 HDBaseT Transceiver Set auto-switching mode and the indicator AUTO will lights green. Under this mode, the last signal source connected to transmitter will be recognized as input signal. Press and hold for 5 seconds or more again to exit auto-switching mode. Connect to the INPUT port of Receiver with a CAT5e cable.

  • Page 8: Receiver

    HDBaseT Transceiver Set 2.2 Receiver LINK AUDIO IR IN IR OUT R S232 DC 24V HDMI INPUT OUTPUTS Figure 2-2 Receiver Name Description Illuminates red when power on. ① Power Twisted Pair link status indicator, illuminates green when ② LINK successfully connected.
  • Page 9 HDBaseT Transceiver Set Serial port, 3-pin pluggable terminal block, supports bi-directional RS232 control and passthrough function, connect with the control ⑪ RS232 PC or other devices needed to be controlled. Connect with DC24V 1.25A power adaptor (not necessary if Transmitter connects with power adaptor and the PoC button is ⑫...

  • Page 10: System Connection

    HDBaseT Transceiver Set 3. System Connection 3.1 Usage Precautions 1) System should be installed in a clean environment and has a prop temperature and humidity. 2) All of the power switches, plugs, sockets and power cords should be insulated and safety.

  • Page 11: Twisted Pair Cable Connection

    HDBaseT Transceiver Set Step6. Connect HDMI displayer (such as HDTV) to HDMI OUTPUT port of Receiver with HDMI cable. Step7. Connect DVI displayer to DVI OUTPUT port of Receiver with HDMI cable. Step8. Connect VGA displayer to VGA OUTPUT port of Receiver with HDMI cable. Step9.
  • Page 12 HDBaseT Transceiver Set brown brown 4--5 4--5 Ground Ground Notice: Cable 3--6 1--2 Ground Ground connectors MUST be metal one, the 1--2 3--6 Group Group shielded layer of cable MUST be connected to 7--8 7--8 the connector’s metal Group Group shell, to make a better transmission.

  • Page 13: Operations

    HDBaseT Transceiver Set 4. Operations 4.1 Operations of front panel buttons Transmitter has a channel switching button SOURCE/ AUTO on the front panel, through which users can switch input source signals. It supports both manual and auto mode. (Default: Auto switching) Press and hold the button SOURCE/AUTO for 5 seconds or send command “50770%”and “50771%”...

  • Page 14: Rs232 Communication Commands

    HDBaseT Transceiver Set The interface of the control software is showed as below: Parameter Configuration area Monitoring area, indicates if the command sent works. Command Sending area Please set the parameters of COM number, bound rate, data bit, stop bit and the parity bit correctly, and then you are able to send command in Command Sending Area.
  • Page 15 HDBaseT Transceiver Set 00 to 99 Set the sharpness to xx. XX ranges from 505xx% Sharpness: xx 00 to 99 50606% Auto-adjust the input parameter VGA Input Auto Color Temperature: xx 50607% Adjust the color temperature (xx can be medium, warm, user, or cool) Aspect Ratio: xx (xx 50608%...
  • Page 16 HDBaseT Transceiver Set Scaler Set the HDCP status of HDMI output 50790% HDCP Active socket to Active Set the HDCP status of HDMI output 50791% HDCP On socket to On Set the HDCP status of HDMI output 50792% HDCP Off socket to Off DVI Audio from 50603%...
  • Page 17 HDBaseT Transceiver Set 1920x1080 50707% Check the present resolution and polarity Hpolarity:1 Vpolarity:0 50699% Check the system version Version Vx.x.x Port VGA Set & VGA 50642% Check the input signal format of VGA Port VGA Set & YPbPr Port VGA Set & CVBS Input:XXX 50631% Check the input signal...
  • Page 18 HDBaseT Transceiver Set Pull left from right side (decrease image 50674% Output Width Adjust xx width) Stretch right from right side (increase 50675% Output Width Adjust xx image width) Stretch upwards from bottom side 50676% Output Height Adjust xx (decrease image height) Stretch downwards from bottom side Output Height Adjust 50677%...
  • Page 19 HDBaseT Transceiver Set all displays. Change the resolution to 1280x1024p for 80615% Resolution:1280x1024p all displays. Change the resolution to 1920x1200p for 80616% Resolution:1920x1200p all displays. Change the resolution to 1280x720p for 80627% Resolution:1280x720p all displays. Set the signal format as YPBPR for VGA 80623% Switch To YPBPR output signal...

  • Page 20: Rs232 Passthrough Feature

    For example, connect a PC to RS232 port of Transmitter, and then connect a projector to RS232 port of Receiver, the connection diagram as shown as below. The remote projector can be controlled by sending commands via PC. For specific commands, please refer to the projector’s user manual. VL120017...
  • Page 21 HDBaseT Transceiver Set CAT5e/ 6A Cable Receiver Transmitter HDMI AUDIO IR IN IR OUT R S232 DC 24V INPUT OUTPUTS AUDIO IR IN IR OUT R S232 DC 24V HDMI OUTPUT INPUTS Projector Figure 4-1 RS232 Pass-through Diagram  1. Before using RS232 passthrough feature, 50779% and 80700% should be sent to make Transmitter and Receiver into RS232 mode 1 and RS232 mode 2.

  • Page 22: Specification

    HDBaseT Transceiver Set 5. Specification Model Transmitter Receiver Spec Input Ports 1×HDMI; 1×DVI; Input Signal 1×HDBT INPUT 1×VGA; 1×AUDIO; Female HDMI (Type-A); Female DVI-I; Input Connector RJ-45 Female VGA (DB-15,blue); 3.5mm stereo jack; Output Ports 1×HDMI; 1×DVI; Output 1×HDBT OUTPUT 1×VGA;...
  • Page 23 HDBaseT Transceiver Set 1920x1080 、 1600x900 、 1366x768 、 1280x720 、 16:9 1024x576 、 、 、 1920x1200 1680x1050 1440x900 Resolution 16:10 1360x768,1280x800 1600x1200、1400x1050、1280x1204、1024x768、 800x600、640x480 1920x1200、 1920x1080、 1600x1200、 1360x768、 1280x800、 Upscaling Resolution 1280x720、1024x768. HDMI embedded audio: PCM, PCM 2Ch Audio Format Analog audio: PCM，PCM 2Ch Input：support VGA、CVBS、YPbPr VGA Signal Type...

  • Page 24: Panel Drawing

    HDBaseT Transceiver Set 6. Panel Drawing 220 mm HDMI AUDIO IR IN IR OUT R S232 DC 24V OUTPUT INPUTS 13 mm Auto Switching PoC On/Off Function Built in Scaling Function IR/RS232/Button Control Treble Input HDBaseT Transmitter ON / OFF LINK HDMI AUTO...

  • Page 25: Troubleshooting & Maintenance

    HDBaseT Transceiver Set 7. Troubleshooting & Maintenance Problems Causes Solutions Insert power adapter to the Haven’t been powered on. receiver. No reaction to any operation, power Should the replacement The poor quality of network indicator is off CAT5e/CAT6a cable of cable.
  • Page 26 HDBaseT Transceiver Set well. connecting the video connectors Cannot control the Make sure the RS232 projector by control Wrong RS232 communication communication parameters device (e.g. a PC) parameters are correct. through RS232 port Cannot use the Send it to authorized the device is broken device dealer for repairing.

  • Page 27: After-Sales Service

    HDBaseT Transceiver Set 8. After-sales Service If there appear some problems when running the device, please check and deal with the problems reference to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: We warrants that its products will be free from defects in materials and workmanship for three years, which starts from the first day you buy this product (The purchase invoice shall prevail).
