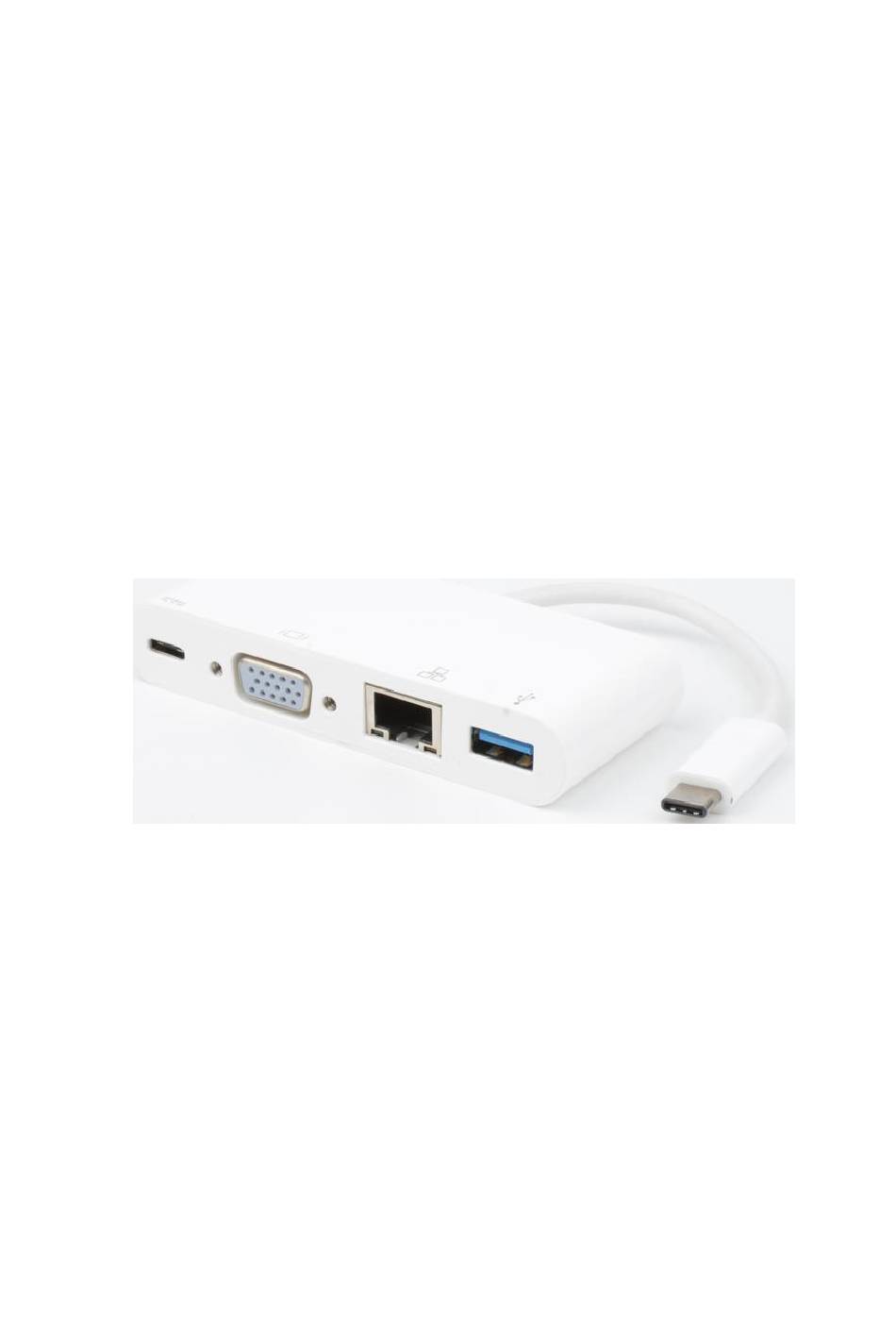

- Page 1 P/N USB3.1CCOM4 USB 3.1 Type-C to USB3.0+VGA+Gigabit RJ45 +Type-C Charging Adapter User Manual...
- Page 2 USB 3.1 Type-C to USB3.0+VGA +RJ45 +Type-C Charging Adapter Contents 1.0 INTRODUCTION ..........1 2.0 FEATURES ............1 3.0 SPECIFICATIONS ..........2 4.0 PACKAGE CONTENTS ........2 5.0 OPERATION ............ 2 6.0 CONNECTION DIAGRAM ........3...
- Page 3 USB 3.1 Type-C to USB3.0+VGA +RJ45 +Type-C Charging Adapter USB 3.1 Type-C to USB3.0+ VGA+Gigabit Ethernet+Type-C Charging Adapter DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or using this product. Please keep this manual for future reference.
-
Page 4: Specifications
USB 3.1 Type-C to USB3.0+VGA +RJ45 +Type-C Charging Adapter 3.0 SPECIFICATIONS Input/Output Connector Input USB-C Male x1 USB-C Female x1for charging Output VGA Female x1 USB 3.0 Femalex1 RJ45X1 Physical Weight 46.9g Size 95x41x17(mm) Frequency Vertical Frequency Range 50/60Hz Video Amplifier Bandwidth Up to 2.25Gbps/225MHz Resolutions Resolutions... -
Page 5: Connection Diagram
USB 3.1 Type-C to USB3.0+VGA +RJ45 +Type-C Charging Adapter 3) Connect the USB 3.0 output of this product to a USB 3.0/2.0 device 4) Connect Gigabit Ethernet port of this product to Ethernet Router with an Ethernet cable 5) Automatically or manually set IP address of computer 6) Connect the USB-C charging port, it can charge for the host computer and support this adapter to work simultaneously Note:...
