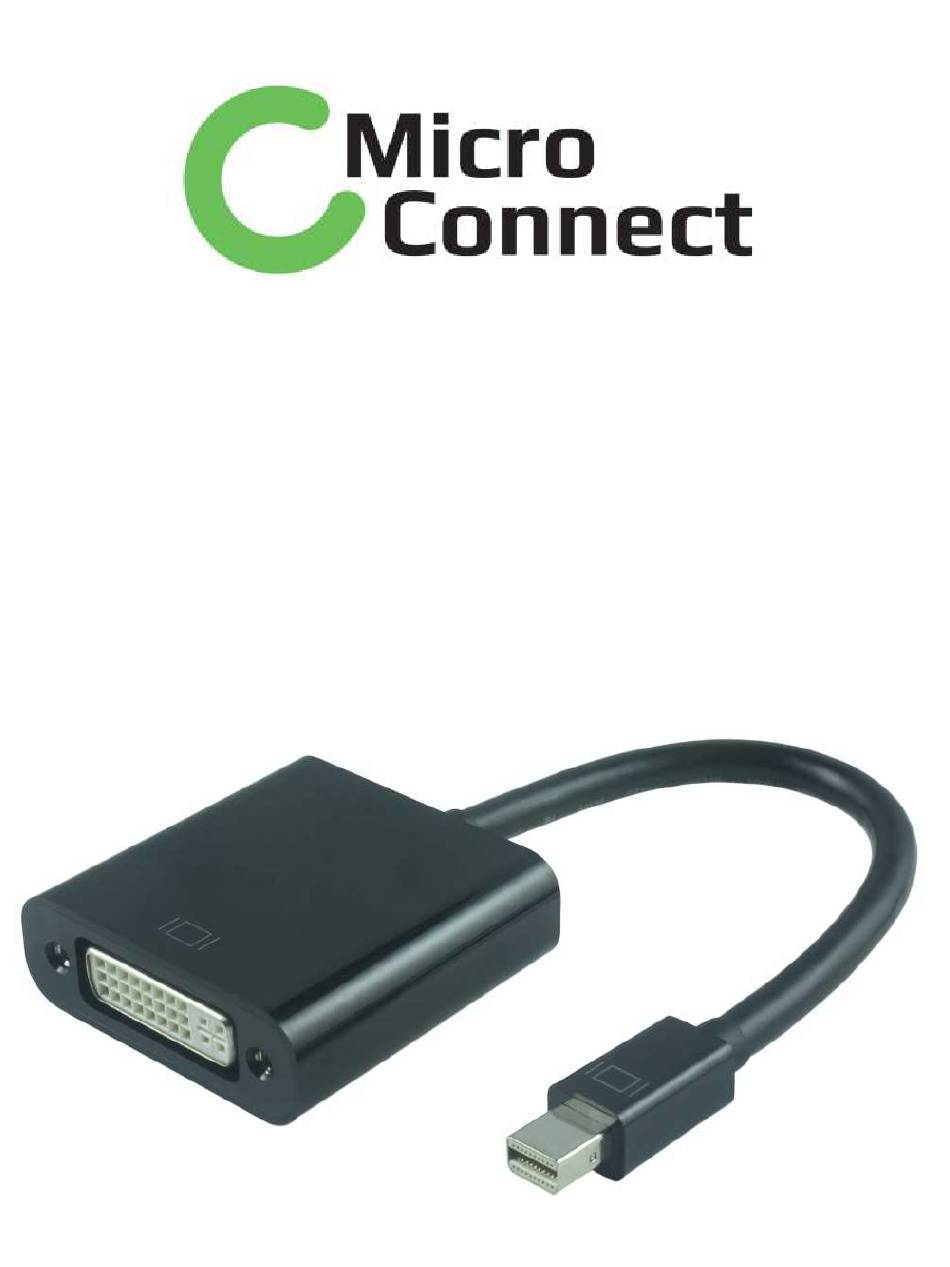

- Page 1 MINI DISPLAYPORT 1.2 TO DVI CONVERTER User Manual P/N: MDPDVI3B...
- Page 2 UIOYGOY Mini DisplayPort 1.2 to DVI Converter Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Mini DisplayPort 1.2 to DVI Converter This is a Mini DisplayPort 1.2 to DVI signal format converter for interfacing next generation DisplayPort based on PC and notebook computers with high definition displays.
- Page 3 FEATURES Mini DisplayPort 1.2 to DVI Converter Supports Mini DisplayPort1.2 and 4 lanes. Support Mini DisplayPort 1.2a input and DVI output. Support HDMI highest video resolution 1920x1080@60HZ. Supports multiple color format: RGB 6/8/10/12-bit per component (bpc) and YCbCr4:4:4, YCbCr4:2:2,8/10/12bpc.
- Page 4 SPECIFICATIONS Mini DisplayPort 1.2 to DVI Converter Signal Inputs/Output Input Video Signal....................... 5 Volts p-p (TTL) Maximum Single Link Range.................. 1920x1080@60HZ Output Video........................... DVI Input Connector....................DisplayPort Male 20pin Connector....................... DVI Female (24+5) Output Vertical Frequency Range....................... 50/60Hz Video Amplifier Bandwidth..................1.62Gbps/2.7Gbps No 3D Mode....................
-
Page 5: Wiring Diagram
WIRING DIAGRAM Mini DisplayPort 1.2 to DVI Converter...
