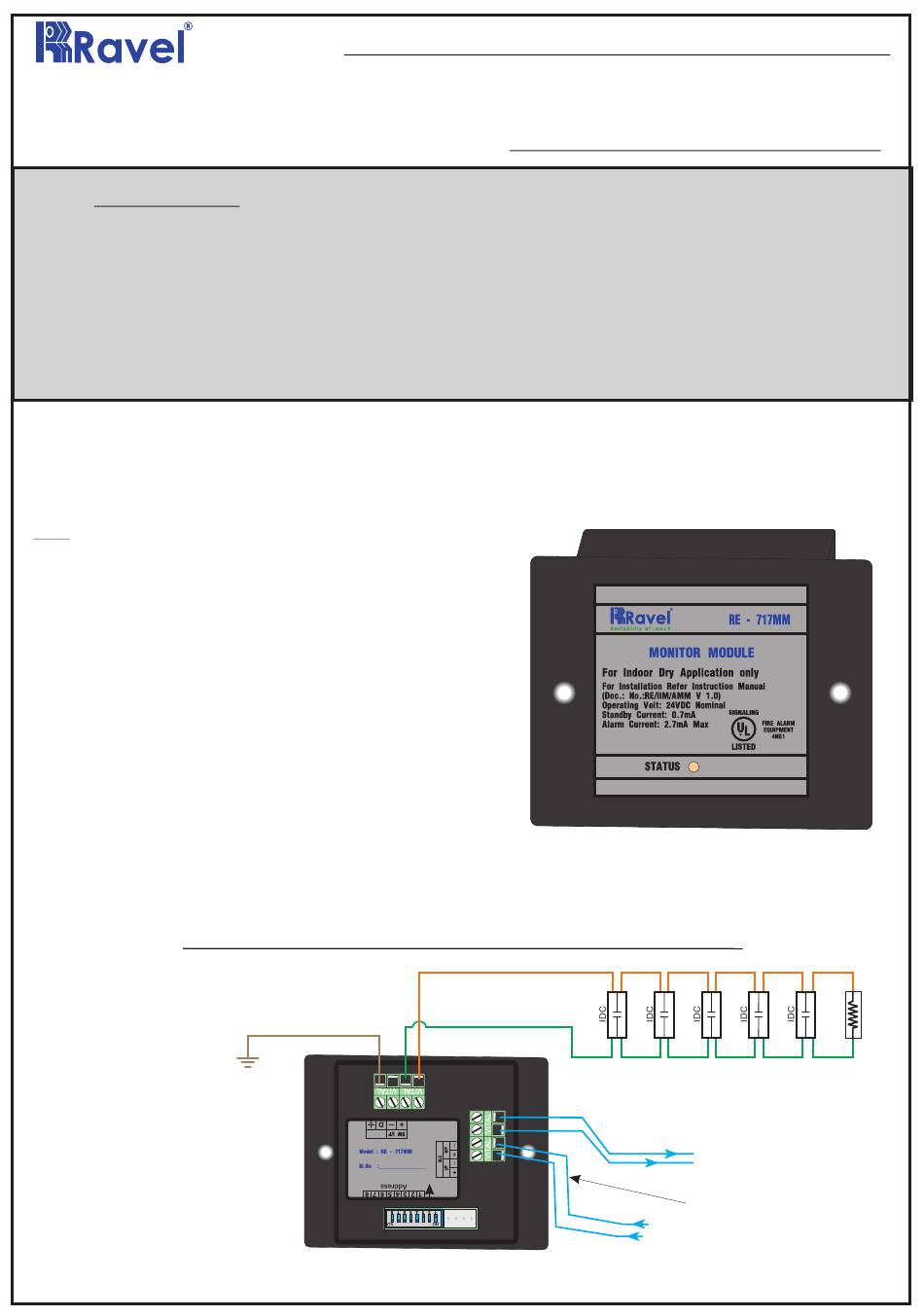

Ravel RE-717MM Installation And Maintenance Instructions

RAVEL ELECTRONICS PVT LTD.,
150A, ELECTRONICS INDUSTRIAL ESTATE, PERUNGUDI, CHENNAI - 96 .INDIA.
Ph.: +91-44-2496 1004 / 0825. Fax: +91-44-4204 9599.
E-Mail: marketing@ravelfirepanels.com; www.ravelfirepanels.com

SPECIFICATION

Operating Voltage
Alarm Current
Standby Current
IDC wiring Resistance
IDC Voltage
Temperature Range
Humidity
Dimensions

Before Installation:

This instruction manual is about quick reference installation guide. For
detailed system information refer the control panel installation manual.
Inform to the operator and authority person that system will be temporarily
out of service, while the module is installed in the existing system.
Note:
Disconnect the power to the control panel before installing the module.

General Instruction:

This monitor module is intended for the use in intelligent two wire system.
The individual address of the each module is selected by using the DIP
Switch. This module provides 2 or 4 wire fault initiating circuit for normally
open contact fire alarm, supervisory, or other devices.

Compatibility Requirement:

This monitor module should be connected to listed compatible control
panel only.
NOTE:
All wiring should be conform to applicable local codes, ordinances, and
regulations.
1. Install module wiring in accordance with the job drawings and
appropriate wiring diagrams.
2. Set the address on the module per job drawings.
Wire should be stripped to the appropriate length. Exposed conductor
should be secured under the clamping plate and should not protrude
beyond the terminal block area.
Caution: Do not loop wire under terminals.
Wiring Configuration for IDC Wiring (Class B,Style B
NOTE:
* D = NO CONNECTION
* ALL WIRING SHOWN IS SUPERVISED AND POWER LIMITED
INSTALLATION AND MAINTENANCE INSTRUCTIONS
: 24 VDC Nominal.
: 2.7 mA Max.(Latched)
: 0.7 mA( 47K EOL.)
: 100 Ohms Max.
: 8 V Max.
o o
: 0 C to 49 C
: 10% to 93% Non - condensing.
: 95 mm x 75 mm x 24mm (L x B x H)
+
Use only Listed
Compatible Panel

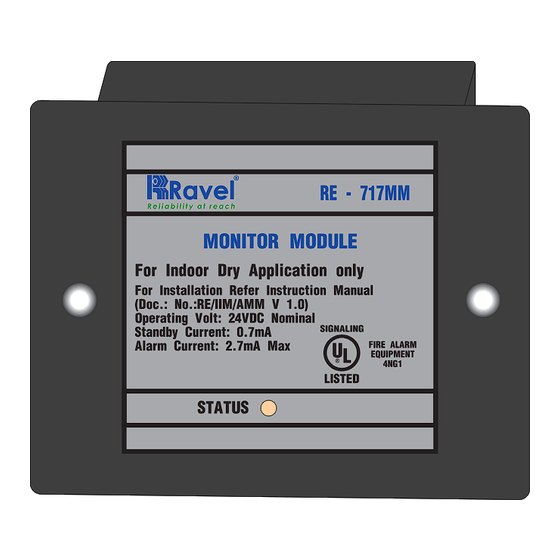

RE-717MM MONITOR MODULE
.
-
From Panel or
Previous Device
)
To Next
-
Device
+
SIGNAL LINE
CIRCUIT (SLC)
- 28 VDC MAX.
+
Doc.: No.:RE/IIM/AMM V 1.0
47K EOL
Resistor
RE-47K
