Summary of Contents for ZMODO Beam

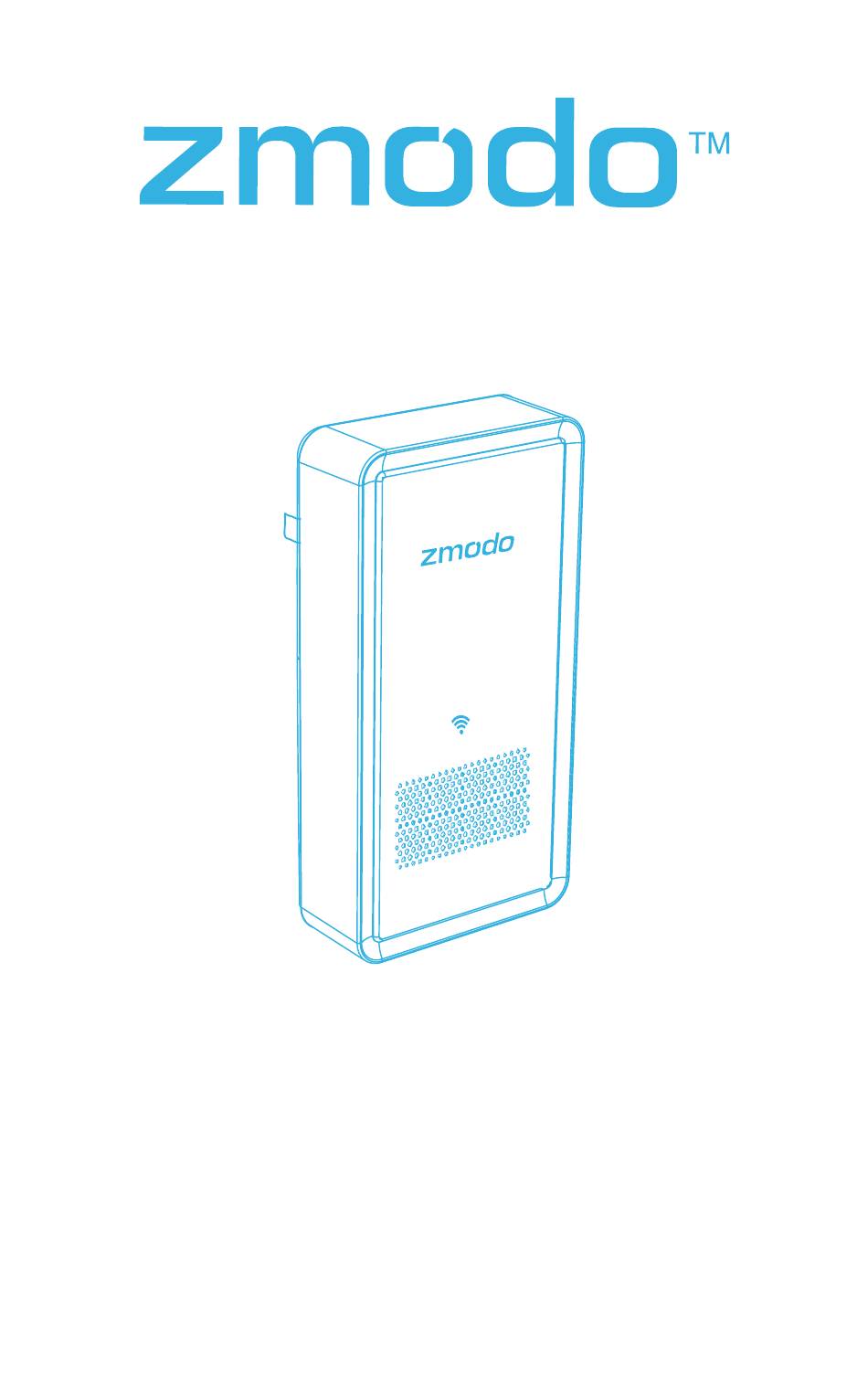

- Page 1 Beam Quick Start Guide...
- Page 2 Getting to know your Beam Beam is a Smart WiFi Range Extender with smart hub features. You can use the Beam to connect Zmodo smart accessories to build your smart home. Once you have configured your Beam, you will be able to use the "Automatic"...
-
Page 3: Mobile Setup
Place your Beam within range of your wireless router. Make sure that you have a strong WiFi connection. Plug Beam into a power outlet, and wait for the Status Light to blink white. Make sure you know the SSID (WiFi network name) and password of the 2.4GHz WPA-... - Page 4 Google Play or the App Store (compatibility: iOS 7.0+ or Android 4.0+). Launch the app and sign up for a free Zmodo account. All of your devices will be bound to this account. Zmodo We are constantly working to improve our product and app.
- Page 5 Log in and press in the upper right corner. Select "Add Device".
- Page 6 Select the “Tap here to add a Beam” option at the bottom of the page to connect your Beam. Your Beam will be added to your Zmodo account. Follow the on-screen instructions and select “Tap here to begin setup” “AP_ZMD”...
- Page 7 Return to the Zmodo app page and select or enter the SSID and password of the WiFi network that you want your Beam to connect to. Note: The WiFi name and password are case-sensitive. √ to proceed.
- Page 8 If you see this screen, the app will connect your Beam to your WiFi network. This may take a few minutes. Once it's completed, please skip to step 10. If you do not see this screen, please proceed to step 7.
- Page 9 Select the WiFi network that your Beam will connect to, and connect to it. Return to the Zmodo app once your mobile device is connected to the WiFi network. The app will automatically search for your Beam and connect it to the WiFi network.
- Page 10 Name your Beam and set a √ password for it. Tap proceed. Note: The password provides an additional layer of security for your devices. You will not need to use this password when accessing your devices from the Zmodo app. It is not required, but it is highly recommended.
- Page 11 The following tips will help you to optimize your Beam's performance. Selecting a location for your Beam: Make sure your Beam is within range of your WiFi router. Place Beam about halfway between your WiFi router and the farthest point where you would like to extend the WiFi signal.
- Page 12 Connect other Zmodo Devices using your Beam You can use your Beam to configure other Zmodo smart devices more easily and quickly than ever. Follow the steps below to configure other Zmodo devices: Log in and press the upper right corner.
- Page 13 Select the “Automatic” connection method to connect your devices.
- Page 14 √ to proceed (If you’re setting up multiple devices at once, tap to add additional units). Your Beam will automatically search for your devices and connect them to the WiFi network. This may take a few minutes.
- Page 15 Connect Zmodo Smart Accessories Beam has smart hub features, allowing you to connect all Zmodo smart accessories such as door/window sensor, PIR sensor, Smoke Detector, etc. When paired, you will be able to receive notifications when the smart accessories are triggered.
- Page 16 Access your Beam’s Device Settings and select the "Accessories" option. Select the icon to add an accessory. Press the button on the door / window sensor when prompted. You will see a message confirming that your sensor has been successfully added.
- Page 17 Remove the film to expose the adhesive on the back, and install sensors as shown below. Please make sure that the two portions of the sensor are no more than 2cm apart when closed. Door Sensor Position Window Sensor Position Open Closed...
- Page 18 You may need to move your Beam closer to your WiFi router. To reset the Beam, please use a pin to press and hold the reset button down for 5 seconds. You will now be able to reconfigure the Beam.
- Page 19 Support Having difficulty? You can use the Live Chat function in the Zmodo app if you have any technician questions. Please follow the steps below: Access the "Me" page in the bottom right hand corner of the Zmodo app and select "Zmodo Support".
- Page 20 Like us on Facebook.com/Zmodo Scan the QR-code below! Follow us on Twitter @Zmodo Scan the QR-code below! Android is a trademark of Google Inc. Google Play is a trademark of Google Inc. Apple, the Apple Logo, and iPhone are trademarks of Apple Inc., registered in the U.S.
