RNG KIT-STCS60D Owner's Manual

Solar suitcase 60w and 100w
Hide thumbs Also See for KIT-STCS60D:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
KIT-STCS60D | KIT-STCS100D
Solar Suitcase 60W and 100W Owner's Manual
RNG Group Inc. (Renogy)
14288 Central Ave., Suite A Chino, CA 91710
1-800-330-8678

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KIT-STCS60D and is the answer not in the manual?

Questions and answers

Related Manuals for RNG KIT-STCS60D

Summary of Contents for RNG KIT-STCS60D

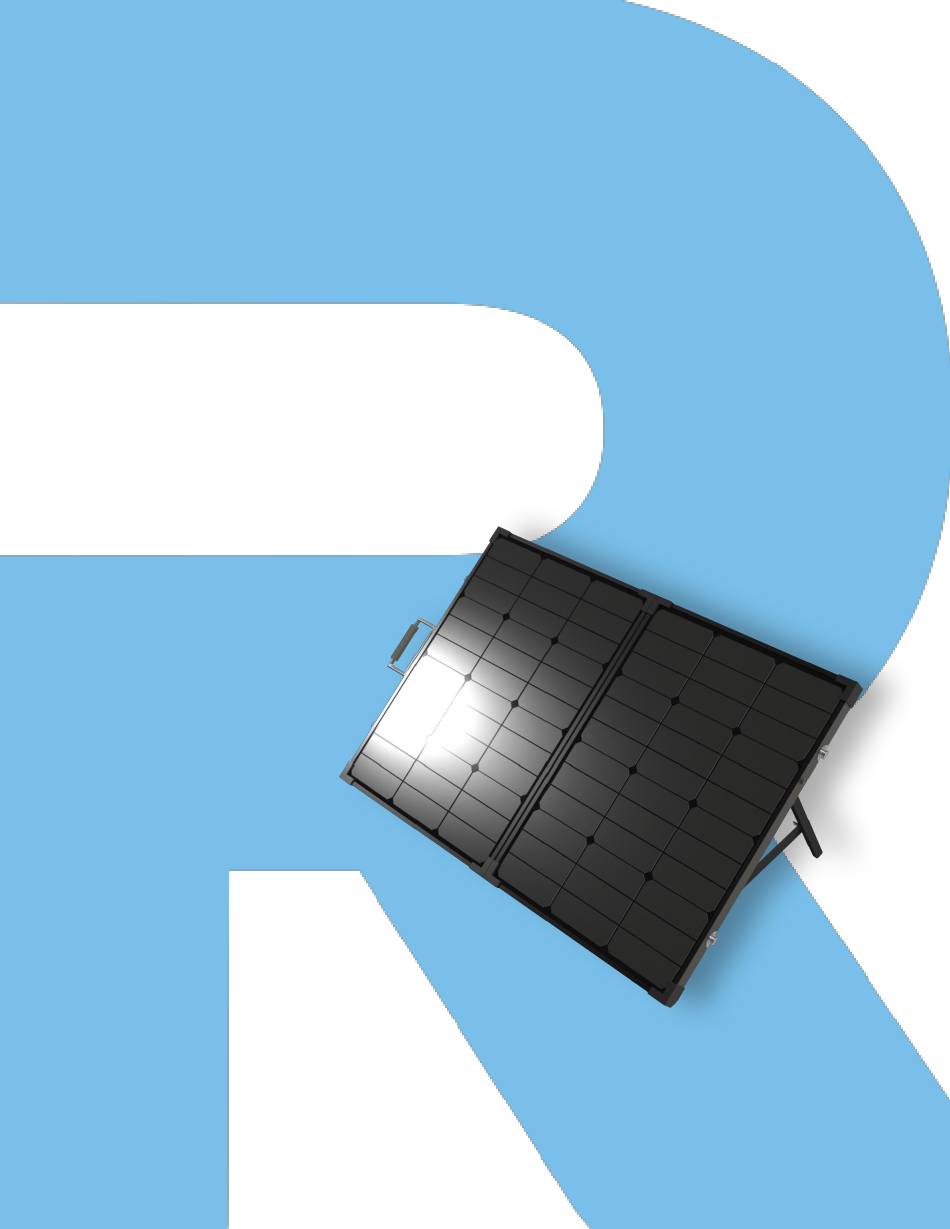

  • Page 1 KIT-STCS60D | KIT-STCS100D Solar Suitcase 60W and 100W Owner’s Manual RNG Group Inc. (Renogy) 14288 Central Ave., Suite A Chino, CA 91710 1-800-330-8678...

  • Page 2: Product Description

    Product Description The Renogy Solar Suitcases combine highly efficient Renogy Solar Panels and a fully adjustable 10 Amp PWM Fully Adjustable Solar Charge Controller with LCD Screen to create an easy-to-use, ‘plug and play’ system. This system is specifically designed for mobile off-grid applications, where space and weight limitations are abundant.
  • Page 3 Components 10A PWM ViewStar LCD Junction box Charge Controller Connectors Latch 15 ft. Tray Handle Cable Tilting Stands Latch MC4 Connectors Aluminum frame with Fuse Holder with corner protection 7.5A mini fuse Battery Alligator Clips Also included but not depicted: Storage Case...

  • Page 4: Installation

    Installation 1. Unclip the two latches on the side of the unit and unfold the two panels outward. Extend the stands to support the solar panels. 2. The controller is mounted on metal plate. The plate is attached to the back of the panel with Velcro.
  • Page 5 3. Fully extend battery leads. Connect the red alligator clip to the positive (+) battery terminal and the black alligator clip to the negative (-) battery terminal on a 12V battery. Ensure that the connections are secure. Black Note: The kit should be connected to a battery generating at least 9V to start the charge controller. If the 12V battery is fully discharged, charge it for a short period of time by other means to reach 9V.
  • Page 6 5. Adjusting Battery Size and Type: Press to enter to the options, press to navigate to the menu options. 1.Monitoring 2.Device Set 3.Parameter Set 4.Load Set When the inverse cursor rests on 5. Rated Value, press to enter into the nominal parameter interface.
  • Page 7 Settings can be saved by pressing until the last adjustable parameter is reached, in this case will be the Battery Type. Press to choose between Save or Cancel. The inverse cursor will rest on the selected option. Press to confirm the selection. If the Save option is chosen, then the parameters will be saved.
  • Page 8 6. Find a clear sunlit area, free from overhanging tree branches, obstructions or shading. The panel should be facing south, and the tilting angle should be adjusted as follows: Summer �� = ���������������� – 15° Fall and Spring �� = ���� ���������������� Winter ��...
  • Page 9 Charge Controller LEDs Charging LED Indicator Fault LED Indicator Charging Indicator The green LED indicator will turn on whenever sunlight is available for battery charging. Under normal charging conditions, the green charging LED will stay on at all times. Color Indication Operating State Green...
  • Page 10 Battery  Over-voltage  Error while trying to measure the voltage  The temperature is above range (battery too hot) Load  Over load  Short  Discharging MOS Short  Error while trying to measure the voltage Device  Controller is operating too hot For trouble shooting please refer to the charge controller manual (Chapter 5).

  • Page 11: Frequently Asked Questions

    Frequently Asked Questions Q. What type of batteries can be used with this kit? A. Any sealed lead acid, gel, or flooded 12V battery (typically used in caravans, motorhomes, boats etc.) is appropriate for use with this kit. Q. Can this kit charge a 24V battery? A.

  • Page 12: Troubleshooting

    Troubleshooting  Check all connections to ensure they are secure and clean  Check polarity of the battery connection and make sure the battery generates at least 9V  Ensure the solar panels are exposed to sufficient light – ideally position them to face the sun directly ...
  • Page 13 Charge Controller Description Parameter Nominal System Voltage 12VDC Rated Charge Current Rated Discharge Current Maximum Battery Voltage Max. Solar Input Voltage* 48VDC Max. PV Input Power 120W (12V) Self-consumption** ≤18mA Charge Circuit Voltage Drop ≤ 0.24V Discharge Circuit Voltage Drop ≤...
  • Page 14 14.2V; x2/24V 14.4V; x2/24V 14.6V; x2/24V Default Boost Voltage 15V; x2/24V 15V; x2/24V 15V; x2/24V 13.8V; x2/24V 13.8V; x2/24V 13.8V; x2/24V Default 13.8V; x2/24V 13.8V; x2/24V 13.8V; x2/24V Float Voltage 14.2V; x2/24V 14.2V; x2/24V 14.2V; x2/24V 13.2V; x2/24V 13.2V; x2/24V 13.2V;...
  • Page 15 Temperature Compensation Description Parameter Temperature Compensation Coefficient Default -3mV/°C/2V (25°C ref) (TEMPCO)* 0mV/°C/2V -9mV/°C/2V Table 7 Temperature Compensation *Compensation of equalize, boost, float and low voltage disconnect voltage Environmental Parameters Environmental Parameter Working Temperature Range -35 °C to +55 °C (-31 °F to +131 °F) Storage Temperature Range -35 °C to +80 °C (-31 °F to +176 °F) Enclosure...

This manual is also suitable for:

Kit-stcs100d
