Summary of Contents for SAGEMCOM Siconia LoRa ATGHMP915 V2

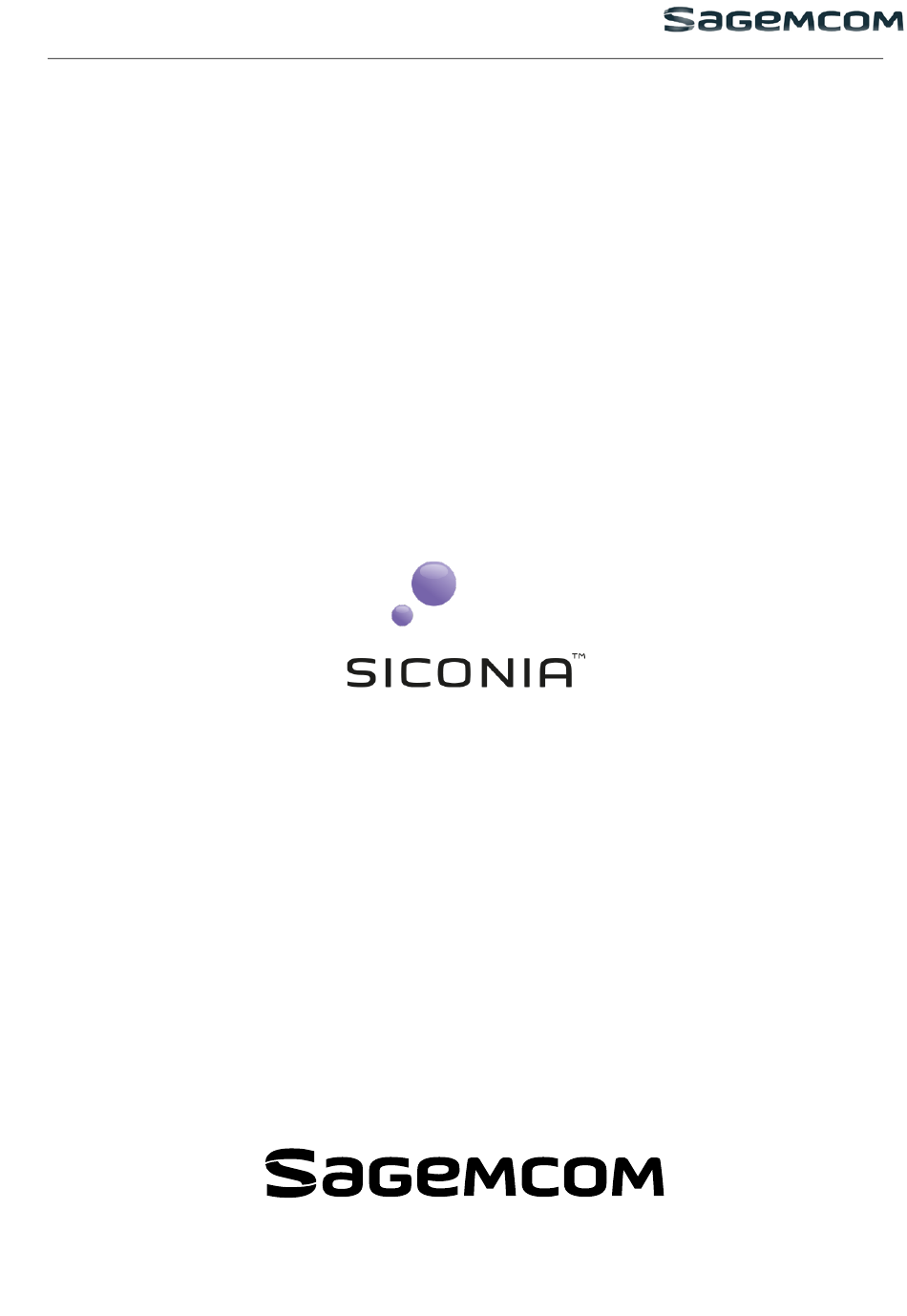

- Page 1 User Manual LoRa Motion Detector 915MHz ATGHMP915 V2 Ref : 300449356-R11-000-01 - 1 -...
-
Page 2: Table Of Contents
This is the user manual for the motion detector sensor called SICONIA C1 ATGHMP915 from Sagemcom. It presents the product and provides information on the installation and usage. Sommaire LEGAL NOTICE ......................... 4 MANUFACTURER / FABRICANT ..................... 4 SAFETY RECOMMENDATIONS / RECOMMANDATIONS DE SECURITE......4 REGULATORY NOTICES ...................... - Page 3 Revision history Revision Date Comment March 27, 2017 First edition Oct 2017 Legal notice improvment Abbreviation Abbreviation Description Long Range Wireless Access Network. Long-distance wireless network to LoRaWAN communicate products with very low consumptions. Unique identifier in the LoRaWAN network guaranteed by the manufacturer and DevEUI obtained for the IEEE.
-
Page 4: Legal Notice
This SAGEMCOM product and the final application of the SAGEMCOM product should be thoroughly tested to ensure the functionality of the SAGEMCOM product as used in the final application. The designer, manufacturer and reseller has the sole responsibility of ensuring that any end user product into which the SAGEMCOM product is integrated operates as intended and meets its requirements or the requirements of its direct or indirect customers. -
Page 5: Regulatory Notices
N'installez pas le produit en permanence à moins de 20 cm d'une personne. Tenir hors de la portée des enfants. Le non-respect de ces instructions peut entraîner des blessures corporelles ou des dommages matériels Cet équipement est conforme aux limites d'exposition aux rayonnements FCC/ISED établies pour un environnement non contrôlé. -
Page 6: Industry Canada Technical Acceptance Certificate Information
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: 1. l'appareil ne doit pas produire de brouillage, et 2. l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. -
Page 7: Product Description
P ro d u c t d e s c rip tio n The product is intended to capture informations on its orientation (verticality for exemple), its motion (typically acceleration), its environment (for exemple : surrounding temperature) and transmit those information by radio using LoRaWAN™... -
Page 8: Manufacturer Sticker / Etiquette Fabricant
30,7mm Push button / Bouton 70,8mm 31,2mm 36mm Fixture holes / Trous de fixation Figure 1 – Mechanical aspect (front view, back view et assembly) Manufacturer sticker / Etiquette fabricant The backside sticker defines the main product info. L’étiquette arrière contient les informations suivantes. Information Description Comment / Commentaire... - Page 9 Information Description Comment / Commentaire F: Code fabricant YY: Année de fabrication en 2 chiffres WW: Semaine de fabrication en 2 chiffres 3xxxnnnn : réutilisation de la fin du numéro DEVEUI The DevEUI is a hexadecimal The DEVEUI number: number made of 16 symbols DevEUI number for LoRa™...
-
Page 10: Characteristics
Characteristics Below is the main performance list of the product : Ci-dessous sont données les caractéristiques principales du produit : Features / Fonctionnalité In-door or Out-door use Use place / Utilisation Attached or transported (see note 1) Installation Fixe ou/et transportable (voir note 1) Continuous / Continue Usage / Condition d’utilisation Primary (non-rechargeable, non replaceable) lithium battery... -
Page 11: Installation
Features / Fonctionnalité Acceleration measurement Scale/Echelle :±2/±4/±8/±16 g Mesure d’acceleration Resolution : 1mg Temperature measurement sensor +/- 1°C accuracy Précision de la mesure de Resolution : 0.1 °C température Do not expose the product to more than 50 gauss magnetic field, this Magnetic sensor will definitely damage the magnetic sensor. -
Page 12: Logical Design
However, the accelerometer may be used in self-detection mode, with its own power requirement, while the main MCU is sleeping. The application script may be entered by the end-user, or any intermediate authorized entity, using the NFC interface, or, for mass production, directly embedded during Sagemcom manufacturing. For the... -
Page 13: Product Implementation
L’applicatif Javascript peut être intégré par l’utilisateur ou par un intermédiaire autorisé, via l’interface NFC, ou, en production de masse, directement intégré par le fabricant SAGEMCOM lors de la fabrication du produit. Dans le but de controler la mise à jour de cet applicatif par des entités autorisées, l’opération requiert l’usage d’un jeton privé. - Page 14 read or modify the AppKey key of the product, which will be transmitted to the user via an appropriate independent channel (the key is not part of the public inventory data). • In ABP mode, the product is equipped with a set of NwkSkey and AppSkey keys, also unreadable and not publicly accessible.
