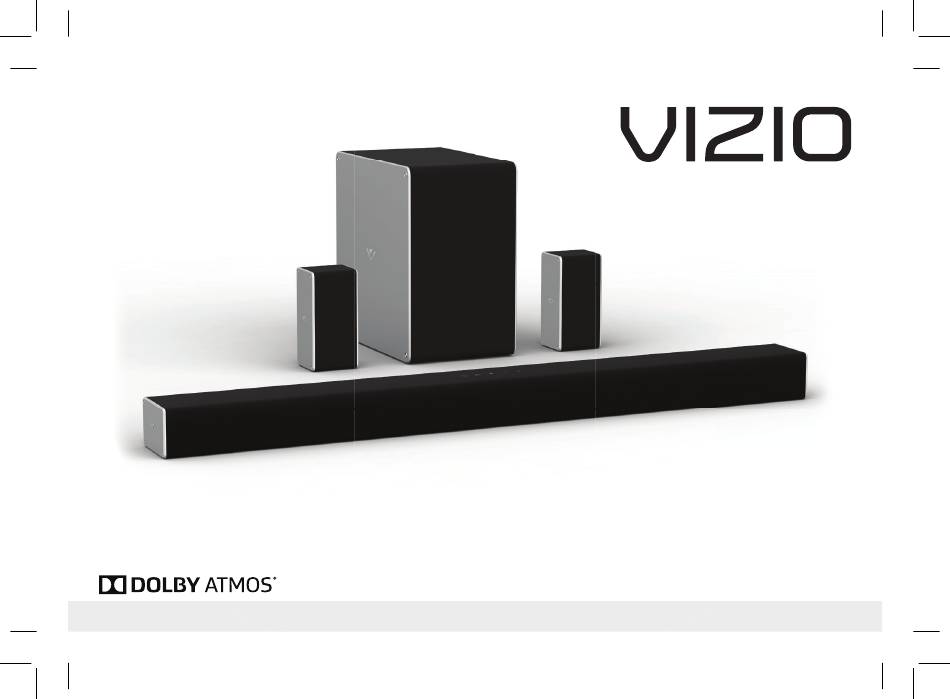

- Page 1 QUICK START GUIDE Model: SB36512-F6E VIZIO Home Theater Sound System with Dolby Atmos Please read this guide before using the product.
- Page 2 IMPORTANT SAFETY INSTRUCTIONS Your Unit is designed and manufactured to operate within defined design limits, and misuse may result in electric shock or fire. To prevent your Unit from being damaged, the following rules should be observed for its installation, use, and maintenance. Please read the following safety instructions before operating your Unit.
- Page 3 • When connected to a power outlet, power is always flowing into your Unit. To totally disconnect power, unplug the power cord. • Do not overload power strips and extension cords. Overloading can result in fire or electric shock. • The wall socket should be located near your Unit and be easily accessible •...
-
Page 4: Table Of Contents
TABLE OF CONTENTS Package Contents ............................5 Controls & Connections ..........................6 First-Time Setup...............................10 Proper Placement ............................16 Using the Remote ............................17 Using Your Tablet or Smartphone as a Remote ...................18 LED Indicators ..............................19 Using Button Combinations ...........................24 Programming the Sound Bar .........................25 Bluetooth Audio Pairing ..........................26 Using Bluetooth Mode ............................27 Advanced Setup ...............................28... -
Page 5: Package Contents
Front Back PACKAGE CONTENTS Side Angle ..10 ..16 ..17 2 x Satellite VIZIO Sound Bar Wireless Subwoofer Remote Control ..18 Speakers with 2x AAA Batteries ..19 ..24 ..25 ..26 ..27 ..28 ..29 Stereo RCA to 3.5 mm to 3.5 mm... -
Page 6: Controls & Connections
CONTROLS & CONNECTIONS Back of Sound Bar OPTICAL Power Port Digital Optical Audio In 3.5mm IN Analog Audio In (Stereo 3.5 mm) ENG - 6... - Page 7 Back USB* HDMI IN HDMI In USB In HDMI OUT Side Ethernet HDMI Out (ARC) Ethernet In * Supports .WAV and .MP3 file format playback only. ENG - 7...
- Page 8 Side Top of Sound Bar Angle Power Press to turn soundbar on or off . Input Press to change the audio source. Volume Increase or decrease the loudness of the audio. Bluetooth Input Hold to pair. (See ‘Bluetooth Audio Pairing’ for more information.) ENG - 8...
- Page 9 Back of Subwoofer Back of Satellite Speaker Pairing Button LED Indicator Power Port Power Button Satellite Speaker Port (Connects to subwoofer) Satellite Speaker Ports Connects to Left (blue cable)/Right (gray cable) Satellite Speakers ENG - 9...
-
Page 10: First-Time Setup
FIRST-TIME SETUP Back of Sound Bar CHOOSE ONE CABLE* and connect it to your tv 3.5MM TO DIGITAL OPTICAL RCA CABLE CABLE † GOOD BETTER * Not all TVs/Displays have the audio outputs shown † When using the Digital Input, if there is no audio: above. - Page 11 Back Side Do not use HDMI IN for First-Time Setup. See Advanced Setup if you would like to connect HDMI ARC HDMI devices (such as Blu-ray™ players, cable CABLE boxes, and game consoles) to your sound bar. BEST Connect the sound bar to your TV/Display* using HDMI cables send Video (Out) and receive Audio from the TV/Display.
- Page 12 Back of Sound Bar Connect the power cable to the sound bar AC IN as shown. Plug the power cable (suitable to your region) into an electrical outlet. The sound bar will automatically begin searching for an active input.* The LED indicators on the front of the sound bar will begin cycling in pairs through inputs until an audio source is detected.** Tip: Pressing the INPUT button will...
- Page 13 Connect the satellite speakers to the subwoofer using the included satellite speaker audio cables. Match the color coded speaker cable to the matching speaker port color. Blue for left surround and gray is for right surround. ENG - 13...
- Page 14 Connect a power cable to the subwoofer. Plug the power cable (suitable to your region) into an electrical outlet. The subwoofer will automatically power on and link to the sound bar when plugged in. The LED will glow solid to confi rm.
- Page 15 For example, if you connected your TV to AUX, set the sound bar to AUX. When needed, VIZIO recommends replacing the batteries that came with this remote with two, new Duracell ‘AAA’ alkaline batteries. ENG - 15...
-
Page 16: Proper Placement
PROPER PLACEMENT For the best surround sound experience, position the sound bar, subwoofer, and satellite speakers as shown. The sound bar should be close to ear level. You'll get the best sound effect if your ceiling is flat and 2.2 m to 3.6 m (7.5 ft to 12 ft) high. Pres (Chan Sound bar is centered... -
Page 17: Using The Remote
USING THE REMOTE Display Displays Sound Bar Settings Power Press to turn on or off . Menu Press to access the menu Input settings. Press to change the input Enter/Play/Pause source Press to select an option. Press to play or pause. Previous Press to return to previous track. -
Page 18: Using Your Tablet Or Smartphone As A Remote
USING YOUR TABLET OR SMARTPHONE AS A REMOTE Download the SmartCast Mobile™ App and turn your smartphone or tablet into a remote to control your sound bar system. To use your smartphone or tablet as your SmartCast Mobile remote: • Download the SmartCast Mobile App from the App Store or Google Play Store. -
Page 19: Led Indicators
Press the Enter button on the remote. The sound bar will be discoverable for (When searching for device) Pairing 15 minutes. You can now search for the sound bar (VIZIO SB36512*) using Flash from Bottom to Top your Bluetooth Device. The sound bar will power down if no device is found. - Page 20 Function LED Behavior Description Press the Next/Previous button to increase/decrease the presence of dialog Center Levels Two center LEDs in the center channel. The LED indicators will move to the top when the indicate Dialogue Center dialog presence is increased and to the bottom when the dialog presence is is centered.
- Page 21 Function LED Behavior Description Surround On Surround On/Off Press the Next/Previous button to enable/disable surround sound. When disabled (Off), the satellite speakers and satellite height channels will be Surnd disabled. Surround Off Press the Next/Previous button to toggle between 3 preset height channels. When On is selected, the height speakers are turned on.
- Page 22 TV Remote On TV Remote Press the Next/Previous button to enable/disable VIZIO TV Remotes. When enabled (On), you can use a VIZIO TV remote control to turn on the sound bar VZtv Rmt On TV Remote Off (using the TV Volume Up button) and control volume.
- Page 23 Function LED Behavior Description Press the Next/Previous and Play buttons to select and confirm enabling Single light with Wi-Fi Setup or disabling Wi-Fi Setup on your sound bar. Wi-Fi Setup allows the SmartCast sound upon WiFi Setup Mobile App to reconnect the sound bar to Wi-Fi or paired bluetooth devices in confirmation the event of a lost connection or if a new device is being paired.
-
Page 24: Using Button Combinations
Note: This will erase all settings and preferences that you have set. Learn Enable VIZIO VIZIO TV Enable/disable the use of a VIZIO TV remote control to power on and TV Remote Remote adjust the volume of the sound bar. To enable/disable this function,... -
Page 25: Programming The Sound Bar
PROGRAMMING THE SOUND BAR You can program your sound bar to accept TV remote IR commands. Press the Menu button on the remote, then use the Up/Down buttons to navigate to Prg Remote. Use the Next/Previous buttons to toggle through Learn Vol -, Learn Vol +, and Learn Mute. -
Page 26: Bluetooth Audio Pairing
Once the device is paired, the LED Indicators will stop flashing. Top of Sound Bar You can now search for the sound bar (VIZIO SB36512*) using your Bluetooth device. For more information, refer to the user documentation that came with the device. -
Page 27: Using Bluetooth Mode
USING BLUETOOTH MODE Your sound bar supports music streaming from smartphones, tablets, and computers with Bluetooth capability. Device compatibility will vary, see your device’s documentation for more information. Once you have paired your source device to the sound bar, as long as you stay within range of the sound bar, your device should remain paired. -
Page 28: Advanced Setup
Front ADVANCED SETUP Back of Sound Bar Back Side DIGITAL OPTICAL 3.5MM TO HDMI CABLE Angle CABLE RCA CABLE USB Thumb Drive* Tablet/MP3 Player/Laptop Network Media Player Game Console Supports .WAV and .MP3 fi le format playback only. ENG - 28... -
Page 29: Advanced Setup - Hdmi
ADVANCED SETUP - HDMI Connect to HDMI (ARC) port on your TV Back HDMI cables transmit both audio and video. To view video from these devices, turn the sound bar on, then set the HDMI CABLE sound bar input to HDMI In. Set your Thumb ive* TV input to the HDMI port to which the... -
Page 30: Connecting With Hdmi Arc
The following steps are for use with a VIZIO TV, steps may diff er by TV manufacturer. See your TV’s user manual for more information. CEC Function naming may diff er by TV manufacturer. See your TV’s user manual for more information. - Page 31 Front Back of TV* Connect to HDMI (ARC) port on your TV Back * HDMI ARC port location may diff er by TV manufacturer. See your TV’s user manual for more information. ENG - 31...
-
Page 32: Connecting A Subwoofer
The subwoofer has already been paired with the sound Back What does pairing mean? bar by VIZIO. However, the subwoofer may need to be Pairing means to wirelessly connect. re-linked to the sound bar if there is no sound coming Side from the subwoofer. -
Page 33: Wall-Mounting The Sound Bar
Front WALL-MOUNTING THE SOUND BAR Wall-Mount Screw Holes Back of Sound Bar Back Insert the two wall-mount screws into the wall-mount screw holes, and then Side tighten them with a Phillips screwdriver. Angle Place the included wall mounting template against the wall under your TV. Mark the two bracket holes using a pencil. - Page 34 Be sure your screws are attached to wood studs, drywall anchors (for drywall), or concrete anchors (for brick/concrete walls). Screws for attaching the brackets to the wall are not included. Choose the screw type and length appropriate to your home’s construction. If in doubt, consult a professional installer. *Bracket Screw Not Included with sound bar Suggested Screw Size: 3.5 diameter.
-
Page 35: Wall-Mounting The Satellite Speakers
WALL-MOUNTING THE SATELLITE SPEAKERS To wall-mount the satellite speakers: *Bracket Screw Not Included with Attach the wall mount screw to the back of sound bar the satellite speaker. Suggested Screw Size: 3.5" diameter Secure the wall mount bracket to the wall. 1.63 mm length Bracket screw is not included. -
Page 36: Help & Troubleshooting
HELP & TROUBLESHOOTING • Press the POWER button on the remote control or on the top of your Sound Bar. There is no power. • Ensure the power cord is securely connected. • Plug a different device into the electrical outlet to verify that the outlet is working correctly. Increase the volume. -
Page 37: Frequently Asked Questions
You can verify content via the SmartCast Mobile App. Download the SmartCast Mobile App and sync your sound bar. Go to Settings >System Information to see what type of audio is being played. Visit VIZIO.com/Setup for more on the SmartCast Mobile App. How do I know if I'm playing Dolby Atmos content? •... -
Page 38: Limited Warranty
You will be responsible for restoring all applicable user data and downloaded applications onto the product returned to you. In case of replacement, VIZIO cannot guarantee that you will receive the same model of product. If your model is not available, a product of equal value and similar style will be provided, or you may request a refund of the original purchase price. - Page 39 If you are a consumer and VIZIO fails to comply with these terms, to the extent permitted by law, VIZIO may be responsible for loss or damage you suffer that is a foreseeable result of VIZIO breaking the terms of this warranty or its failing to use reasonable care and skill, but VIZIO is not responsible for any loss or damage that is not foreseeable.
-
Page 40: Specifications
Specifications Forward Firing - Three 4.2 cm x 7.0 cm Full Range Driver for Each Channel (1 for left, 1 for right, 1 for center) Two 4.4 cm x 7.3 cm Passive Radiators for Extended Bass Response (1 for left, 1 for right) Sound Bar: Upward Firing - Two 4.2 cm x 7.0 cm Full Range Driver for Each Channel (1 for left, 1 for right) Satellite Speakers:... -
Page 41: Legal & Compliance
Disposal of Old Equipment and Batteries Declaration of Conformity (DoC) Only for European Union and countries with recycling systems Hereby, Vizio Inc declares that this product is in compliance with the essential requirements and These symbols on the products, packaging, and/or other relevant provisions of Directive 2014/53/EU. - Page 42 Bluetooth SIG, Inc. and any use of ® such marks by VIZIO,Inc. is under license. Other trademarks and trade names are those of their respective owners. HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
