Finglai XMT*-JK408 Series Instruction Manual

XMT*-JK408 series four-way temperature controllers
Ⅰ、Summary
XMT*-JK408 series intelligent temperature control instrument is a new meter to meet the
market needs. The meter is controlled by single chip microcomputer, every channel setting value
and some parameters can be set up independently. It has the advantages of small volume, low
power consumption, simple operation, easy control, stable operation, reliable, economical
characteristics. It is widely used in the temperature automatic control systems of machinery、
chemical、ceramics、light industrial、metallurgy、petrifaction and heat treatment, and so on.
Ⅱ、Primary technical standard:
1、 Input signal: CU50（-50.0～150.0℃） 、Pt100（-19.9～600.0℃） 、
2、Accuracy: ≤± 0.5%F.S± 1B Cold end compensating deviation≤± 2℃
3、Relay output contact capacity: AC220V/5A (resistance load) or AC220V/0.3A (perceptual load)
4、Driving solid relay signal output: driving electric current≥15mA, voltage≥9V.
5、Control mode: difference control-on/off and PID control
6、Input power: AC85~242V 50/60Hz
7、Environment Temperature: 0 to 50℃, Humidity: ≤85%RH
Ⅲ、Instrument panel instruction(consult)

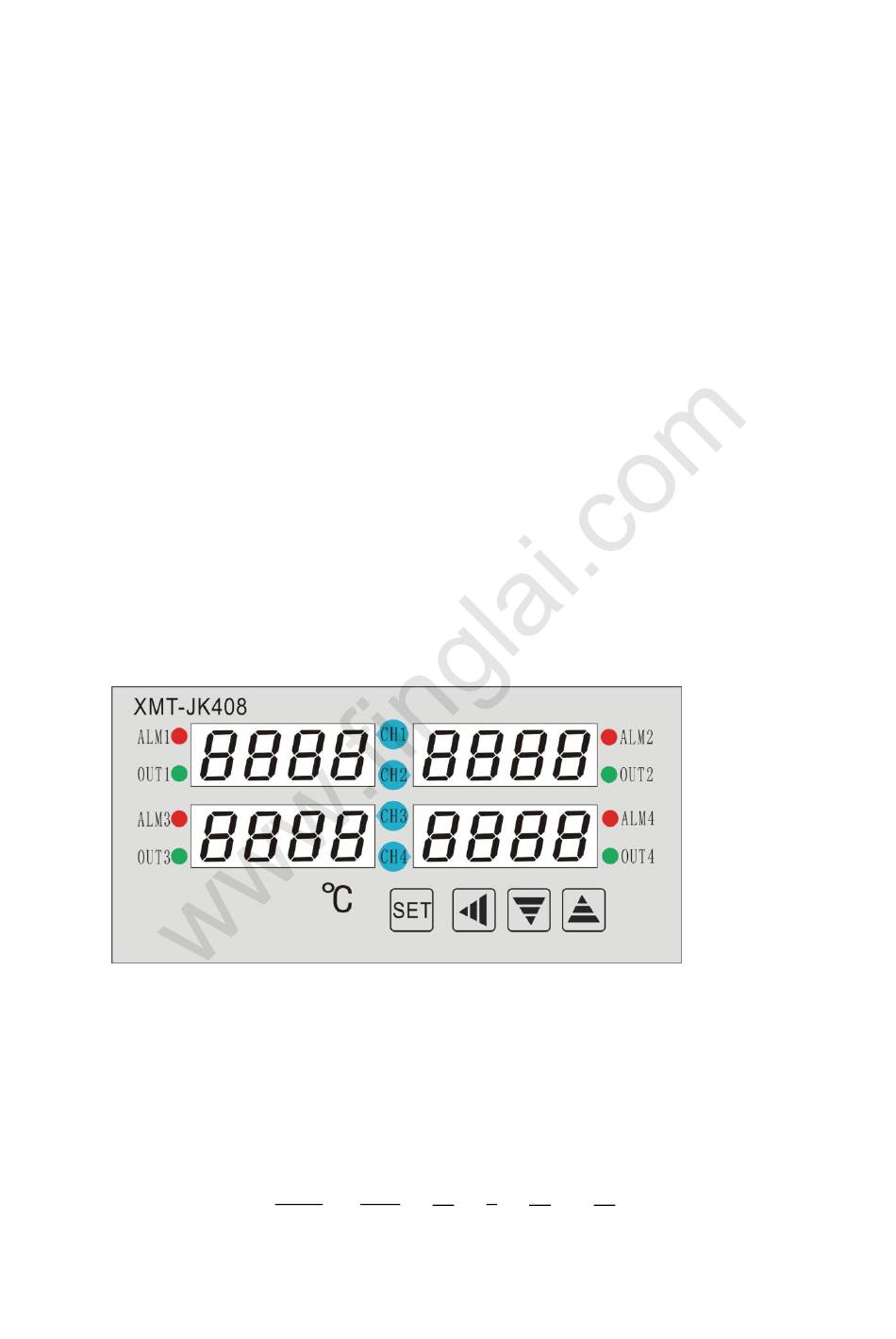

ALM1～ALM4：The first channel to the four channel alarm output indicator light ( red)；
OUT1～OUT4：The first channel to the four channel control output indicator light ( green )；
CH1～CH4 key: The first channel to the four channel corresponding channel parameter setting key；
SET key：Function setting key；
▼ key： Data decrease key；
Ⅳ、M
odel significance
⑴Meter faceplate and Installation dimension(mm)：160×80×130； 152×76；
⑵Design serial number：Four channel independent control meter, PID and ON/OFF control can
Instruction manual
K（0～1300℃） 、E（0～700.0℃） 、J（0～900.0℃）
◄ key： Shift key；
▲ key： Data increase key；
：
XMT - JK 4
(1) (2) (3) (4) (5)
□ □ □
8
(6)
1
