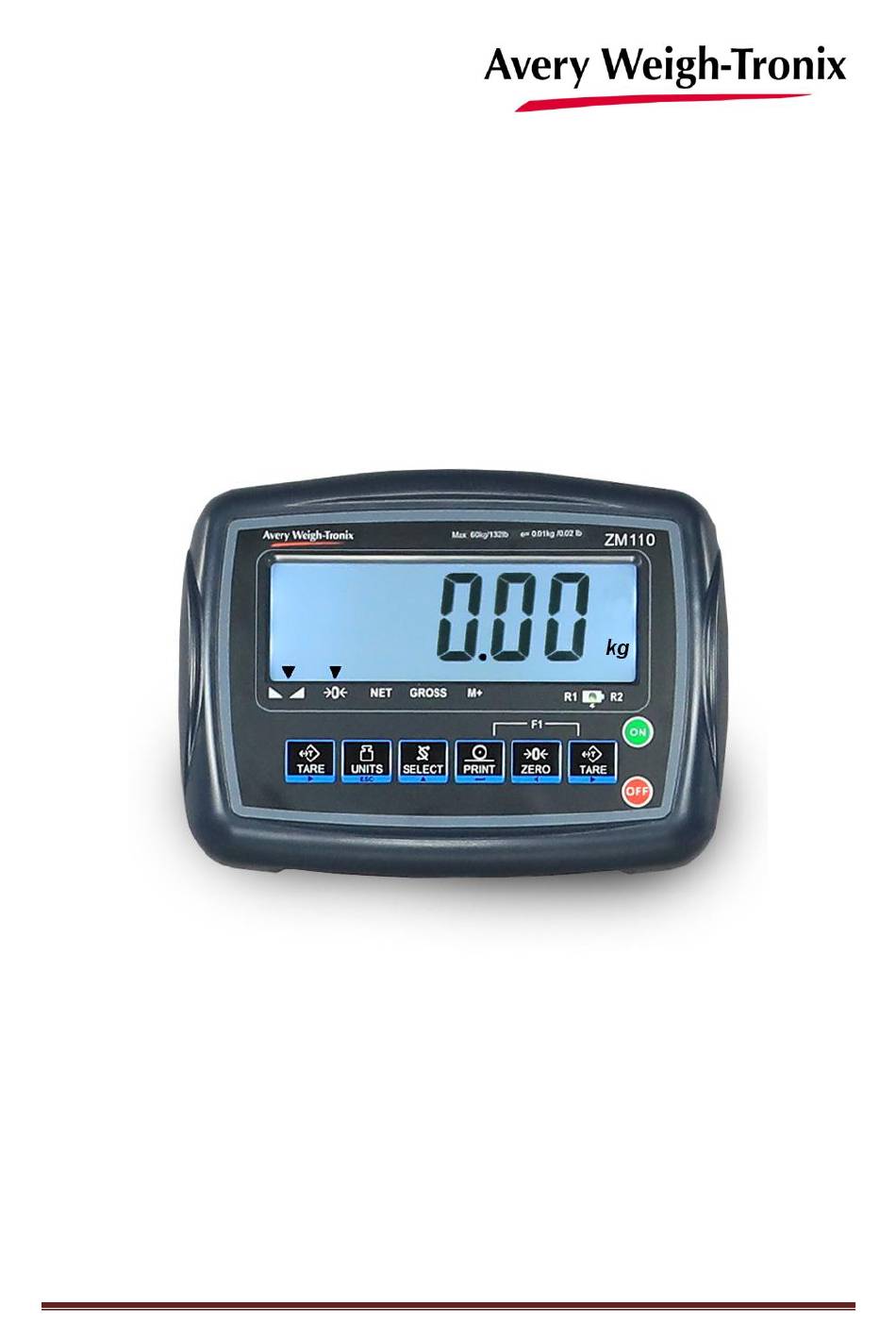

User Manual
Model: ZM 110
Bench Scale
AWT35-501813
Issue AA
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZM 110 and is the answer not in the manual?

Questions and answers

Summary of Contents for Avery Dennison ZM 110

  • Page 1 User Manual Model: ZM 110 Bench Scale AWT35-501813 Issue AA Page 1...
  • Page 2 Avery Weigh-Tronix is a trademark of the Illinois Tool Works group of companies whose ultimate parent company is Illinois Tool Works Inc (“Illinois Tool Works”). Copyright © 2019 Illinois Tool Works. All rights reserved. No part of this publication may be reproduced, stored in an electronic retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise without the prior written consent of the copyright owner, or as permitted by law or under license.

  • Page 3: Table Of Contents

    Table of Contents 1. General information and Warnings page 6 FCC Declaration of Compliance - Déclaration de conformité..……...…………..… Training - Formation……………………..………………………………...…………… Battery Safe Disposal - Élimination sécurisée des batteries……...………………… Routine Maintenance - Entretien de routine……………………………………..… Cleaning the Machine - Nettoyage de la machine………………………….……… Sharp Objects - Objets tranchants………………………….………………...……..
  • Page 4 User Menu……………………..……………………………...……….………….……..…. User Menu Levels………………….………………...……….……………………..… User Functions Descriptions [UF].………………….……….…………………..…… Supervisor Menu..………………………….……………..………………….……..……. Supervisor Menu Levels……..……….………………………………………..……... Supervisor Functions Descriptions [LF].…………..….……………………..….…... Quick Calibration Menu……..………………………..……………………….……..……. Quick Calibration Menu Levels…...…………….……………………...……..……… Quick Calibration Functions Descriptions [ECF]…..…………………………..…… 5. Scale Configuration [LF 2] page 19 6. Calibration page 20 Enabling the Calibration Procedure..….………………………………………………..
  • Page 5 Manual revision history Current Issue Date Created Details of Changes Draft Jan. 2019 Please be aware this product contains a lead acid battery which MUST be removed and disposed of safely prior to any disposal of the scale. AWT35-501813 Issue AA Page 5...

  • Page 6: General Information And Warnings

    1. General Information and Warnings 1.1. FCC Declarations of Compliance - FCC Déclaration de conformité United States This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 7: Training - Formation

    1.2. Training - Formation Do not attempt to operate or complete any procedure on a machine unless you have received the appropriate training or read the instruction books. Ne pas tenter d’utiliser la machine ou lui appliquer une quelconque procédure sans avoir reçu une formation adaptée ou lu les manuels d’instruction.

  • Page 8: Introduction

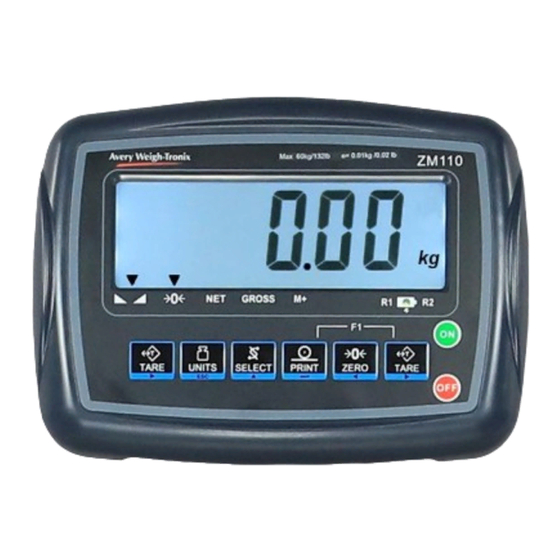

    2. Introduction The ZM110 is a general purpose indicator ideal for connecting to most bench and floor scales. This indicator can easily be desk or pole mounted and comes with an AC power adaptor along with a rechargeable lead acid battery to allow the scale to be used in applications where power outlets are limited.
  • Page 9 2.2.2 Scale Installation 1. Attach the support column to the bracket at the back of the scale base using the three mounting screws. Use a 3mm hex (Allen) key to tighten the screws. See Figure 3. Fig. 3 Insert column into bracket and secure with three screws 2.

  • Page 10: Battery Operation

    2.3. Battery Operation The ZM110 can be operated from a 6V 4Ahrs battery located inside the indicator or plugged into an acceptable power outlet. Battery life is approximately 107 hours with the backlight off. When the battery needs charging this symbol, , appears in the upper left corner of the weight display.

  • Page 11: Error Codes

    2.5.2. Operation Keys Keys are shown below along with their functions. Some keys have secondary functions. Press and hold the OFF key to turn off the scale. “oFF” will be displayed for 2 seconds. Press the ON key to turn on the scale. The scale will run through a display test before displaying 0.000.

  • Page 12: Scale Operation

    3. Scale Operation This section covers the scale operations of simple weighing, counting and hold. The steps for various kinds of weighing are explained in the following pages. A warm-up time of 15 minutes is required to stabilize the measured values. 3.1.

  • Page 13: Counting Mode

    3.3. Counting Mode The ZM110 Counting mode has been designed to allow the operator to easily carry out basic sampling and counting routines on this scale even if the scale is mainly used for general weighing applications. By pressing the UNITS key until Pcs is illuminated on the display, the scale can now be quickly used to sample parts ready for counting.

  • Page 14: Setting The Checkweighing Limits

    Example: annunciators lit when acceptable limits are: LO < 1.00 kg and HI > 4.00 kg 3.4.1. Setting the Checkweighing Limits When the scale is ON, press PRINT and TARE keys together; UF-1 will be displayed. Press TARE (►) key; UF-2 will be displayed.

  • Page 15: User Menu

    4. Menus There are three menus that allow to configure, enable or execute specific functions or options. pages • User Menu UF – 1 ~ 11 • Supervisor Menu LF 1 ~ 8 • Quick Calibration Menu ECF – 1 ~ 3 4.1.

  • Page 16: User Functions Descriptions [Uf]

    4.1.2. User Functions Descriptions [UF] There are 9 Setup Functions. UF-1 Diagnostic: use this menu to check or verify the performance of the indicator. The diagnostic tests available include: Scale A to D to view output from the connected scale base or load device, Internal D-Value, and Battery Voltage.

  • Page 17: Supervisor Menu

    4.2. Supervisor Menu In the Supervisor Menu there are various submenus available to configure system parameters, specific sections of the operating modes and the calibration feature (see also chapter 6. Calibration). 4.2.1. Supervisor Menu Levels [LF] Navigate the options by pressing ZERO (◄), TARE (►) and increase a numeric value by SELECT (▲) key.

  • Page 18: Quick Calibration Menu

    Factory default: SPEEd 1 (standard 15Hz) LF 5 Zero Tracking: use this to define a ± 0 /5 divisions range around zero. When scale weight is not at the center of zero but inside this range, ½ of the weight will be subtracted until the weight is inside the center of zero region.

  • Page 19: Scale Configuration [Lf 2]

    4.3.2 Quick Calibration Functions Descriptions [ECF] There are 3 Calibration Functions. ECF-1 Calibration: ZERO / SPAN. Test weight should be at least 1/3 of the max. capacity ECF-2 Zero Calibration (only) ECF-3 Span Calibration (only) 5. Scale Configuration [LF 2] Enter the function LF 2 to set the units, counting mode, calibration units, decimal position of the separator and division size.

  • Page 20: Calibration

    6. Calibration It is recommended to perform only the very first calibration following the function LF 1 in the Supervisor Menu (page 18). To prevent any unintentionally amendment of the scale configuration, all the next Calibration should be performed entering the Quick Calibration Menu (page 19). 6.1.

  • Page 21: Stamped Calibration

    LF-2 CALIBRATION SETTINGS • Default setting for calibrating in kg with counting function active is [110101] • Default setting for Legal-for-Trade calibrating in kg is [110001]. Counting function must be turned off for Legal-for-Trade use. The calibration steps following the function LF 1 or entering the Calibrations Menu ECF are the same. For this reason, only the ECF-1 is described below.

  • Page 22: Replacement Parts

    7. Replacement Parts Description ZM110 indicator AWT05-509350 Replacement battery : DJW6-4.0 (6V 4.0AH) sealed lead acid battery RS232 kit AWT15-501905 Replacement Power Supply switch mode input 100 to 240VAC output: AWT15-501904 12V 1A with positive centre) with UK – EU – USA plug adaptors Plug Adaptors AUS AWT25-502470 100 kg...
  • Page 23 AWT35-501813 Issue AA Page 23...
