Honeywell ST699 Datasheet

Electronic dual zone timer
Hide thumbs
1
2
3
4
5

Advertisement

Quick Links

Download this manual
FEATURES
•
24-hour programme
•
Independent heating and hot water channels
•
One or Two ON/OFF periods per day
•
Built-in programme
•
Temporary programme override/advance
•
7-day battery back-up
•
Compact size
•
AM/PM or 24 hour clock format (factory option)

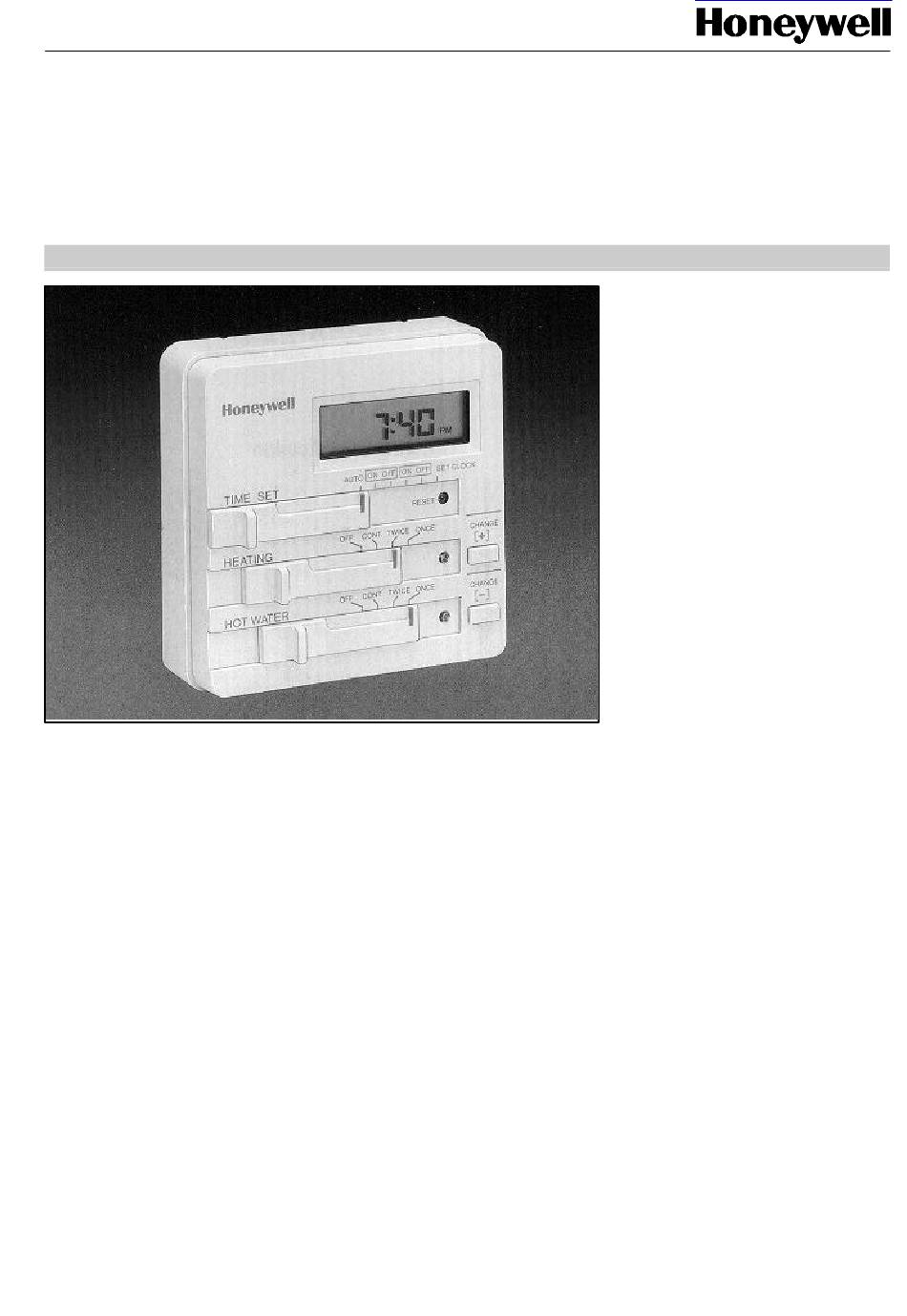

The ST699 electronic dual zone timer
is used to control gravity, primary or
fully pumped central heating systems
requiring a single 24 hour programme
with two ON/OFF periods per day.
ST699 incorporates a simple and
intuitive programming concept which
established its predecessor as the
leading electronic dual zone timer on
the market.
ST699 is designed for European CEN
approval.
•
Wallplate compatibility with 7-day version (ST799)
•
10 minute programme resolution
•
3 A resistive/inductive (@ 0.6 pf) 230 V~ SPDT relay
rating
•
Simple/intuitive programming
•
Surface or wallbox mounting options
•
Pack contains everything for immediate installation
ST699
ELECTRONIC DUAL
ZONE TIMER
PRODUCT DATA
EN0R 8439 R0

Advertisement

loading
Need help?

Need help?

Do you have a question about the ST699 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Honeywell ST699

Summary of Contents for Honeywell ST699

  • Page 1 ST699 ELECTRONIC DUAL ZONE TIMER PRODUCT DATA The ST699 electronic dual zone timer is used to control gravity, primary or fully pumped central heating systems requiring a single 24 hour programme with two ON/OFF periods per day. ST699 incorporates a simple and...

  • Page 2: Specifications

    Remove the subbase from the timer by depressing the securing clip A and pulling the two halves apart. See fig. 1 The ST699 can either be mounted onto the wall surface or a flush mounted UA1 (with 60.3 mm pitch mounting holes) using the screws supplied.
  • Page 3 See fig. 2 The ST699 is designed for fixed wiring only and must be wired in accordance with the latest IEE wiring regulations.

  • Page 4: Final Assembly

    ST699 ELECTRONIC DUAL ZONE TIMER SUNDIAL PLAN WIRING DIAGRAMS Y-Plan S-Plan V4043H V4043H CYLINDER 2 PORT ZONE VALVE 2 PORT ZONE VALVE ROOM STAT. MID-POSITION VALVE CYLINDER ROOM STAT. STAT. HEATING WATER STAT. 3 A max PUMP PUMP BOILER BOILER...
  • Page 5 Check out our full range of Heating Products Central Heating Controls Honeywell Heating Controls Danfoss Heating Controls Radiator Valves Fernox Sentinel Magnaclean Warmup underfloor heating Water Heaters Hand Dryers...
