Manual

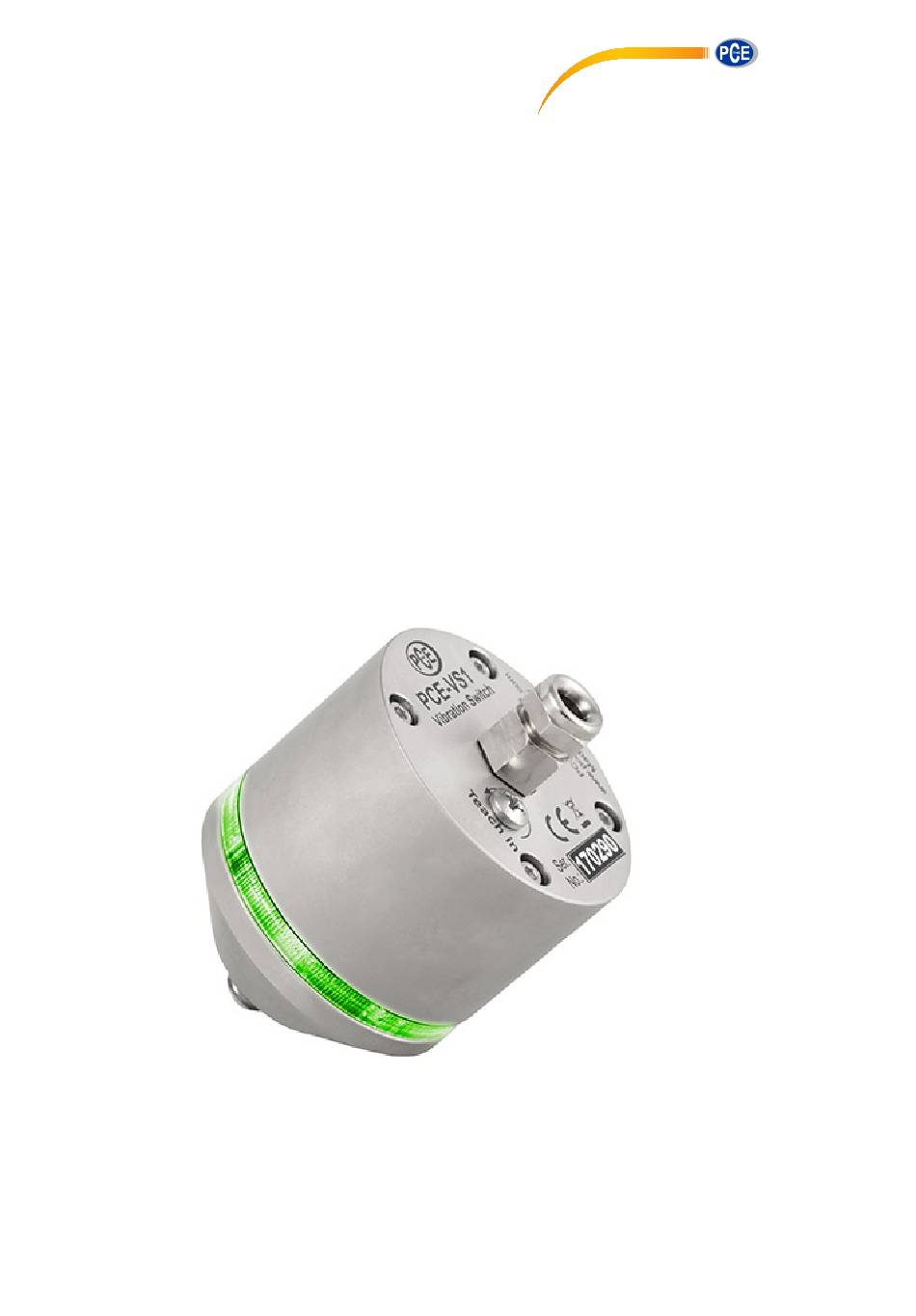

Vibration Analyser Sensor Switch
PCE-VS 10
Advertisement
Summary of Contents for PCE Americas PCE-VS10
- Page 1 PCE Americas Inc. PCE Instruments UK Ltd. 711 Commerce Way Units 12/13 Suite 8 Southpoint Business Park Jupiter Ensign way FL-33458 Hampshire / Southampton United Kingdom, SO31 4RF From outside US: +1 From outside UK: +44 Tel: (561) 320-9162 Tel: (0) 2380 98703 0...
-
Page 2: Application And Operation
Instruction Manual Vibration Switch VS10 Application and Operation The instrument enables simple and cost efficient monitoring of vibration on rotating machines, for example, in the frame of preventative maintenance to DIN/ISO 10816. Likewise, it can be used as a limit switch for a diverse range of processes involving vibration and shock. - Page 3 Figure 2: Parameter Program To establish a connection to VS10, press Search VS1x. The program searches COM-Ports 1 to 50 for the in- strument. As soon as it has been found the status report VS1x connected appears and the instrument settings are read.
-
Page 4: Installation And Operation
The Teach-in factor, is the factor by which the vibration amplitude currently being measured is multiplied, when by pressing the Teach-in (Figure 2) button, the alarm limit is automatically set. The Teach-in button is accessible without opening the casing, you simply need to remove the screw cap. It is useful for setting the alarm limit when there are no specific values available. -
Page 5: Technical Data
Technical Data Monitoring Values Peak value and RMS value of vibration acceleration or vibration velocity Measuring Range 0.1 to 1000 m/s² acceleration, velocity frequency dependent High Pass Filter 0.1/2/5/10/20/50/100/200/500/1000 Hz (acceleration) 2/5/10/20/50 Hz (velocity) Low Pass Filter 0.1/0.2/0.5/1/2/5/10 kHz (acceleration); 1 kHz (velocity) Relay Output PhotoMOS relay;...
