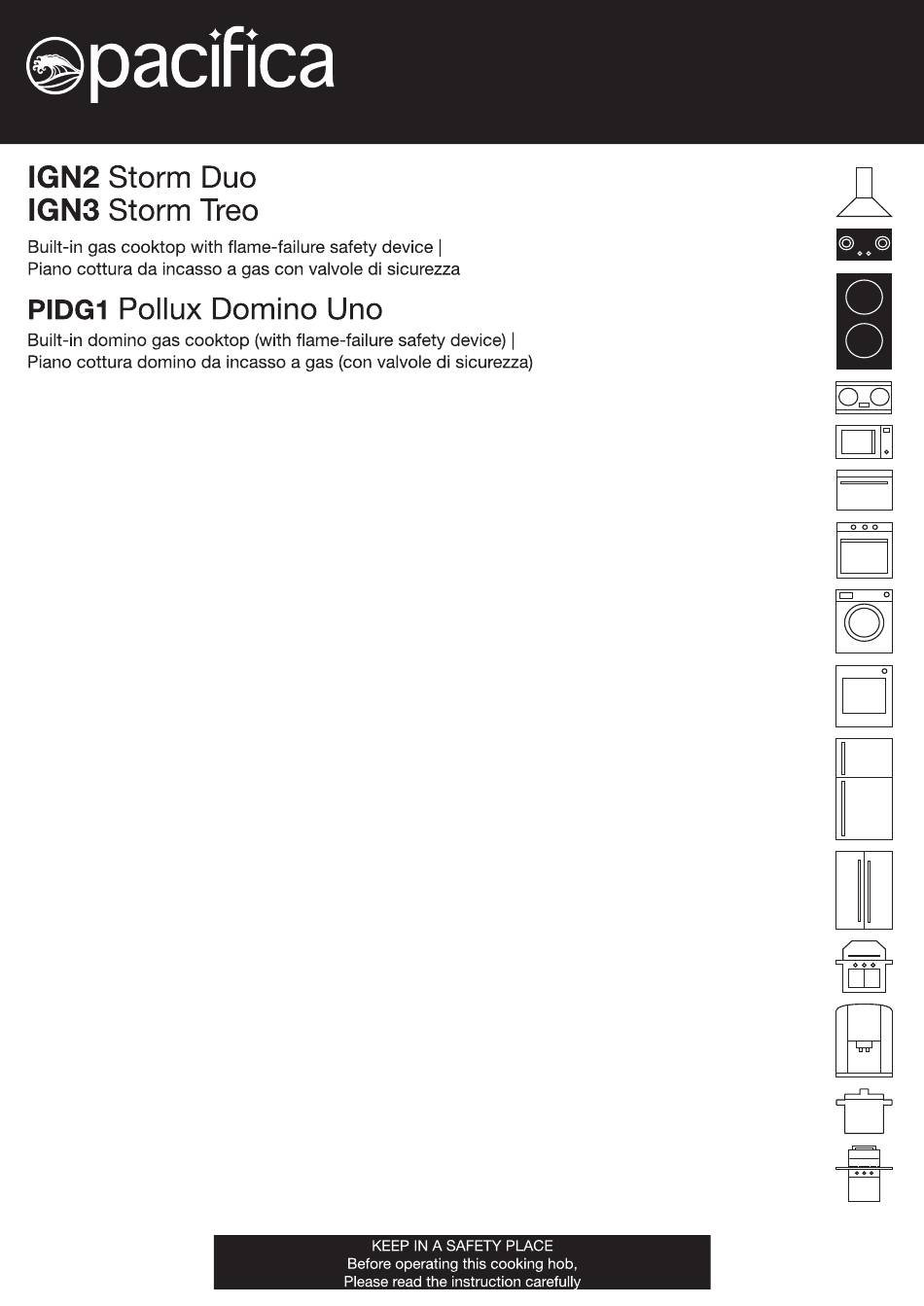

Summary of Contents for Pacifica IGN2 Storm Duo
- Page 1 appliances...
- Page 2 Congratulations! Your purchase of a PACIFICA®/ PACIFIC® product attests to the importance you place upon the quality and performance of the major appliances you use. With minimal care, as outlined in this guide, your product is designed to provide you with years of reliable service.
-
Page 3: Table Of Contents
CONTENTS Specification Installation diagram Guide to gas hob IMPORTANT SAFETY INSTRUCTIONS a. Electrical safety b. Installation & use c. During cooking pg10 d. Children pg11 e. To protect the appliance pg12 Appliance maintenance pg12 g. Other safety notes pg13 BEFORE USING THE GAS HOB pg14 OPERATION INSTRUCTIONS a. -
Page 4: Specification
SPECIFICATION Model IGN2 Ignition power 1.5 V.D.C (D size battery) Gas type L.P.G Default / N.G Optional Capacity 5.0kw x 2 Product dimension W860 x D470 x H150(mm) Model IGN3 Ignition power 1.5 V.D.C (D size battery) Gas type L.P.G Default / N.G Optional Capacity 5.0kw x 2 &... -
Page 5: Installationdiagram
INSTALLATIONDIAGRAM Figure 3 (PIDG1) igure 1 (IGN2 & IGN3) Figure 2 (IGN2 & IGN3) - Page 6 11. For pipe and gas tube connection, the installation has to be done by the Pacifica & Pacific authorized technician and the installer has to make sure the connected parts are connected firmly with no leakage. Leakage test is necessary here and only test it with soapy solution instead of lighter or flame.
-
Page 7: Guide To Gas Hob
GUIDE TO GAS HOB... -
Page 8: Important Safety Instructions
1. Inspect the gas hob for shipping damage before installation. Do not install or operate a damaged unit and contact the Pacifica and Pacific dealer if there is any damage found. 2. This appliance should be installed at a safe height and appropriate place for users to access it safely. - Page 9 120 17. Do not allow flammable objects come into contact with the gas hob. 18. The installation, repair and maintenance work should be carried out by the Pacifica and Pacific authorized technician or service professional. The installation, repair and maintenance work done by the unauthorised individuals could be dangerous and it may void the given warranty.
-
Page 10: During Cooking
23. Do not use cookware that is much smaller than the trivets of the gas hob as this may burn and damage the cookware when it is covered by the upcoming flame. It may also cause injury and burn to the user during use as well. 24. -
Page 11: Children
11. When opening the lid of the cookware during cooking. Open the lid slightly in the beginning to let the heating steam or air to escape upward first. This step is necessary as to avoid scalding and burning on the user. 12. -
Page 12: To Protect The Appliance
3. Make sure the children do not have any contact with the gas hob when the gas hob is in use. 4. The gas hob could be still dangerous to the children as there are remaining heat within the gas hob therefore ensure that the children are kept away from it at a safe distance. 5. -
Page 13: Other Safety Notes
5. Do not open the top plate of the gas hob and clean the internal parts as it damage the unit and it will void the warranty of the gas hob. Contact the Pacifica & Pacific Technical Service Department for servicing and cleaning. -
Page 14: Before Using The Gas Hob
15. Do not light up anything or turn on appliances and making phone call where there is gas leakage. Shut off the gas supply, open all the windows and doors and contact the Pacifica & Pacific Technical Service Department later for servicing and repair. BEFORE USING THE GAS HOB It is necessary to clean the gas hob before the user use it for the first time. -
Page 15: To Turn On The Burner
If the control knob cannot stops at 12 o’clock position or at the minimum flame output position but exceed it then the user has to shut off the gas supply at the gas regulator on top of the gas tank and call the Pacifica & Pacific Technical Service Department for repair. -
Page 16: Maintenance And Cleaning
10. Never use hard brushes, scouring cloths, steel wool and other abrasive materials to clean this appliance. 11. To clean the gas hob’s internal base, the user can only call the Pacifica & Pacific Technical Service Department for such cleaning service. - Page 17 12. Use a sponge and solution of warm water plus non abrasive liquid detergent to clean the appliance’s top plate, control knobs, burners and other parts and then wipe it dry with a clean soft cloth. 13. Stainless steel surfaces of the appliance can be cleaned by using a non-abrasive stainless steel cleaner.
-
Page 18: Troubleshooting
TROUBLESHOOTING Problem Possible cause Solution - The gas tank is empty - Replace it with a refilled gas tank - The gas pressure regulator on the - Replace it with a gas tank is spoiled pressure regulator - The gas pressure regulator is off - Turn off the gas hob first and then turn on the gas regulator and try ignite the gas hob again... -
Page 19: Protecttheenvironment
In the event that the user cannot correct any of the stated or not stated technical problems, please do not hesitate to contact the Pacifica Service Care Department for further services or consultations.
