AprilBrother AB Band Quick Start Manual

Wristband beacon

Hide thumbs

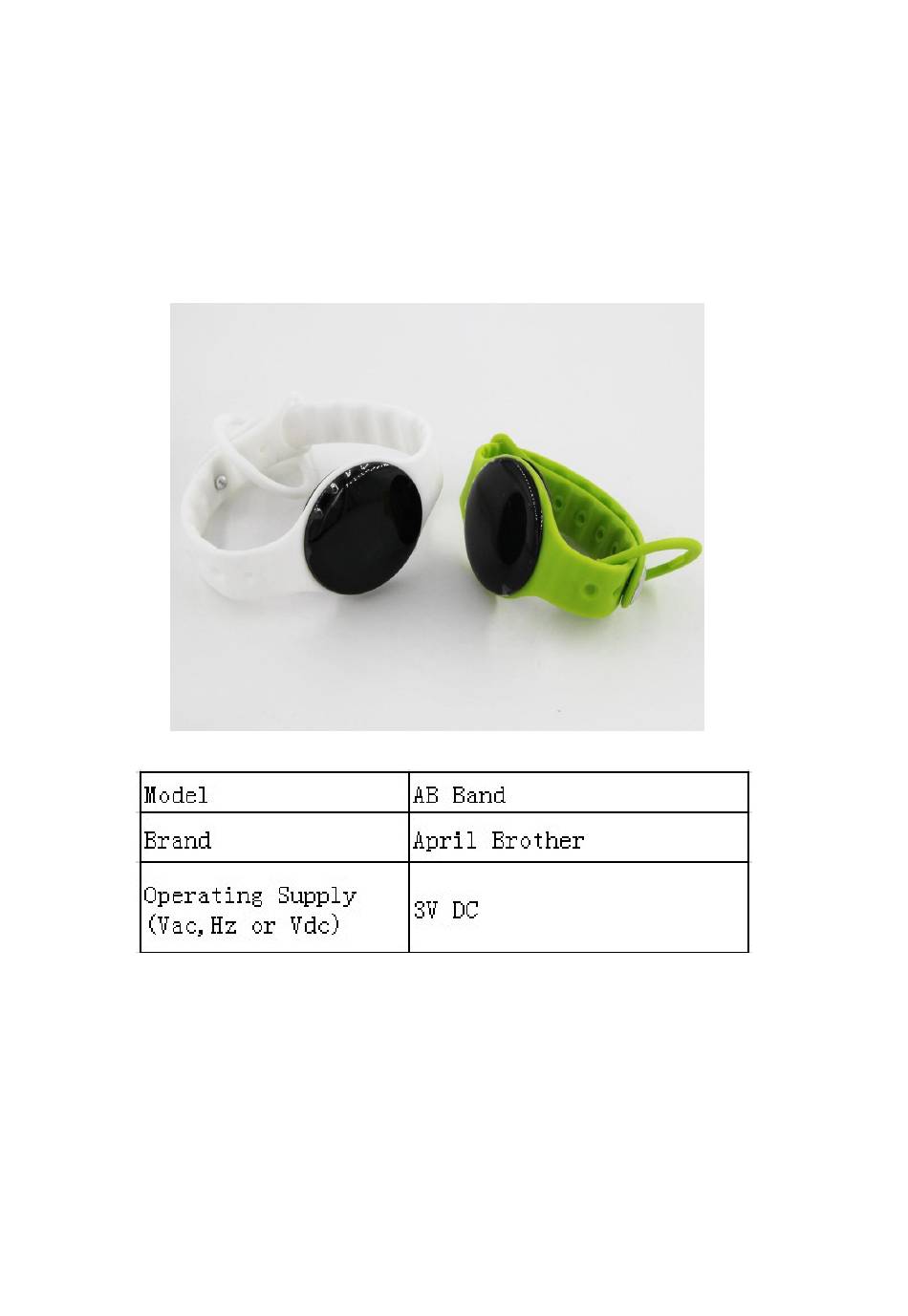

Wristband Beacon is developed and produced including hardware and firmware all provide

by AprilBrother LLC. It is built‐in a CR2032 battery holder. It can work as a standalone system，

based on DA14580 BLE 4.0 chip.power saving,wireless antenna and convenient to install.

FCCID: 2ACAL-ABANDD01

FCC Notice

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

Wristband Beacon

Table of Contents

Need help?

Do you have a question about the AB Band and is the answer not in the manual?

Questions and answers

Summary of Contents for AprilBrother AB Band

Page 1 Wristband Beacon is developed and produced including hardware and firmware all provide by AprilBrother LLC. It is built‐in a CR2032 battery holder. It can work as a standalone system， based on DA14580 BLE 4.0 chip.power saving,wireless antenna and convenient to install.
Page 2 (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 3 Specifications *Built‐in iBeacon firmware *Built‐in a CR2032 battery holder *Bluetooth Low Energy technology compatible *Excellent link budget(upto97dB) *Suitable for long distance applications *Accurate digital RSSI *Compatible with CE and FCC regulation *High performance and low power 8051 core MCU *AES security coprocessor IBeacon Descriptions *Application for advertisement and location...
Page 4 *Support customize your own iBeacon configuration including UUID etc. *Tx Power configurable *Advertising frequecy configurable *Support up grade firmware through OAD(air upgrade) ‐ Built‐in JTAG port for customized other application firmware as a standalone system Default Settings *Name of iBeacon : abeacon_xxxx *Proximity UUID: B5B182C7-EAB1-4988-AA99-B5C1517008D9 *Major and Minor:1,2(Only allowed numeric)
Page 5 How to make the equipment start work Equipped with batteries or connected to power equipment which begin to work, start with Search and connected devices: (1) search AprilBeacon through shake assistant software; (2) in the search list, select you to configure the Beacon, below we AprilBeacon_38DF, for example;...
Page 6 4、Click on to modify the equipment into the interface as shown in figure 3; (5) click "UUID/Major/Minor", delete the data above, in the corresponding dialog box enter the new "UUID/Major/Minor"; (6) input your "UUID/Major/Minor", click "save", enter the default password "AprilBrother," after the "success" to complete the operation; FIG. 1 FIG. 2 FIG.
