MARKING METHODS, INC.
301 SOUTH RAYMOND AVENUE
ALHAMBRA, CA 91803-1531
626-282-8823
FAX 626-576-7564
Email: experts@markingmethods.com
Website: www.markingmethods.com
MANUAL FOR
ELECTRO-CHEMICAL
MARKING, EQUIPMENT
& SUPPLIES
ATTENTION:
PLEASE READ MANUAL
CAREFULLY BEFORE
OPERATING EQUIPMENT
®
MARKING METHODS, INC.

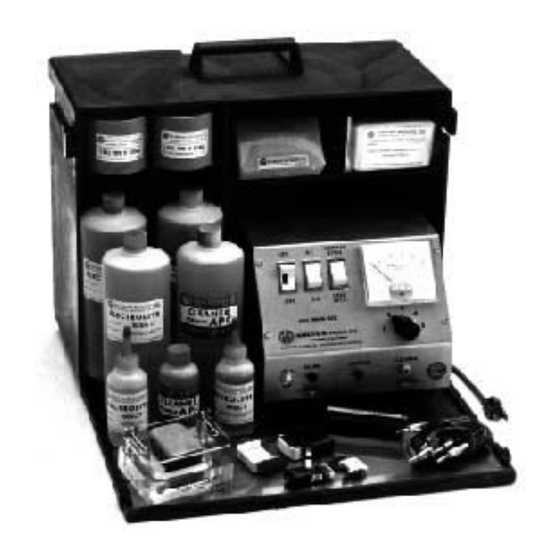

MODEL MARK 300 (SERIES)
I N C
•
EQUIPMENT
•
OPERATION
•
ELECTROLYTE CHART
•
SUPPLIES
®
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for MARKING METHODS MARK 300 SERIES
- Page 1 ® MARKING METHODS, INC. 301 SOUTH RAYMOND AVENUE ALHAMBRA, CA 91803-1531 626-282-8823 FAX 626-576-7564 Email: experts@markingmethods.com Website: www.markingmethods.com MANUAL FOR ELECTRO-CHEMICAL MARKING, EQUIPMENT & SUPPLIES I N C ® MARKING METHODS, INC. MODEL MARK 300 (SERIES) • EQUIPMENT • OPERATION •...
- Page 2 This allows positive traceability throughout the life of the parts. MARKING METHODS’ complete MARK 300 (SERIES) Electro-Chemical marking system is designed to provide maximum performance and ease of operation. The assembly includes all the necessary equip- ment and supplies to most effectively mark all parts..from tiny semiconductors to massive aircraft and...
- Page 3 NORMAL-ETCH INSTRUCTIONS for using MARK 300 POWER UNIT (1) Plug the line cord connected to the power unit into a grounded 110/120 VAC outlet only. Converters are available for 220/240 VAC. (2) Plug the BLACK cord into the BLACK (MARK) receptacle; the opposite end of the cord into the HAND PAD. (3) Plug the RED cord into the RED (GROUND) receptacle;...
- Page 4 DEEP-ETCH INSTRUCTIONS for using MARK 300 POWER UNIT (1) Plug the line cord connected to the back of the power unit into a 110/120 VAC outlet only. Converters are available on request for 220/240 VAC. (2) Plug the BLACK cord into the BLACK (MARK) receptacle; the opposite end of the cord into the Deep-Etch Hand Pad. (3) Plug the RED cord into the RED (GROUND) receptacle;...
- Page 5 BENCH FIXTURES INSTRUCTIONS for using BF1520, BF2045 & BF4060 BENCH FIXTURES with MARK 300 POWER UNIT (NORMAL ETCH ONLY) (1) Plug the line cord connected to the back of the Power Unit into a 110/120 VAC outlet only. Converters are available on request for 220/240 VAC. (2) Plug the BLACK cord into the BLACK (MARK) receptacle: the opposite end of the cord into the Bench Fixture.
- Page 6 ELECTROLYTES MARKING METHODS' laboratory controlled Electrolytes are the result of years of research and development. They are carefully formulated and cataloged by formula and batch number to mark varied metals and surface treatments. The Electrolytes are buffered salt solutions, pH balanced, and are completely harmless to parts and surrounding equipment when used as directed.
- Page 7 REPLACEMENT PARTS NORMAL ETCH and HAND PAD ACCESSORIES Dimensions are actual marking area of applicator HAND PAD NORMAL ETCH (Pkg. of 10) 1/8" x 3/4" HP12575 HAND PAD SCREENCLOTH HPS12575 1/4" x 3/4" 1/8" x 1-1/2" HP12515 HAND PAD SCREENCLOTH HPS12515 HP2575 HAND PAD...
-
Page 8: Warranty
This warranty is in lieu of all other, warranties expressed, implied or statutory and all other obligations or liabilities of Marking Methods, Inc. ® MARKING METHODS, INC.
