Invacare 1614 Assembly, Installation And Operating Instructions

Anti-Theft Device
Assembly, Installation and Operating Instructions
SAVE THESE INSTRUCTIONS
NOTE: Check all parts for shipping damage before
using. In case of damage, do NOT use. Contact the
Dealer/Carrier for further instructions.
SAFETY SUMMARY
The following recommendations are made for the
installation of the anti-theft device:
GENERAL WARNING
DO NOT install or use this equipment without
first reading and understanding these in-
structions. If you are unable to understand
the Warnings, Cautions or Instructions,
contact a healthcare professional, dealer
or technical personnel before attempting
to install this equipment - otherwise, injury
or damage may occur.
This kit contains the following:
DESCRIPTION
Anti-Theft Tube
Half-Clamps
Carriage Bolts
Locknuts
Instruction Sheet
INSTALLING THE ANTI-THEFT
DEVICE (FIGURE 1)
1. Loosen, but DO NOT remove the two (2) lower
(Tracer Fixed Front) or the two (2) upper (Tracer 4)
phillips screws that secure the back upholstery to the
back canes shown in FIGURE 1.
2. Position the half-clamps on the back cane as shown
in DETAIL "A".
3. Make sure of the following:
A. The dimple in each of the half-clamps is
towards the outside of the wheelchair.
B. The half-clamp positioned behind the back cane
is between the back upholstery and the back cane.
C. The half-clamps are positioned between the top
of the skirt guard and the bottom of the armrests
for the TRACER FIXED FRONT.
D. The half-clamps are positioned above the arm-
rest for the TRACER 4.
Anti-Theft Tube
Locknuts
Half-Clamp
Dimple
Hole
Skirt Guard
QTY
TRACER 4
1
2
NOTE: Position bend
2
In anti-theft tube
2
1 towardsinside of
wheelchair.
Phillips
Screws
NOTE: Position bend
in anti-theft tube
towards inside of
wheelchair.
Phillips
Screws
TRACER FIXED
FRONT

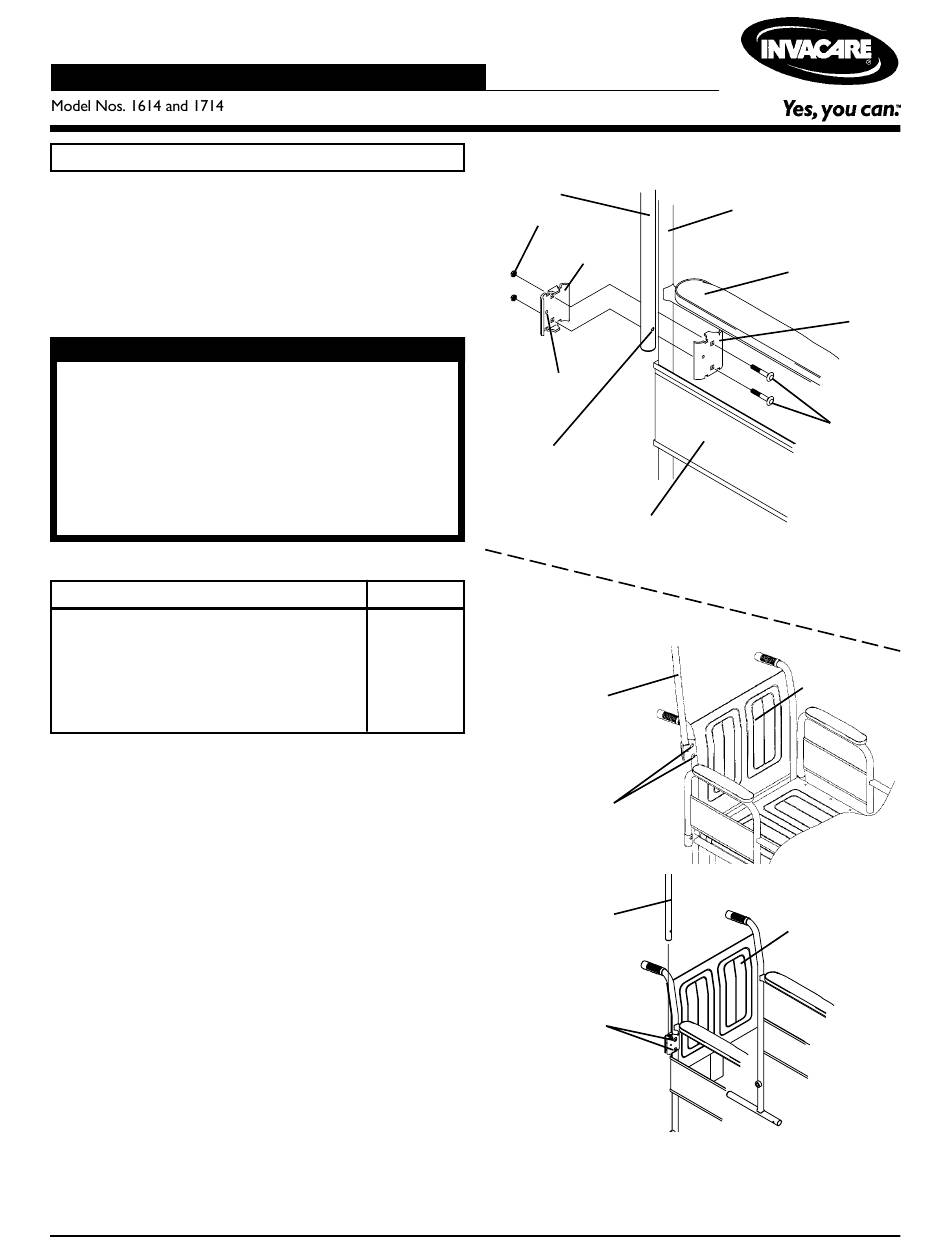

FIGURE 1 - INSTALLING THE ANTI-THEFT DEVICE
1
DETAIL"A"
Back Cane
Armrest
Half-Clamp
Carriage
Bolts
Upholstery
Back Uphol-
stery
Back
