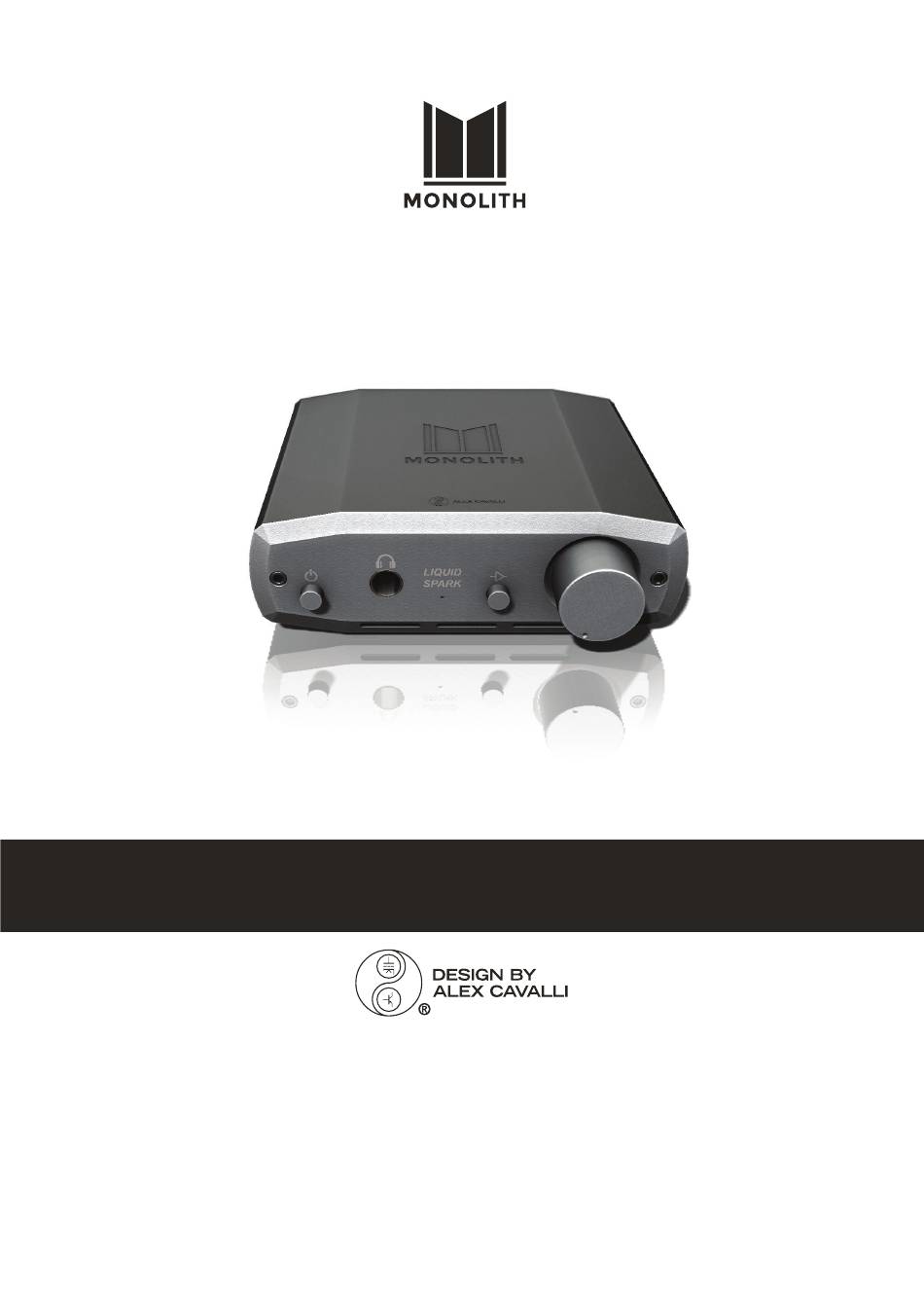

- Page 1 LIQUID SPARK HEADPHONE AMPLIFIER 33304 User’s Manual...
-
Page 2: Front View

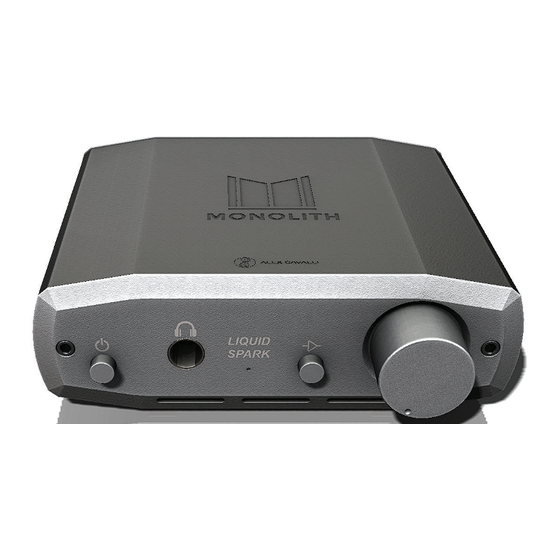

The Liquid Spark is a compact, desktop solid state headphone amplifier. It has one TRS (standard ¼” phone plug) single ended output and one RCA preamp output. The amp has one set of (RCA) inputs. The LS (Liquid Spark) has gains of 3X and 6X, front panel selectable, and an approximate full output power of 1.3W per channel with a 50 ohm load. -
Page 3: Amplifier Operation
Do not repeatedly push the power button on and off because this will always reset the timing. 2. Plug the Monolith/Liquid Spark labeled power supply into the back of the amplifier. 3. Press the power button to turn on the amplifier. -
Page 4: Protective Circuit
Protective Circuit There is one protective circuit in the LS which protects the headphones from DC offset. The protective circuit is triggered if either or both channels exhibit an average DC voltage above the set threshold. If this happens the LED will turn to Red and the amplifier will be in protection mode and will not operate. -
Page 5: Power Sources
Amplifier Break-In • Most amplifiers need at least 100 hours of continuous music playback to reach their full sound signature. • It is not necessary to set up a break-in period. The amp will change character as you listen normally and you will hear it evolve into its natural sound signature. -
Page 6: For Your Protection
Servicing There are no serviceable parts in the amplifier. Do not attempt to service the amplifier. All servicing must be referred to authorized service personnel. FOR YOUR PROTECTION Ventilation Your amplifier runs warm and requires free air circulation to the vents on the product. -
Page 7: Technical Support
Product pictures are for reference only. Specifications described herein are subject to change without prior notification. All trademarks are the sole property of their respective companies. Monolith is a Sub-Brand of Monoprice. Copyright © 2018 Monoprice, Inc. All rights reserved. - Page 8 TECHNOLOGY AT PRICES THAT MAKE SENSE www.monoprice.com...
