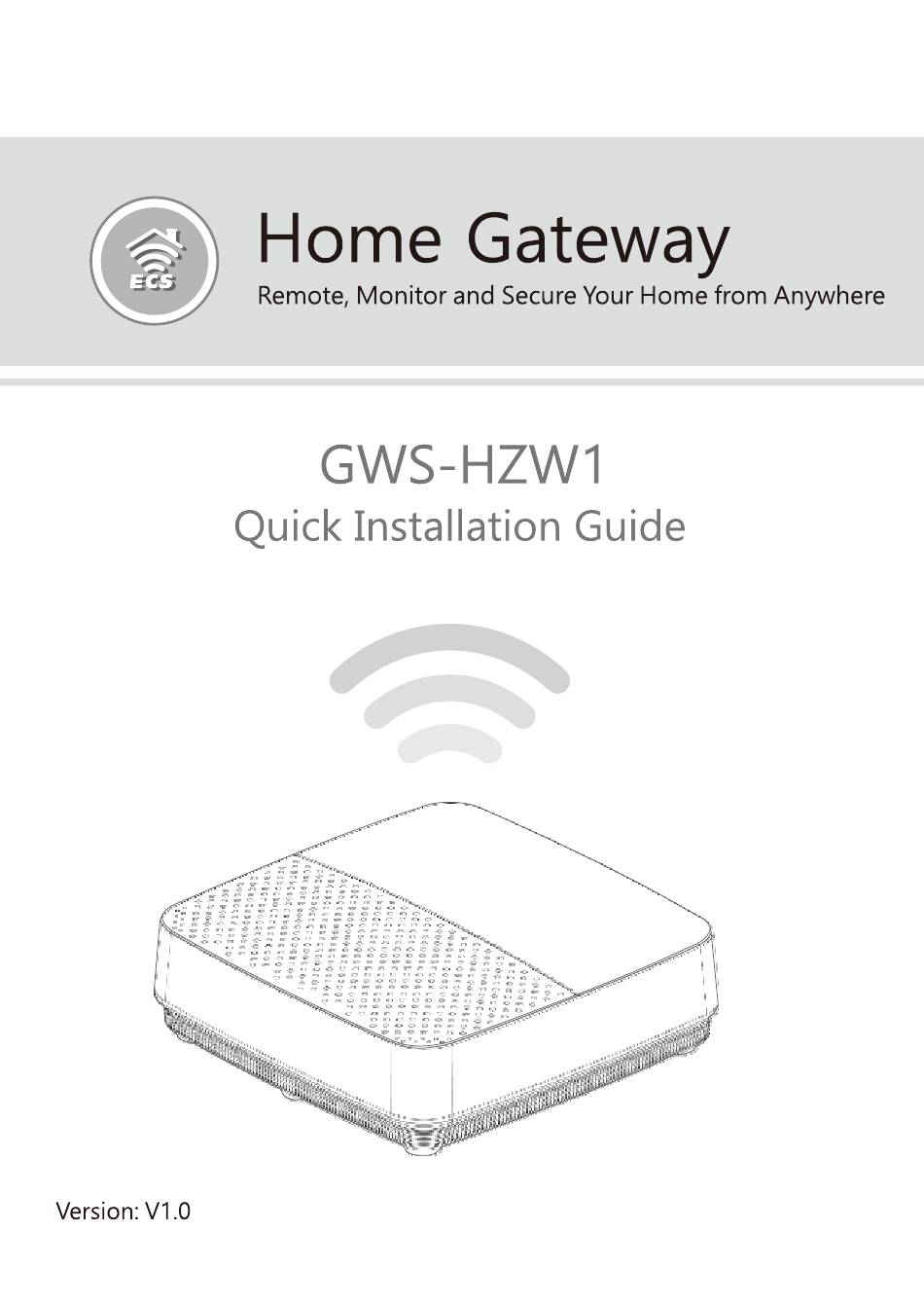

Elitegroup Computer Systems GWS-HZW1 Quick Installation Manual

Home gateway, remote, monitor and secure your home from anywhere
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GWS-HZW1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Elitegroup Computer Systems GWS-HZW1

  • Page 2: Table Of Contents

    Model What’s in the Box? Installing Micro SIM Card Steps Power on your device Steps Product Feature LED Indicator Behavior Using GWS-HZW1 Powering the System System Login LAN Coniguration Wi-Fi Coniguration Bluetooth Coniguration 4G LTE Network Coniguration Program Examples Intel Quark - Programming GPIO From Linux...
  • Page 3 設備供電 步驟 產品規格特色 指示燈行為 使用GWS-HZW1 系統啟動 系統登錄 網路設定 WiFi網路設定 Bluetooth設定連結 4G LTE網路設定 程式範例 Intel Quark - Programming GPIO From Linux 33 Digital GPIO - Sysfs Interface 33 GPIO Information LED GPIO的控制方法舉例 33 注意事項...

  • Page 4: Product Introduction

    Product Introduction Model GWS-HZW1 Reset USB Port Power Switch LAN Port DC Input Port SIM Card Slot Debug Client Port...

  • Page 5: What's In The Box

    What’s in the Box?  GWS-HZW1 Home Gateway  Power Adapter (12V DC, ASIAN POWER DEVICES INC. WA-24Q12FU)  User Quick Guide Note: * Only the enclosed adapter can be used to this device.

  • Page 6: Installing Micro Sim Card

    Installing Micro SIM Card Steps: 1. Locate the SIM card slot. 2. Insert the Micro SIM card gently.

  • Page 7: Power On Your Device

    Power on your device Steps: 1. Plug the adapter to AC wall outlet. 2. Connect the Power adapter to the device. 3. Turn the power switch to the ON position. Note: * LED power indicator in RED, gateway in boot up stage.

  • Page 8: Product Feature

    Product Feature Connectivity LAN port, support WiFi and Bluetooth Interface DC-in port, USB port, SIM card slot, reset, LAN port, Debug client port, power switch Dimensions & Weight Dimension: 128 × 117 × 38.7 mm Weight: 335 g Environmental Conditions Operational temperature range: 0°C to +45°C (32°F to 113°F) Storage temperature range:...

  • Page 9: Led Indicator Behavior

    LED Indicator Behavior Color Function 1. Power on => Red Power Blue/Red 2. Boot up and OS is work- ing => Blue Blue Enable => Blue WiFi Blue Enable => Blue Blue Enable => Blue Zigbee Blue Enable => Blue Z-Wave Blue Enable =>...

  • Page 10: Using Gws-Hzw1

    Using GWS-HZW1 Powering the System Login as ‘root’ and then issue a ‘poweroff’ or ‘reboot’ command. root@WR-IntelligentDevice:~# poweroff root@WR-IntelligentDevice:~# reboot Or send ssh remote command to GWS-HZW1. ecs@ecs-IoT:~$ ssh root@192.168.0.1 poweroff root@192.168.0.1’s password: ecs@ecs-IoT:~$ ecs@ecs-IoT:~$ ssh root@192.168.0.1 reboot root@192.168.0.1’s password:...
  • Page 11 If using serial console or terminal emulator, the serial port settings are Setting Value Baud 115200 Parity Data Bit Stop Bit Flow Control When using Secure Shell (or SSH), you can establish the communication through LAN 1 port, which is the RJ45 port right next to the USB port and is assigned with an IP address “192.168.0.1”.

  • Page 12: Lan Coniguration

    LAN Coniguration The steps below are used to conigure the local area networking (LAN) of GWS-HZW1. If you use a serial console, you might setup networking by manual. Otherwise the networking is workable. Step 1. Check the network interfaces by executing the ifconig command.
  • Page 13 The way to set DHCP connection is as follow: vi /etc/network/interfaces...
  • Page 14 The way to set static IP connection is as follow: eth0:0  192.168.0.1...

  • Page 15: Wi-Fi Coniguration

    Wi-Fi Coniguration Step 1. Check the network interfaces by executing the ifconig wlan0 up command. ifconig wlan0 up Step 2. connmanctl scan wii & connect connmanctl scan wii connmanctl services connmanctl agent on connect wii_2………..

  • Page 17: Bluetooth Coniguration

    Bluetooth Coniguration Input the following commands. Send shell command. (Connect) bluetoothctl agent on power on scan on scan off devices pair BT MAC Address trust BT MAC Address (Disconnect) disconnect BT MAC Address remove BT MAC Address...

  • Page 18: 4G Lte Network Coniguration

    4G LTE Network Coniguration Input the following commands. Choose one ot the following three commands(1~3) based on the corresponding LTE module. pppd call mu609 & --> Huawei ME909s 120 module - 1. pppd call UC20 & --> QuecTel UC21-JMINPCIE pppd call UC20 & --> QuecTel EC21-AU ifcoig...

  • Page 19: Program Examples

    Program Examples Intel Quark - Programming GPIO From Linux For GWS-HZW1 board, most of the GPIO features can be achieved through the Linux Sysfs interface and can be controlled using ile I/O. In following sections, we will show you how to activate some features by using some simple shell commands.
  • Page 20 - Set the direction of GPIO(INPUT or OUTPUT) echo out > /sys/class/gpio/gpio9/direction - Set GPIO swtich echo 1 > /sys/class/gpio/gpio9/value - Inquire the current GPIO value cat /sys/class/gpio/gpio9/value...

  • Page 21: 產品介紹

    產品介紹 型號 GWS-HZW1 重置孔 USB端口 電源開關 網絡端口 電源輸入插孔 SIM卡插槽 客戶調試端口...

  • Page 22: 包裝內容

    包裝內容  GWS-HZW1 家用閘道器  電源供應器（12V DC，ASIAN POWER DEVICES INC.WA- 24Q12FU）  快速使用指南 注意: * 本產品僅可使用隨附的電源供應器。...

  • Page 23: 安裝Micro Sim卡

    安裝Micro SIM卡 步驟： 1. 對準設備的SIM卡插槽。 2. 輕輕地插入SIM卡。...

  • Page 24: 設備供電

    設備供電 步驟： 1. 將電源供應器插入電源插座。 2. 將電源供應器插入本機電源插孔。 3. 將電源開關撥至ON位置。 注意: * LED電源指示燈為紅色，且閘道器處於啟動狀態。 ...

  • Page 25: 產品規格特色

    產品規格特色 連接方案 網絡端口，支援WiFi，藍牙 支援介面 DC-in供電插孔、SIM卡槽、重置孔、網絡端口、 電源開關、 客戶調試端口 產品尺寸、重量 尺寸： 128 × 117 × 38.7 mm 重量： 335克 環境條件 操作溫度: 0°C to +45°C (32°F to 113°F) 儲存溫度: -20°C to +60°C (-4°F to 140°F)

  • Page 26: 指示燈行為

    指示燈行為 序 LED指示 顏色 功能 號 燈 1. 通電 => 紅燈亮 電源指 藍燈/紅燈 2. 啟動，系統運行中 => 藍 示燈 燈亮 LTE指示 藍燈 開啟 => 藍燈亮 燈 WiFi指 藍燈 開啟 => 藍燈亮 示燈 藍牙指 藍燈 開啟 => 藍燈亮 示燈 Zigbee 藍燈 開啟 => 藍燈亮 指示燈...

  • Page 27: 使用Gws-Hzw1

    使用GWS-HZW1 系統啟動 以‘root’帳號登錄，然後執行‘poweroff’或‘reboot’ 指令。 root@WR-IntelligentDevice:~# poweroff root@WR-IntelligentDevice:~# reboot 或發送ssh遠程指令給GWS-HZW1。 ecs@ecs-IoT:~$ ssh root@192.168.0.1 poweroff root@192.168.0.1’s password: ecs@ecs-IoT:~$ ecs@ecs-IoT:~$ ssh root@192.168.0.1 reboot root@192.168.0.1’s password: ecs@ecs-IoT:~$ 系統登錄 使用micro-usb通過稱為‘console（控制台）’的Linux shell可進入及控制系統。使用者可調用Linux 指令來配 置以下程式中的某些內容。 如下圖：...
  • Page 28 若使用串口console或終端模擬器，串口console的設定如 下： 設定 值 Baud（波特） 115200 Parity（奇偶性） Data Bit（數據位數） Stop Bit（終止位數） Flow Control（流程控制） 若使用Secure Shell（稱為SSH），它將偵聽LAN 1，IP為 192.168.0.1。LAN1 為靠近USB 插孔的RJ45 連接器。 圖為 LAN 1 連接器的位置 登錄的帳戶為‘root’。...

  • Page 29: 網路設定

    網路設定 以下步驟用來設定GWS-HZW1的局域網（LAN）。如果 GWS-HZW1的網路無法正常使用，您應該需要使用串口 console，以手動的方式來設定或啟動網路。 步驟1. 檢查網路介面。 Command：ifconfig 步驟2. 啟用網路介面，e.g.eth0。若無eth0，請使用圖 中command啟動。 root@WR-IntelligentDevice:~# ifconig eth0 up 步驟3. 若設定不匹配，請編輯 /etc/network/interfaces 以便在啟動時生效。...
  • Page 30 DHCP連線的設定方式如下: vi /etc/network/interfaces...
  • Page 31 固定IP如下 eth0:0  192.168.0.1...

  • Page 32: Wifi網路設定

    WiFi網路設定 步驟1. 檢查網路介面。 ifconig wlan0 up connmanctl scan wii & connect 步驟2. connmanctl scan wii connmanctl services connmanctl agent on connect wii_2………..

  • Page 34: Bluetooth設定連結

    Bluetooth設定連結 依照下列command輸入 Send shell command. (連接) bluetoothctl agent on power on scan on scan off devices pair BT MAC Address trust BT MAC Address (中斷) disconnect BT MAC Address remove BT MAC Address...

  • Page 35: Lte網路設定

    4G LTE網路設定如下 依照下列command輸入 (依照使用的LTE module 選擇1-3其中之一command) pppd call mu609 & --> Huawei ME909s 120 module - 1. pppd call UC20 & --> QuecTel UC21-JMINPCIE pppd call UC20 & --> QuecTel EC21-AU ifcoig...

  • Page 36: 程式範例

    程式範例 Intel Quark - Programming GPIO From Linux 在GWS-HZW1板子上，大部分的GPIO功能都可以透過Linux Sysfs介面來動作，而且可以用檔案I/O的方式來進行控 制。以下將介紹如何通過簡易的shell命令使用其中的某 些功能。當然除了shell，您可以使用程式以檔案操作方 式來執行I/O，這些程式可以用您最喜歡的程式語言進行 編寫。 Digital GPIO - Sysfs Interface GPIO Information 以下命令給出了有關系統中GPIO的資訊，且顯示了一個IO 埠被分配給哪一個Module或Sysfs（使用者）。 Command : cat /sys/kernel/debug/gpio LED GIPO的控制方法舉例 設定GPIO腳位 echo 9 > /sys/class/gpio/export 設定GPIO為input或output echo out > /sys/class/gpio/gpio9/direction...
  • Page 37 設定GPIO開關 echo 1 > /sys/class/gpio/gpio9/value 查詢GIPO目前的值 cat /sys/class/gpio/gpio9/value...

  • Page 38: 注意事項

    Notice Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions. ℃～ ℃ ℉～ ℉) Operating temperature: 0 ℃～ ℃ ℉～ ℉...
  • Page 39 FCC Label Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received, including interference that may cause undersired opreation To assure continued FCC compliance: 1.
  • Page 40 限用物質含有情況標示 限用物質及其化學符號 多溴二 單元 鉛 汞 鎘 六價鉻 多溴聯苯 苯醚 (Pb) (Hg) (Cd) (PBB) (PBDE) 電路板(卡) － ○ ○ ○ ○ ○ 電子紙顯示 ○ ○ ○ ○ ○ ○ 器模組 塑膠機構件 － ○ ○ ○ ○ ○ 金屬機構件 － ○ ○...
  • Page 41 進口/委製造商 Elitegroup Computer Systems Co., LTD. No. 239, Sec. 2, Tiding Blvd., Neihu District, Taipei City, Taiwan (11493) 精英電腦股份有限公司 台北市內湖區堤頂大道二段239號 +886-2-21621177...
