ECKey EK6 series Installer's Manual

Internal/external mounting – red and green led control from access control system
Hide thumbs Also See for EK6 series:
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual
Model
Administration
Button
(internal/external mounting – Red and Green LED control from
Access Control System)
Installation Summary
The following is the general process for installing an EK6. For more details please browse the ECKey Knowledge Base in the support
section of
www.ECKey.com
1)
Install the ECKey Management Application. This requires Windows XP or Vista and an internet connection to check for Microsoft .Net updates.
2)
Plug the USB programming cable into the computer.
3)
Open the ECKey unit and plug in the USB programming cable into the red connector.
4)
Open the ECKey Management Application and register your application. This requires an internet connection.
5)
Follow the wizard prompts to configure the ECKey unit to your specifications or select from one of the templates provided.
6)
Apply the settings to the ECKey unit.
7)
Install on site as per wiring diagram connecting to access control system as a Wiegand prox reader.
8)
Determine Bluetooth address for the user phones and load into access control system.
9)
Tune the range using Command Files if required (see below).
Operation Summary
The following diagram describes the overall process flow of how ECKey operates when controlled by selected settings. For more
details please browse the ECKey Knowledge Base in the support section of
1)
The ECKey unit searches for discoverable phones. All phones must be discoverable. The Status Light will be slowing flashing blue.
2)
When the ECKey unit detects a phone the unit determines whether to consider the phone based on the Identification setting. The options are:
All Phones (default – no pairing required), Paired Phones (pairing required) or Authenticated Phones (pairing required, see description of settings
below for more details). The Status Light will be slowing flashing blue on the EK6-0C and red on the EK6-0D.
3)
If pairing is required a new phone is found within the Pairing Range and Pairing is Automatic (see description of settings below for more
details) ECKey will automatically try to register the phone by requesting to pair with it. When this is occurring the Status Light will quickly flash
blue.
4)
Once a phone is identified, its range is monitored until a trigger event is received as defined by the Trigger setting. The options are: when the
phone is In Range Only (default), In Range and a PIN is Entered, In Range and a Sensor is Triggered. The range is defined by the Range setting.
The Status Light will be slowing flashing blue on the EK6-0C and red on the EK6-0D.
5)
Once the phone has met the trigger criteria, ECKey will create a Weigand message associated with the Bluetooth address of the phone and the
passkey. If the relay is configured it will also trigger at this time. The Status Light will be solid blue for 3 seconds.
6)
The EK6 does not monitor the phones. While the phone is in range ECKey will keep sending the Wiegand message through every Delay period.
7)
There is no close message associated with the EK6. The ECKey unit will continue to search for phones.
ECKey EK6 Installer Guide (v3.1)
Administration
Light
EK6-0D

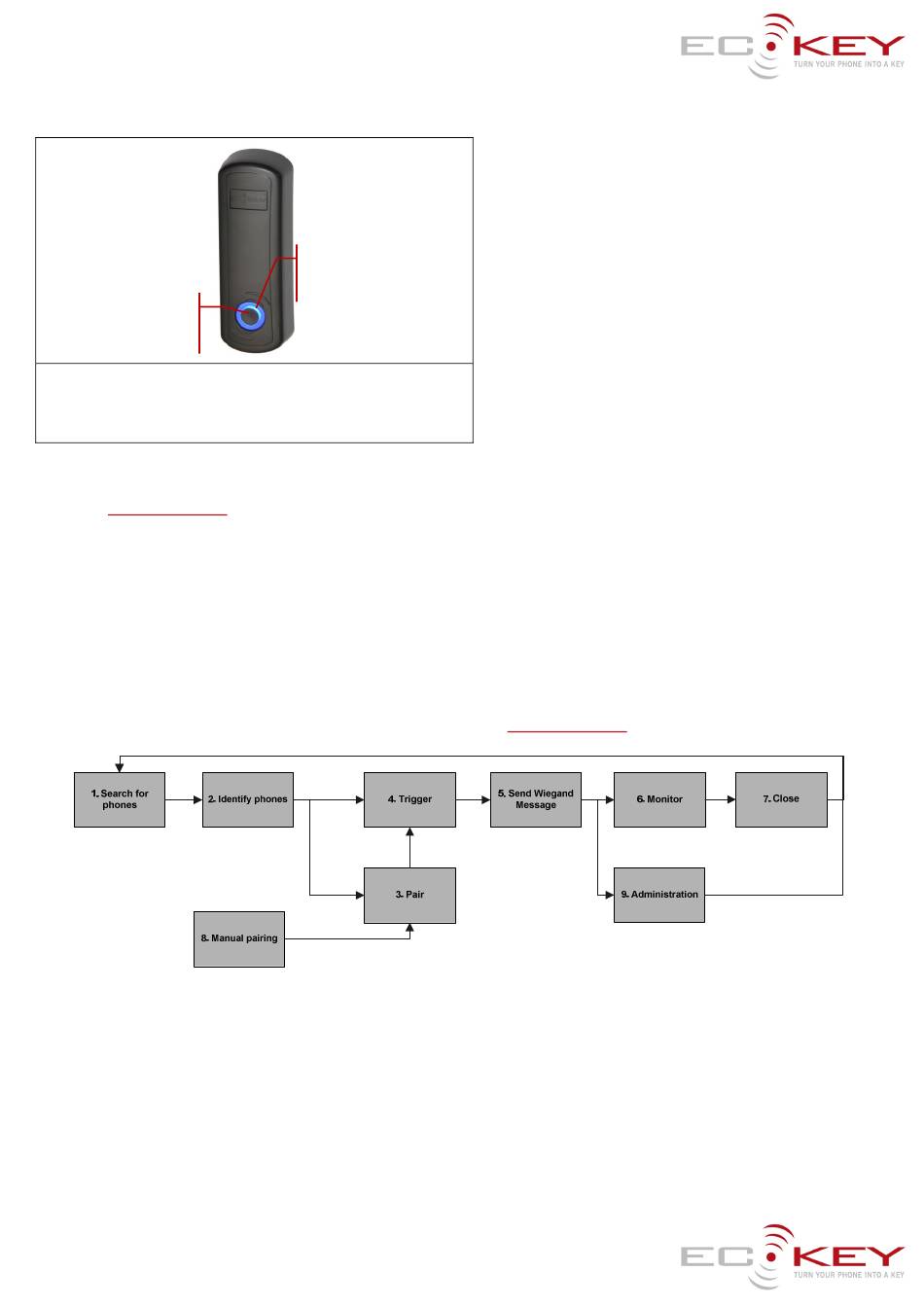

Figure 1 ECKey Stages of Operation
Model: EK6 Install Guide
www.ECKey.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EK6 series and is the answer not in the manual?

Questions and answers

Related Manuals for ECKey EK6 series

Summary of Contents for ECKey EK6 series

  • Page 1 If pairing is required a new phone is found within the Pairing Range and Pairing is Automatic (see description of settings below for more details) ECKey will automatically try to register the phone by requesting to pair with it. When this is occurring the Status Light will quickly flash blue.
  • Page 2 Pairing may be manually initiated through a button sequence or a command file. The Status Light will quickly flash blue when ECKey is available to accept pairing requests. After the Wiegand message has been sent, the Administration Button can be used to administer the ECKey unit. The Administration Features include: Delete All Phones, Allow Command Files to Change Settings, or Accept Connections from Management Application.
  • Page 3 Ground the status light will be Red. If the Purple is connected to Ground the status light will be Green. On both models the Blue Administration Light is mirrored on the External Light is used to indicate a Wiegand message has been sent and for ECKey Administration.

  • Page 4: Troubleshooting

    Light Delete all paired phones You will need a phone to trigger a Wiegand message. Note that in the default setting of “All Phone” no phone information is stored on ECKey and so there is nothing to delete. When the Wiegand message has been triggered and the Status Light is blue; press and release the Administration Button 4 times and then press the Administration Button a fifth time and hold for 3 seconds.

  • Page 5: Command Files

    The recommended approach for configuring and administrating ECKey is to use the ECKey Management Application on a Windows XP or a Vista computer connected to the ECKey unit via a USB cable or Bluetooth. If the computer is not near the ECKey unit a Bluetooth phone can be used to send and retrieve the configuration settings, audit trail and list of paired phones.

  • Page 6: Status Light

    Add Phone This does not add phone to the ECKey unit. This using the settings of the ECKey reader to display the Wiegand number that the readers will generate at this site for a specific phone. Once the virtual Wiegand card number has been determined for a phone it can be cut and paste into the access control system and access rights assigned.
  • Page 7 Device Name This is the name of the ECKey EK6 reader that will be displayed on the user phone once they are paired. It is recommended to have a different name for each reader within a site so they can be easily identified.

  • Page 8: Specifications

    This is the length of time the relay is triggered when a virtual Wiegand card number is sent for authorisation. This can be used to drive a buzzer, light or other appliance. When ECKey is in Operation Mode C with authenticated unlocking and the relay connected to an electronic lock, the EK6 will act as a 1000 user standalone door controller.
  • Page 9 Device Support Hidden or discoverable BT devices Range tuning Manual, Automatic International Patent PCT/NZ2007/000069 Communications Bluetooth 2.4 GHz Relay 30 VDC @ 2Amps www.ECKey.com Model: EK6 Install Guide...
