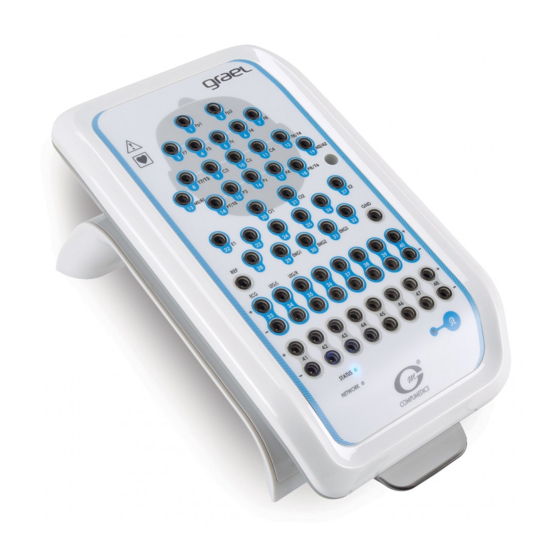

Summary of Contents for Compumedics Grael
- Page 1 Compumedics Grael Wiring Diagram Information Guide www.compumedics.com Page | 1...
- Page 2 Because Compumedics USA Inc. must respond to changing market conditions, it should not be interpreted to be a commitment on the part of Compumedics USA Inc. Compumedics USA Inc. cannot guarantee the accuracy of any information presented after the date of the publication.
-
Page 3: Table Of Contents
Compumedics Grael Wiring Diagram Guide Abstract This Document explains the wiring diagrams to install the Compumedics Grael System in a Hospital or a Free Standing facility. Table of Contents Facility Room Preparations ......................... 4 Compumedics Grael and AV System: Power and Dimension ..............5 Cable Requirements Grael Sleep System: .................... -
Page 4: Facility Room Preparations
Patient Rooms: • One single-gang 110v electrical outlet completed below ceiling tile level for each camera • One Single Gang electrical Box for each Compumedics system low voltage wiring at bedside* • Finished Drop Ceilings and baseboards • Furnishings in patient rooms: Bed, Night Stands, etc…... -
Page 5: Compumedics Grael And Av System: Power And Dimension
IPv4, TC/IP, PPPoE Grael Power: Compumedics Grael requires POE (Power over Ethernet) Injector or POE Switch. The Grael is fully compliant with 802.3af and can be powered by either a mid-span power injector or POE switch. The required voltage is 48v (as specified in 802.3af) while the maximum power consumption is <... - Page 6 IP IP8161 VIVOTEK Fixed Camera Components: Lens: 8X optical zoom, Auto Iris Angle of View: 1.2° Illumination: 0.1 Luz / F1.6 Video Compression: H.264: Up to 30/25 fps at 720x480 (NTSC) MPEG-4: Up to 30/25 fps at 720x480 (NTSC) MJPEG: Up to 30/25 fps at 720x480 (NTSC) Audio: Built-in Microphone External Microphone input...
- Page 7 Louroe Intercom and Microphone Components: Speaker / Mic Specifications: Output: Line Level 90 dB @ 1KΩ Sensitivity Mic: -65 dB ± 4 dB Current drain: 4 mA Speaker: 4”, 8Ω w/70V Transformer Power Rating: Face Plate Dimensions: 6 ½” H x 8” W Backbox for TLM-W: Surface Mount Box (metal): 6 ½”...
-
Page 8: Cable Requirements Grael Sleep System
Cable Requirements Grael Sleep System: Compumedics Amplifiers and AUX: Grael: Compumedics PSG System One (1) CAT 5e Plenum Cable for each bed, Terminated TIA/EIA568B Must have a Static IP Address Power over Ethernet (POE) XLINK or Data Logger: 8 Analog Signals... -
Page 9: Sleep Equipment Wiring: Grael, Datalogger, Cpap To Direct Runs
Grael, Datalogger, CPAP to Direct Runs Sleep Equipment Wiring: Cable Drops Description: Sleep Equipment: CAT5e PLENUM RATED X-Link: CAT5e PLENUM RATED CPAP Equipment: CAT5e PLENUM RATED **All Cables must meet your State Building, Electrical, and Fire Code. Contact your local Building Inspector and Electrician for Further Information**... -
Page 10: Sleep Equipment Wiring: Grael, Datalogger, Cpap To Network Closet
Grael, Datalogger, CPAP to Network Closet Sleep Equipment Wiring: Cable Drop Descriptions: Sleep Equipment: CAT5e PLENUM RATED X-Link: CAT5e PLENUM RATED CPAP Equipment: CAT5e PLENUM RATED **All Cables must meet your State Building, Electrical, and Fire Code. Contact your local Building Inspector and Electrician for Further Information**... -
Page 11: Audio, Video, Infrared Wiring
Audio, Video, Infrared Wiring: Camera (Fixed and PTZ), Infrared Light, Intercom/MIC Cable Drops Description: IP Video/PTZ: CAT5e PLENUM RATED IP CPAP Equipment: CAT5e PLENUM RATED Intercom: 4 Cond with Drain wire, Shielded, non-twisted, PLENUM Rated Audio: 2 Cond with Drain wire, Shielded, non-twisted, PLENUM Rated •... -
Page 12: Patient Room Layout
Patient Room Layout Grael, Data Logger, Camera, IR Light, Louroe, Power Page | 12... -
Page 13: Power Wiring
Power Wiring Grael, Camera (Fixed or PTZ), Infrared Light, Intercom/MIC Power Cables Drops: Grael Data: POE Injector Power Supply will be provided Camera: CAT5e using Class 3 POE or 2 Conductor 18AWG non-twisted PLENUM Infrared Light: 2 Conductor 18AWG non-twisted PLENUM... -
Page 14: Single Gang Keystone Wall-Plate: Direct Runs
Single Gang Keystone Wall-Plate: Direct Runs Patient Room to Control Room: Direct Cable Runs Snap-In-Modules Wall Plates: Leviton Telcom (4 and 6 Ports) RJ45 Snap-In-Module: CAT5e Jack (Leviton) Blanks Snap-In-Modules: Leviton Telcom for Pass Thru Page | 14... -
Page 15: Single Gang Keystone Wall-Plate: Network Closet
Single Gang Keystone Wall-Plate: Network Closet Compumedics Equipment in a Common or POE Switch Snap-In-Modules Wall Plates: Leviton Telcom (4 and 6 Ports) RJ45 Snap-In-Modules: CAT5e Jack (Leviton) Blanks Snap-In-Modules: Leviton Telcom Page | 15... -
Page 16: Lan Networking Requirements
Exclusion List: See Compumedics Antivirus Exclusion List Documentation • Microsoft Updates: See Compumedics Software Update Validation List documentation • Service Pack Updates: See Compumedics Software Update Validation List documentation Remote Access Support: • Compumedics Provides Internet Remote Support via GoToAssist.
