Summary of Contents for Sensar Secure Cam USB

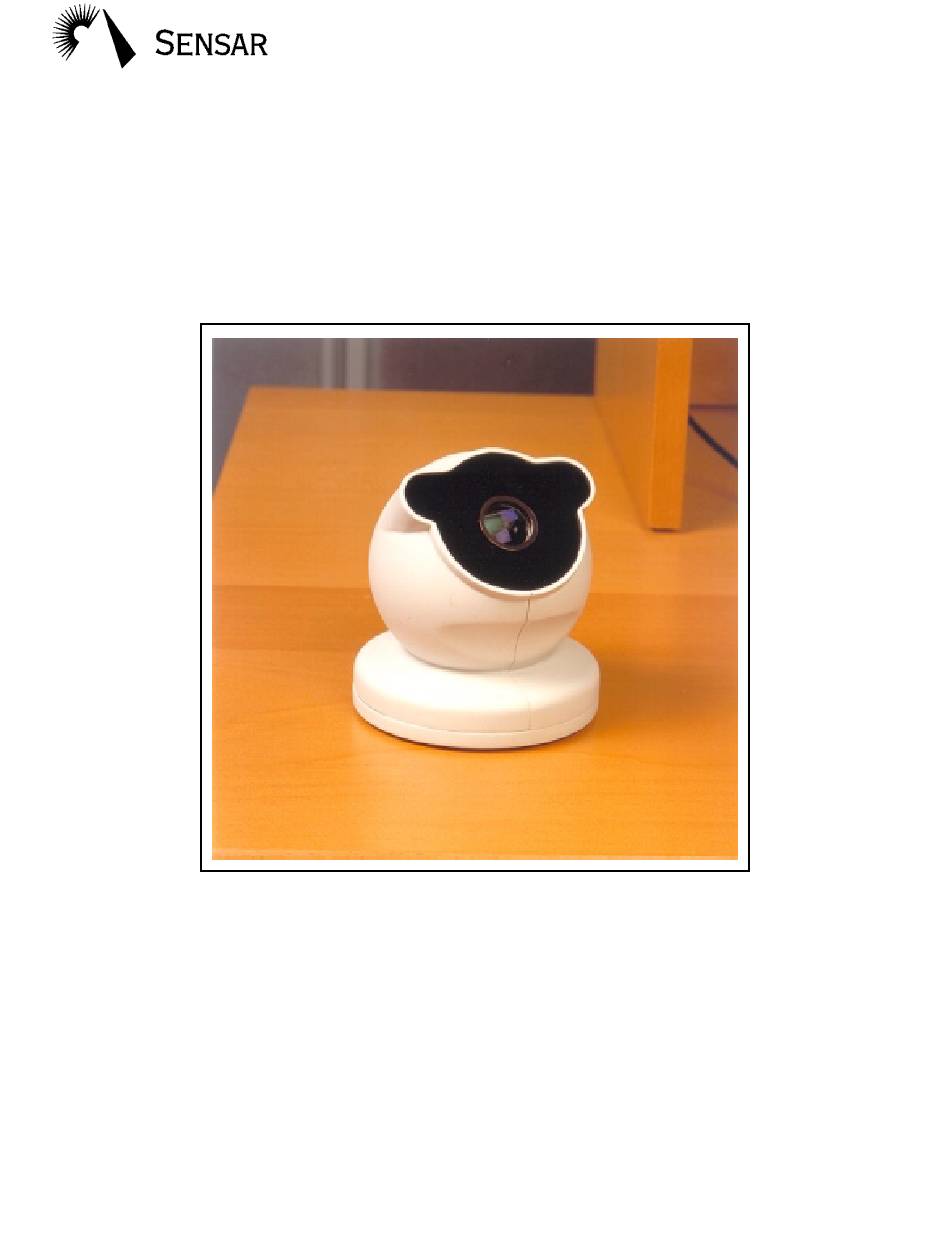

- Page 1 Sensar…Secure ® User Guide Sensar Document 101476DOC Camera User Guide...
-
Page 2: Notices
Consult the dealer or an experienced radio/TV technician for help. The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Sensar, Incorporated may void the user’s authority to operate the equipment. - Page 3 This product conforms to emissions product standards EN55022, class B and EN50082-1 (1992) of the European Economic Community. Copyright Notice Sensar, Inc. makes no warranty of any kind with regard to this material, including, but not limited to, implied warranties of merchantability and fitness for a particular purpose.
- Page 4 University, England. Sensar uses, under license, the iris recognition process ® developed and owned exclusively by IriScan. IRISCAN is a trademark of IriScan, Inc., of Marlton, New Jersey, and is used by Sensar, Inc. under license from IriScan, Inc. Page 4...
-
Page 5: Table Of Contents
Table of Contents NOTICES............................2-4 INTRODUCTION......................... 6 SYSTEM REQUIREMENTS ...................... 7 INSTALLATION .......................... 8 ......................8 OFTWARE NSTALLATION Windows 95 ..........................8 Windows 98 ..........................9 Windows NT4.0 ........................... 9 ......................10 ARDWARE NSTALLATION USB Camera..........................10 Parallel Port Camera........................11 CONFIGURING YOUR BROWSER .................. -
Page 6: Introduction
PC and the Internet. ® It all starts with an image of your eye—iris recognition. The Sensar Secure captures an image of your iris and creates an identifying template. This is your enrolled digital code and is stored in a secure database. When verification of your identity is then requested, the camera will take another image of your eye, digitally encode it, and compare it to your enrolled digital code. -
Page 7: System Requirements
System Requirements • 486 processor or better • Sound card / speakers (optional, recommended) • LAN or Internet connection and 28.8bps or greater modem • Internet Explorer 4.01 or later or Netscape Navigator 4.06 or later Parallel Port Camera • Microsoft Windows 95, 98, or Windows NT 4.0 or later versions USB Camera •... -
Page 8: Installation
Installation Software Installation Windows 95 To install the USB or Parallel Port version of the camera software, please follow this procedure: 1. To find out if your version of Windows 95 is USB compliant, right-click the “My Computer” icon and select Properties. The System should be 4.00.950B (Windows 95B) or later. -
Page 9: Windows 98
Windows 98 To install the USB or Parallel Port version of the camera software, please follow this procedure: 1. Insert the camera CD into your CD-ROM drive. Run the program SETUP.EXE located in the root directory of the CD. Follow the instructions as they appear on your screen. -
Page 10: Hardware Installation
Hardware Installation USB Camera Find the USB port on your computer. If your computer does not have a USB port, a USB card can be added. See Section “Adding a USB Card.” Plug the flat rectangular end of the detachable USB cable into any USB port of your computer. -
Page 11: Parallel Port Camera
enabled. To rectify the problem you must restart the computer and enter the SETUP utility to enable the USB hardware on the computer’s motherboard. After entering the SETUP utility there will be a peripheral or advance section that will allow you to enable the USB hardware. After enabling the USB, exit the SETUP utility making sure you SAVE the changes when exiting. - Page 12 Reconnect Your Printer Cable, If Present ® Cam at the same time. Note: You can not PRINT and use Sensar Secure Remove the keyboard cable from your PC. Connect the camera cable with the round male connector to the keyboard port on your PC.
- Page 13 Reconnect the keyboard cable (round male connector) to the cable with the round female connector. Figure 7a, b Reconnect Your Keyboard to the Camera Cable Turn the power to your computer back on. Page 13...
-
Page 14: Configuring Your Browser
Sensar is being loaded. This is normal and completely secure since the content from Sensar is digitally signed, and can be checked by examining the digital certificate. You may examine the digital certificate by clicking on the TBD button, and you may elect to trust content from Sensar for future downloads by clicking the “Always trust content from Sensar”... -
Page 15: Netscape
Sensar's software is digitally signed (you may view the certificate) so that you know that you are truly running software provided by Sensar. You may wish to click on "remember this decision" so that you will not be prompted with this dialog the next time you wish to run the application. -
Page 16: Viewing The Tutorial
“double-clicking” the file. Once you are connected to the demo web page, you may run it by clicking the camera icon located at the bottom right of the web page. The tutorial shows a typical camera user demonstrating the use of the Sensar ® Secure Cam camera. - Page 17 The tutorial will run continuously until the “escape key” is hit. Below is one screen from the tutorial. Figure 8 Tutorial Animation Screen Shot Page 17...
-
Page 18: Practice Using The Camera
The installation procedure will place a “TroubleShooting Assistant and Camera Practice” application onto your PC. This file, named “Practice.exe,” can be found in the “C:\Program Files\Sensar\SecureCam” directory. A shortcut to this progam may be found under the “START” menu (Start->Program Files->Sensar Utilities- >Practice). -
Page 19: Getting Started
Enrollment will automatically start by a software application or web page you ® download from a site supporting the Sensar…Secure Cam system. Enrollment software is not provided with this package. You should remove your glasses for the enrollment process. - Page 20 eye closer or farther away from the lens slightly (alternatively, you can move the camera!). You will hear a “ding” if the enrollment is successful, otherwise you will need to try again. The system may timeout after 10 seconds if it finds no suitable images and you may need to start enrolling again.
-
Page 21: Troubleshooting
Find–Files or Folders and search for USBSUPP.EXE on the CD. A USB system test program has been included in this package. It can be run by clicking the “USB System Ready” shortcut located under the “Start Menu->Program Files- >Sensar Utilities” group. Page 21... -
Page 22: Technical Support
Technical Support For technical support call: Your system administrator Sensar (609) 222-9090 Visit our website at www.sensar.com Or equivalent vendor. Specifications A summary of the camera specifications are as follows: Operating Temperature: 5° to 40°C Environment: Indoor operation Package Contents The package should contain the following items: USB or Parallel Port Camera, User Guide, and CD-ROM containing software. -
Page 23: Adding A Usb Card
This card operates with Windows 98 only. The USB card may also be available at your favorite computer retailer. This card has been verified to operate with the ® Sensar Secure Cam. Note: Windows NT users… the Parallel Port camera must be used. -
Page 24: User Tips
User Tips • Begin with the camera 4 inches (10 cm) away from your eye. • Keep both eyes wide open. If you need to close one eye, use your hand to cover it instead because closing it will cause the eye your enrolling to squint. •...
