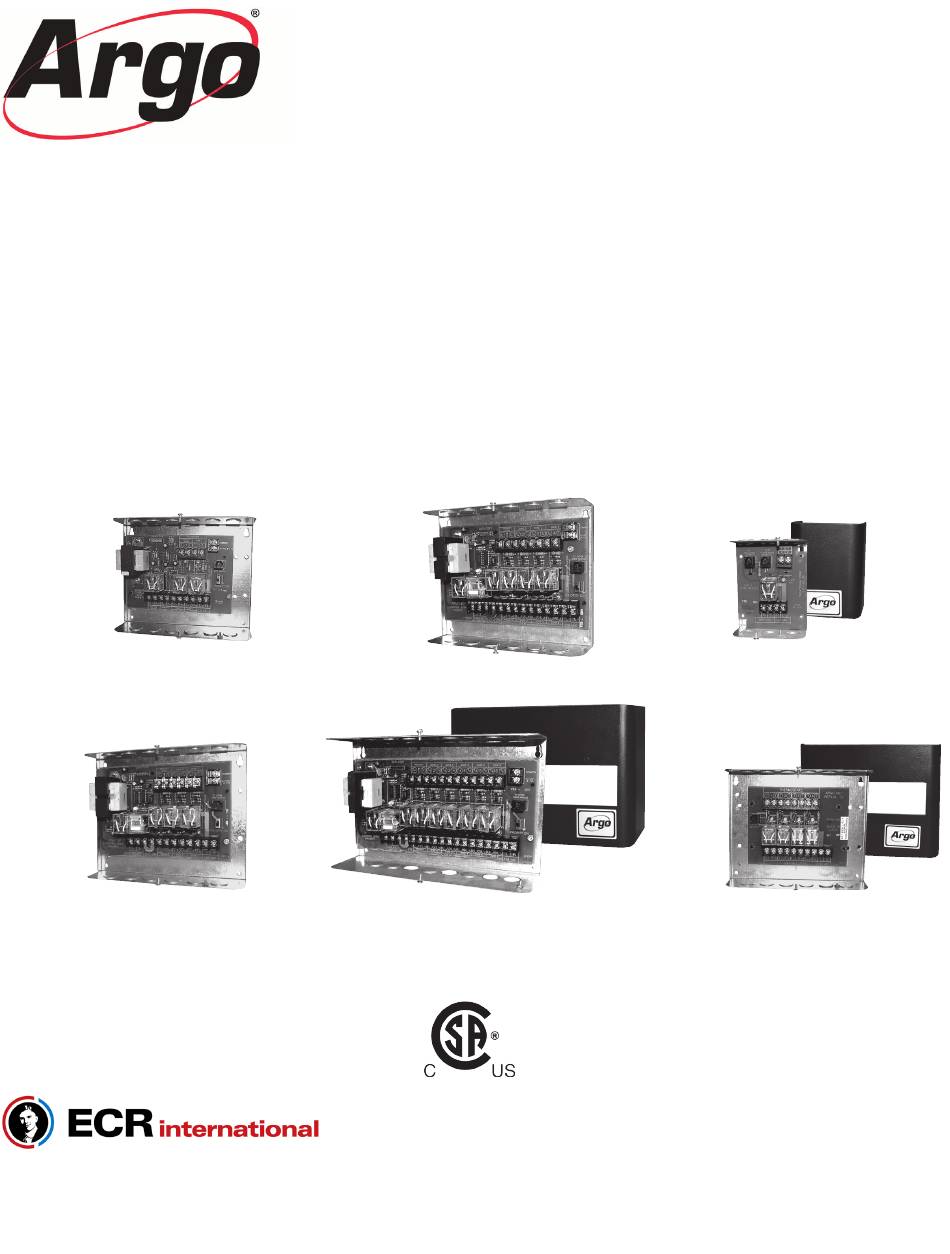

- Page 1 ARM SERIES Switching Relays Models ARM-2P With Priority ARM-3P ARM-4P INSTALLATION, OPERATION & ARM-6P MAINTENANCE MANUAL AD-1 AD-4 AD-1 ARM-2P ARM-4P ARM-3P ARM-6P AD-4 Manufactured by: ECR International Inc. 2201 Dwyer Avenue, Utica, NY 13501 Tel. 800 253 7900 www.ecrinternational.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Symbols and Warnings ..................3 Introduction ........................3 Product Features ......................4 Mounting Instructions .....................5 Electrical Specifications & wiring ..................5 Sequence of Operation ....................6 ARM-4P Wiring Schematic ....................7 ARM “Cold Start” Applications ..................8 ARM “Tankless Coil” Applications ..................11 ARM With AD Expansion Modules .................. -
Page 3: Safety Symbols And Warnings
This manual is intended to familiarize the installer and hazard. Improper installation could result in death user of the Argo ARM Series Switching Relays with their or serious injury. Read this manual and understand installation and operation to assure normal trouble-free all requirements before beginning installation. -
Page 4: Product Features
NOTE: The 4-zone ARM-4P is featured in this manual. Expansion module plug-in – makes adding zone(s) easy The ARM2-P, ARM-3P, and ARM-6P circulator relays have and economical through the use of the Argo AD-1 & identical electrical specifications. Differences in operating AD-4 expansion modules. -
Page 5: Mounting Instructions
INSTALLATION MANUAL AND OPERATING INSTRUCTIONS Electrical Specifications & Wiring MOUNTING INSTRUCTIONS Mount Argo ARM Series Switching Relays vertically on a WARNING solid wall or partition. Manufacturer recommends, for your convenience, that the Electrical shock hazard. Disconnect power before control be mounted as close as possible to the device to be installing or servicing. -
Page 6: Sequence Of Operation
INSTALLATION MANUAL AND OPERATING INSTRUCTIONS Sequence of Operation When a zone calls for heat (circuit is closed) Isolated switch coil is energized and the contact closes. X-X switch is closed. (X1-X1 and X2-X2 switches closed on ARM-2P) and X-X indicator light turns on. Controller relay closed and ZC-ZR indicator light turns on. -
Page 7: Arm-4P Wiring Schematic
INSTALLATION MANUAL AND OPERATING INSTRUCTIONS WIRING SCHEMATICS PN 240005129 Rev. C [03/01/2018]... -
Page 8: Arm "Cold Start" Applications
INSTALLATION MANUAL AND OPERATING INSTRUCTIONS ARM “COLD START” APPLICATION Factory installed jumper between ZC and ZR. Each zone thermostat will signal the ARM control to operate its zone circulator and start the boiler through the XX isolated end switch. JUMPER Placed between terminals ZC and ZR. - Page 9 INSTALLATION MANUAL AND OPERATING INSTRUCTIONS ARM “COLD START” WIRING ARM-4P to MH L8148 ARM “COLD START” WIRING ARM-4P to Millivolt Gas Valve PN 240005129 Rev. C [03/01/2018]...
- Page 10 INSTALLATION MANUAL AND OPERATING INSTRUCTIONS ARM “COLD START” WIRING ARM-4P to 24 Volt Gas Valve PN 240005129 Rev. C [03/01/2018]...
-
Page 11: Arm "Tankless Coil" Applications
INSTALLATION MANUAL AND OPERATING INSTRUCTIONS ARM “TANKLESS COIL” APPLICATION REMOVE factory installed jumper between ZC and ZR. ARM “TANKLESS COIL” APPLICATION Tankless coil requires a boiler aquastat. Each zone thermostat will signal the ARM to start its zone circulator and send a call for heat to the boiler aquastat. - Page 12 When using ZC-ZR careful attention must be paid to keeping the polarity of the wiring consistent between the Argo control and the boiler aquastat. Failure to do so could result in a secondary source of power activating the boiler under certain circumstances which could result in serious injury or death.
-
Page 13: Arm With Ad Expansion Modules
AD-1 Expansion Module plugs into the ARM-2P, ARM- to zone module terminal. If additional zones are 3P, ARM-4P, and ARM-6P to provide one additional required a telephone jack tee adapter (Argo Item heating zone. #J8) can be plugged into the “in” from master Multiples of AD-1 (single zone) Expansion Modules can terminal. -
Page 14: Arm To Field Replacement Transformer
INSTALLATION MANUAL AND OPERATING INSTRUCTIONS ARM TO FIELD REPLACEMENT TRANSFORMER WIRING PN 240005129 Rev. C [03/01/2018]... -
Page 15: Arm With Dpm-2 Outdoor Reset Control
Control plugs into Argo control equipment with a data port or as a stand alone device easily wired into almost any system. -
Page 16: Arm With Power Robbing Thermostat
INSTALLATION MANUAL AND OPERATING INSTRUCTIONS ARM WITH /POWER ROBBING THERMOSTAT Argo ARM control works well with all standard and most programmable setback thermostats. If the programmable thermostat you are using causes the control board relays to chatter, you will need an external 24V power supply (transformer) and Argo IR882 Isolation Relay. -
Page 17: Replacement Parts
Field-mounted 40 VA transformer (not used on AD-1, or AD-4) Telephone Jack Tee Adapter TECHNICAL SUPPORT For technical support on this and all Argo products, please contact ECR International Technical Service at 1-800-325-5479. Please have your model number available when calling. - Page 18 NOTES PN 240005129 Rev. C [03/01/2018]...
- Page 19 NOTES PN 240005129 Rev. C [03/01/2018]...
- Page 20 2201 Dwyer Avenue, Utica, NY 13501 All specifications subject to change without notice. Tel. 800 253 7900 ©2018 ECR International, Inc. www.ecrinternational.com BDR THERMEA GROUP...
