Radio Model - Quick Installation Guide
Radio Model Name:
The Aurora miniRITE radio model contains two radio transceivers running at 3.84 MHz and 2.4 GHz and both implemented on a single hardware platform.

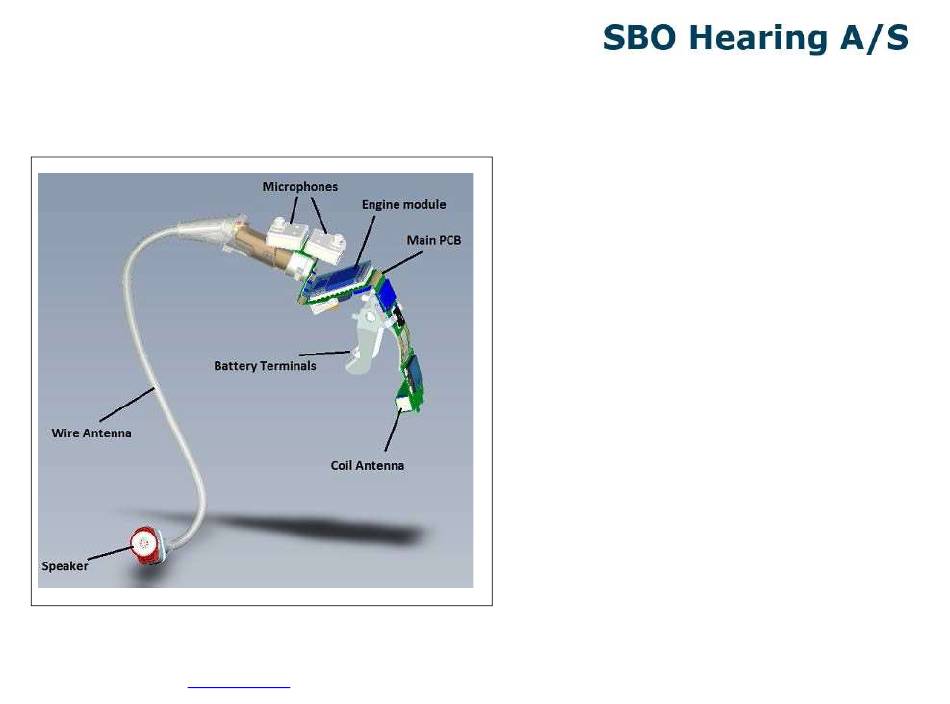

Aurora miniRITE Radio Model – 3D overview
SBO Hearing A/S, Kongebakken 9, 2765 Smorum - DK-Denmark,
VAT-no.: DK39818558,
Aurora miniRITE
www.sbohearing.com
The radio model is implemented in an engine module mounted on the
main PCB with connections to the antennas, the microphones, the speaker
and the battery terminals. The radio model can be seen in 3D overview to
the left:
The 3.84 MHz radio is a low power, short range inductive radio
transceiver working at a single channel at 3.84 MHz using MSK
modulation with 320 kbit/s data rate and connected to a small coil
antenna.
The 2.4 GHz radio is a Bluetooth Low Energy (BLE) transceiver
using GFSK modulation with 1 Mbit/s data rate also capable of
proprietary reception modes with higher data rates (2 Mbit/s, 4 Mbit/s)
and connected to a short wire antenna.
