Summary of Contents for Fanbao QJY3.0-E

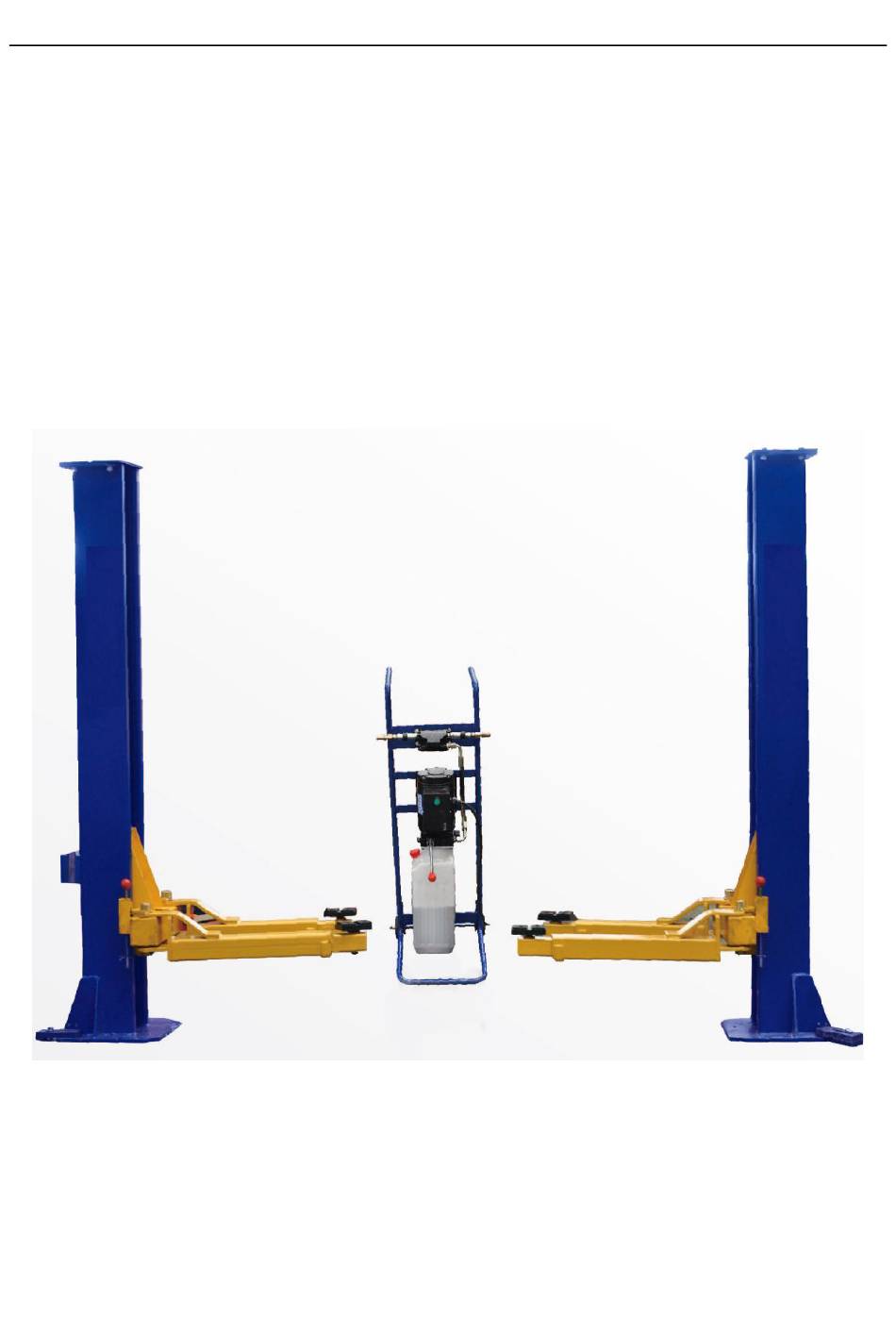

- Page 1 Two post hydraulic lift QJY3.0-E Instructions and Maintenance Original Manual QJY3.0-E Two post lift without wheel...
-
Page 2: Table Of Contents
Two post hydraulic lift QJY3.0-E CONTENTS Safety ................................3 Introduction ............................3 Symbols .............................. 3 Intended Use ............................3 Safety Instructions for Commissioning....................3 Safety Instructions for Operation......................4 Safety Instructions for Servicing......................4 Safety Features ..........................4 Production information ..........................5 Specifications............................ -
Page 3: Safety
Two post hydraulic lift QJY3.0-E 1 Safety Introduction Thoroughly read this manual before operating the lift and comply with the instructions. Always display the manual in a conspicuous location. Personal injury and property damage incurred due to non-compliance with these safety instructions are not covered by the product liability regulations. -
Page 4: Safety Instructions For Operation
Two post hydraulic lift QJY3.0-E Safety Instructions for Operation Read the operating manual. Lift operation by authorized personnel over 18 years only. Always keep the lift and lift area clean and free of tools, parts, debris etc. Once the disk adapters contact the lift points, check arm restraints for engagement. -
Page 5: Production Information
Two post hydraulic lift QJY3.0-E 1.7.3 Collision Prevention Switch A limit switch prevents collisions between cylinder top end and its slide block. 1.7.4 Pinch Point Protection During lowering cycles the support arms lower down by hold to run, safety bar provided for pinch protection. -
Page 6: Safety Warnings
Two post hydraulic lift QJY3.0-E QJY3.0-E Type Bottom bar Capacity 3000kg ＜55s Lifting time ＞20s Descent time Max. lifting height 1500mm Min. lifting height 110mm range of rubber pad 110~160mm adjustable scope for arm R750~R1130 size of outside column <3400mm size of inside column >2400mm... -
Page 7: Packing, Transport And Storage
Two post hydraulic lift QJY3.0-E Packing, transport and storage Only skilled personnel who are familiar with the lift and this manual shall be allowed to carry out packing, lifting, handling, transport and unpacking operations. Packing The packing of the lift is delivered in following components: Base unit packed in a steel frame, wrapped up in non-scratch material, including the all accessories. -
Page 8: Installation Steps
Two post hydraulic lift QJY3.0-E Installation steps Step One (determine location and marks with chalk on the floor): 1. Choose anyone post (Both of them are the same. After that, use a chalk line to layout a grid for the post locations and make an outline of the posts on the floor at each location. -
Page 9: Operation
Two post hydraulic lift QJY3.0-E Step Two (Mounting two columns): 1. Drill each anchor hole in the concrete using a rotary hammer drill. To assure full holding power, do not ream the hole or allow drill to wobble. 2. After drilling, remove dust thoroughly from each hole and make certain that the column remains aligned with the chalk line during this process. -
Page 10: Controls
Two post hydraulic lift QJY3.0-E Controls 5.1.1 Control Unit Unloading handle 1. Green button: Raise the lift 2. Unloading handle: lower the lift, hold-to-run type control. 5.1.2 Arm restraint Once the disk adapters contact the lift points, check arm restraints for engagement. - Page 11 Two post hydraulic lift QJY3.0-E 2. Slowly position vehicle midway between adapters. Apply the parking brake. 3. Swing and telescope arms as required to position adapters under vehicle manufacturer's recommended lift points. 4. Turn the disk adapters that they evenly contact all four lift points.
- Page 12 Two post hydraulic lift QJY3.0-E 5.2.4 Lowering During raising and lowering cycles: Closely watch the vehicle and the lift, do not allow anyone to stay in lift area and make sure the vehicle doors are closed. 1. Remove tools, stands or other objects from lift bay.
-
Page 13: Maintenance
Two post hydraulic lift QJY3.0-E 6 Maintenance Authorized personnel only! Turn off and lock the main switch before servicing the lift. The maintenance intervals indicated below apply to average workshop use. The lift should be inspected more frequently for severe use applications... - Page 14 Two post hydraulic lift QJY3.0-E 6.3.2 Greasing points l Slide tracks The slide tracks inside the columns should be greased every six months (or more frequently in case of noise generation). Slightly greases the slide tracks over their whole length using a brush.
-
Page 15: Cleaning
Two post hydraulic lift QJY3.0-E 6.3.4 Lift stability l Every six months check the nuts of all anchor bolts for correct installation torque Tinst. l Retighten them as required. Installation Torque Tinst 80Nm Cleaning Do not use high pressure/steam jet cleaners or caustic cleaning agents. -
Page 16: Troubleshooting
Two post hydraulic lift QJY3.0-E 7 Troubleshooting Trouble Diagnosis Remedy Lift does not respond Main switch off Turn the main switch on Main fues defective Replace the main fuses Motor starts up, pressure Lowering screw open Close lowering screw build-up insufficient to... -
Page 17: Ec Declaration
CCQS UK Ltd., Level 7, Westgate House, Westgate Rd., London W5 1YY UK Description of Equipment: QJY3.0-E, capacity 3000kg, two post lift, manual safety catches, asymmetric loading arms For MD Annex IV machinery: A sample of this machinery has been presented to Notified Body number 1105 CCQS UK Ltd., Level 7, Westgate House, Westgate Rd., London W5 1YY UK. -
Page 18: Attached Drawings
Two post hydraulic lift QJY3.0-E 10 Attached drawings 10.1 Electrical drawing 10.2 Hydraulic drawings... -
Page 19: Explosive View
Two post hydraulic lift QJY3.0-E 10.3 Explosive view...
