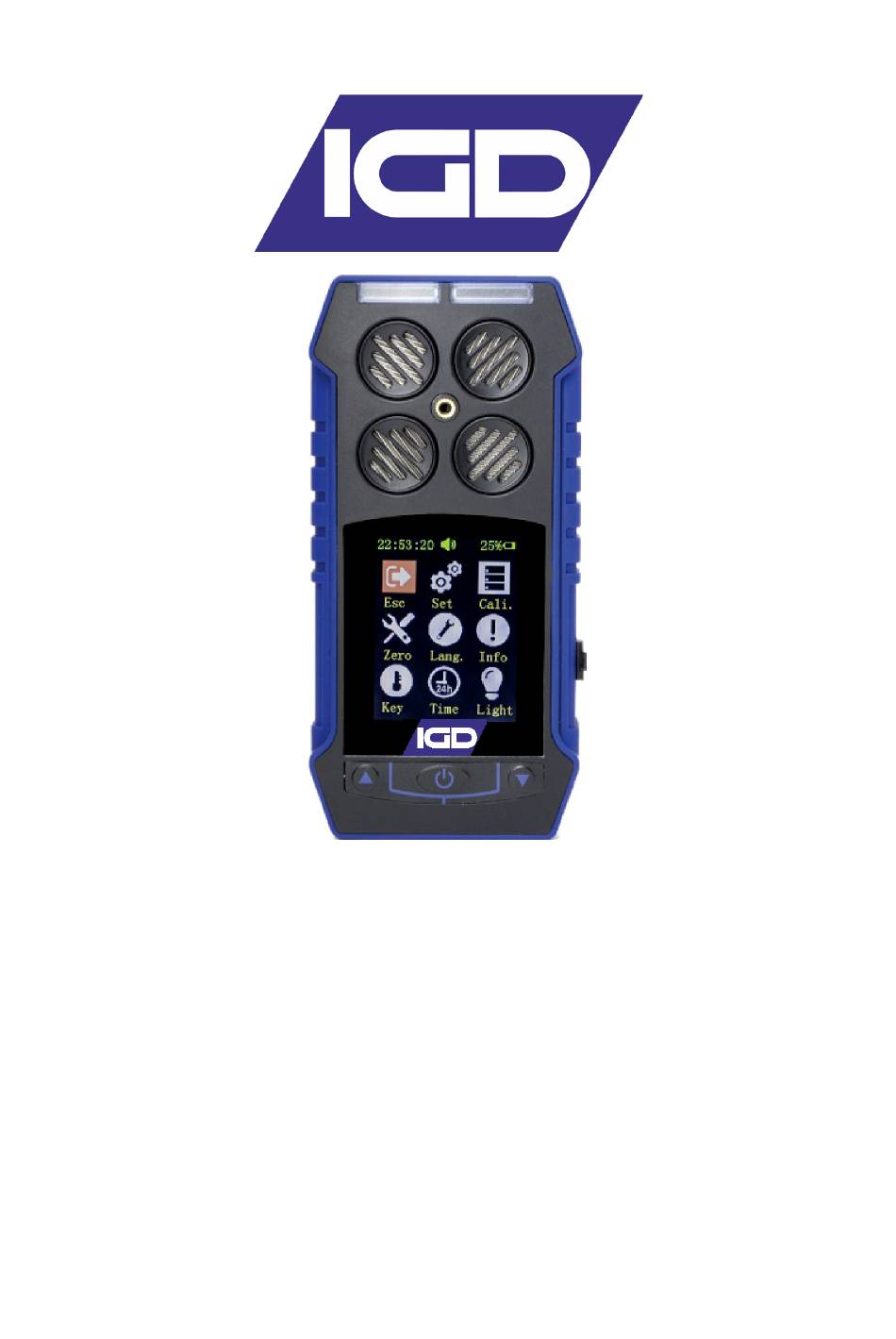

- Page 1 Portable Multi-Gas Detector User Manual International Gas Detectors Ltd ISO9001:2015 V1.0 Document Reference: POR-MULT...
- Page 2 International Gas Detectors Ltd T: +44(0)161 483 1415 Brief Introduction Our multi-gas detector can detect up to four gases continuously and simultaneously. Our portables are widely used non-ATEX environments. Clients also adopting the use of portable gas detectors as alarm verification tools in conjunction with fixed gas detectors, as an extra level of safety.
- Page 3 International Gas Detectors Ltd T: +44(0)161 483 1415 Fig. A Name Name Alarm light Buzzer Button Sensors LCD screen 3. Technical Data (for standard gases, consult IGD for other ranges reference on the datasheet). Target Gas Range Low alarm High alarm Resolution 0～100%LEL...
- Page 4 International Gas Detectors Ltd T: +44(0)161 483 1415 Working environment: -20℃～50℃, ＜95%RH (no dew) Power Source: DC3.7V Li-on battery, 2000mAh Charging time: 6h~8h Working time: ≥ 8h continuously (without alarming) Gas Sensor Life: 2 years Protection Grade: IP65 Weight: Appr. 400g (with battery) Dimensions: 130mm×67mm×30mm(L ×...
- Page 5 International Gas Detectors Ltd T: +44(0)161 483 1415 buzzer issues a "beep" sound. The LCD screen prompts the user to shut down the interface shown in figure 2, the user through the ▲ ▼ keys to select whether to shut down. If you choose to shut down, the screen no longer displays any information, and will shut down.
- Page 6 International Gas Detectors Ltd T: +44(0)161 483 1415 4.3.2 When the detected gas concentration is higher than the pre- set low alarm value and less than the high alarm value [Note: when the oxygen concentration is lower than the low alarm value], the detector is in a low alarm state.
- Page 7 International Gas Detectors Ltd T: +44(0)161 483 1415 4.3.3 When the detected gas concentration is higher than the pre- set high alarm value, the detector is in the high alarm state. Audible visual alarm will sound continuously. The red indicator light flashes synchronously, plus the change of the gas concentration value is displayed on the screen.
- Page 8 International Gas Detectors Ltd T: +44(0)161 483 1415 4.3.4 When the detected gas concentration is higher than the sensor range, the audible visual alarm is activated and the LCD screen is on, the vibrator is activated, and the screen will display the maximum range of gas, indicating over range.
- Page 9 International Gas Detectors Ltd T: +44(0)161 483 1415 information viewing, back light settings, time settings. Press the " " button to enter the menu selection, in the menu move the cursor to “ESC”, then press " " to return to the normal monitoring display as shown in Figure 6.
- Page 10 International Gas Detectors Ltd T: +44(0)161 483 1415 Figure 7. Sensor Type Value Remark 1/4(Current/Total) ↑(H) 2/4(Current/Total) ↑(H) 3/4(Current/Total) ↑(H) 4/4(Current/Total) ↓(L) 2016-06-16 12:15:35 Alarm time The maximum number of alarm records (logs) is 500. b. Curve display function: On the main interface, press the ▼ to enter the curve display interface, use the ▲...
- Page 11 International Gas Detectors Ltd T: +44(0)161 483 1415 4.4.2 Detector menu settings In the normal detection mode, press " " key to enter the menu, then press ▲ ▼ key to select the setting of gas parameters, calibration, calibration zero, language settings, information view, back light settings, time setting function.
- Page 12 International Gas Detectors Ltd T: +44(0)161 483 1415 Display Description 1. Move the cursor to set and press " " to enter set interface, input four passwords, as shown in Figure 8, the user can press " " to move the cursor, input the password by ▲ ▼...
- Page 13 International Gas Detectors Ltd T: +44(0)161 483 1415 parameter value, as shown in Figure 14, modify the cursor to move to the last press the ▼ key to return to the previous menu. Warning: 1. zero calibration, please ensure you use Nitrogen/Instrument Air, otherwise will Fig.
- Page 14 International Gas Detectors Ltd T: +44(0)161 483 1415 7. Time set In the menu function interface, select the time, enter it as shown in the figure 18, press the " " key to move the cursor, use the▲▼key to set the current system time, press the▼key Fig.
- Page 15 International Gas Detectors Ltd T: +44(0)161 483 1415 Inaccurate Sensor is overdue Please contact IGD for indication service service and calibration calibration bump test Bump test and zero the performed sensor. Fault indication Battery voltage Please charge it and reset...
- Page 16 International Gas Detectors Ltd T: +44(0)161 483 1415 calibrated every six months and bump tested before and after use. 6.7 Please dispose of the used Lithium batteries to the appointed places or send to our company. Do not discard them into the general waste.
- Page 17 International Gas Detectors Ltd T: +44(0)161 483 1415 International Gas Detectors Ltd Triton House Crosby Street Stockport Manchester United Kingdom SK2 6SH Tel: +44 (0)161 483 1415 E-mail: sales@internationalgasdetectors.com Website: www.internationalgasdetectors.com V1.0 Email:sales@internationalgasdetectors.com - 16 -...
