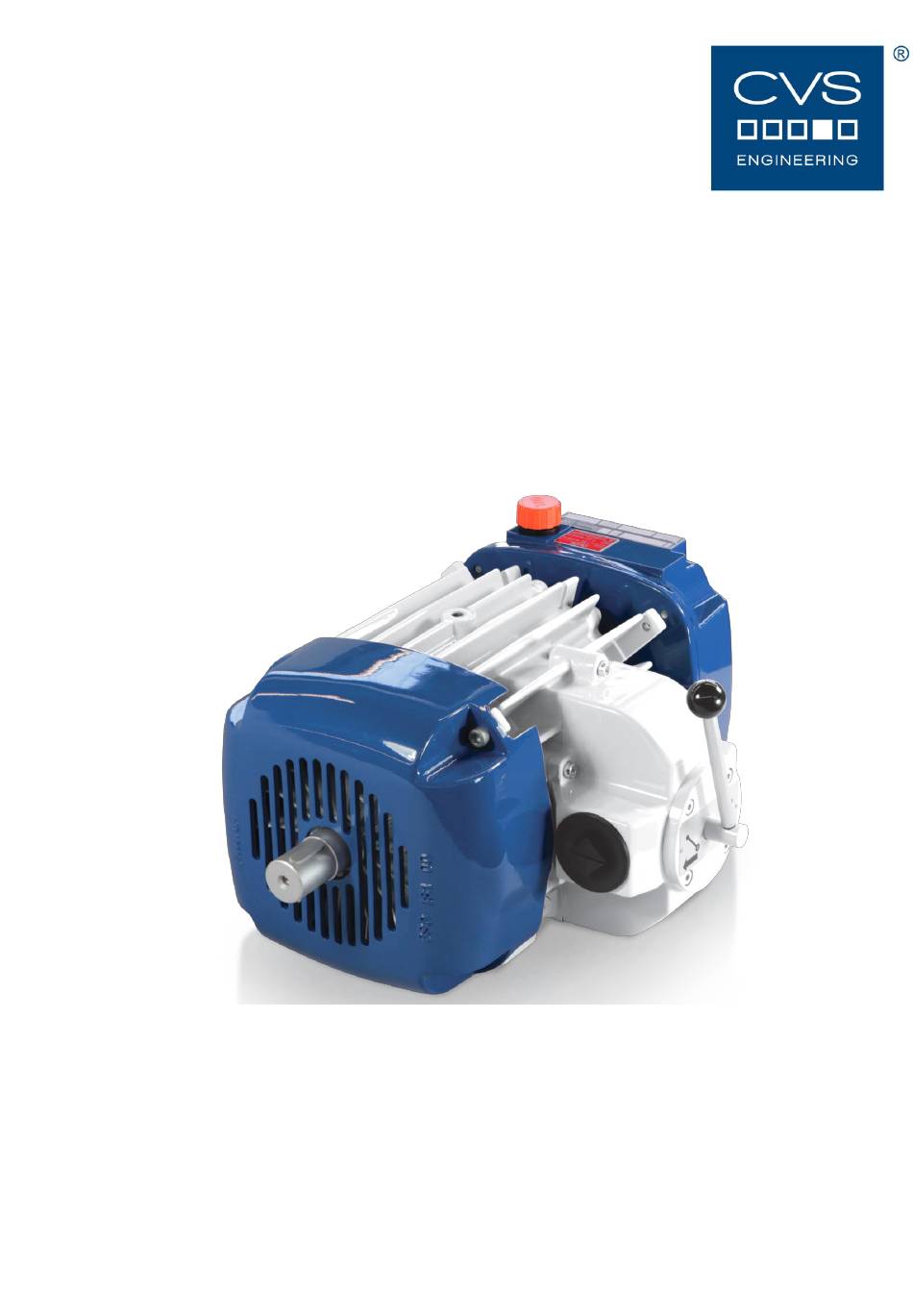

- Page 1 Contents Operating instructions VacuStar L400 Doc-ID: 5028 / BA / EN Release: Rev. 03 / 05.10.2018 The operating instructions must be read by the VacuStar L400 operator before start-up!
- Page 2 Translation of the original operating manual © CVS engineering GmbH Großmattstraße 14 79618 Rheinfelden / Germany Phone: +49 (0)7623 71741-0 Customer service: +49 (0)7623 71741-0 E-Mail: info@cvs-eng.de Internet: www.cvs-eng.de...
-
Page 3: Table Of Contents
Operating instructions VacuStar L400 Contents General ..................4 Information regarding the operating instructions ... 4 Pictogram explanation ........... 5 Limitation of Liability ............6 Copyright protection ............6 Spare parts ..............7 Warranty conditions ............7 Customer Service ............7 Safety .................. -
Page 4: General
1.1 Information regarding the operating instructions These operating instructions provide important information on how to deal with the VacuStar L400. A precondition for safe operation is the observance of all specified safety and handling instructions. Furthermore, all local accident prevention regulations and general safety regulations valid for the application area of the VacuStar L400 must be observed. -
Page 5: Pictogram Explanation
Operating instructions VacuStar L400 General 1.2 Pictogram explanation Warning notes Warning notes are characterised by pictograms in these operating instructions. The warning notes are marked by signal words expressing the extent of the hazard. It is absolutely essential to observe the notes and to proceed with caution in order to prevent accidents as well as bodily injuries and property damage. -
Page 6: Limitation Of Liability
The manufacturer guarantees the correct functioning of the applied process technology and the performance parameters identified. The warranty period commences on the date the VacuStar L400 is delivered to the customer. Components are exempted from the warranty and from claims for defects as far as wear and tear damage is concerned. -
Page 7: Spare Parts
Operating instructions VacuStar L400 General 1.5 Spare parts WARNING! Risk of injury by incorrect spare parts! Incorrect or defective spare parts can result in damage, malfunctions or total failure and also impair safety. Therefore: – Use only the manufacturer's original spare parts. -
Page 8: Safety
2.3 Operator's responsibility The VacuStar L400 is used for industrial purposes. The operator of the VacuStar L400 is therefore subject to the legal obligations concerning occupational safety. The provisions valid at the place of installation as well as the safety and accident prevention regulations of the Institution for statutory accident insurance and prevention must be observed. -
Page 9: Operating Personnel
2.5 Personal protective equipment When handling the VacuStar L400, it is necessary to wear personal protective equipment, in order to minimise health hazards. ... -
Page 10: Occupational Safety And Special Risks
Observe the safety notes listed here and the warning notes in the other chapters of these instructions to reduce health hazards and to avoid dangerous situations. Assembly of the VacuStar L400 The relevant dangerous spots on the VacuStar L400 are identified by these pictograms: DANGER! General danger pictogram! …... - Page 11 Improper operation DANGER! Danger due to improper operation! – Only use VacuStar L400 in a perfect technical condition. Malfunctions that are relevant for safety have to be promptly eliminated. – Conversions of the VacuStar L400 are not permissible and can impair safety.
- Page 12 Operating instructions VacuStar L400 Safety Moving components WARNING! Risk of injury by moving components! Powered rotating components can cause the most serious injuries! Therefore during operation: – It is absolutely forbidden for persons to stay in the hazard area or in the immediate vicinity! –...
- Page 13 Improper transport Danger! Danger by falling down or tilting of the VacuStar L400! The weight of the VacuStar L400 may injure a person and cause serious bruising! Therefore: – Depending on the dead weight and size of the VacuStar L400, use a pallet on which the VacuStar L400 can be moved by means of a fork lift.
- Page 14 – Maintenance work and troubleshooting work may only be carried out by sufficiently qualified and instructed personnel. – Protect VacuStar L400 from being restarted, switch off drives! – Before starting any work, provide for sufficient space and freedom of movement during assembly.
-
Page 15: Technical Data
1) Final excess pressure at the pressure flange = 0 bar, suction and ambient temperature = 20 °C 2) Intake pressure at the suction flange = 1 bar, suction and ambient temperature = 20 °C Tab. 2: Operating data VacuStar L400 during compressor vacuum pump operation at rated speed Operating data during compressor operation at rated speed... - Page 16 Operating instructions VacuStar L400 Technical data Lubricating oil The use of multigrade oils will damage the VacuStar L400. In that case, the warranty on the part of CVS Engineering GmbH shall cease. Only single grade oils with the following specification are permitted...
-
Page 17: Design And Function

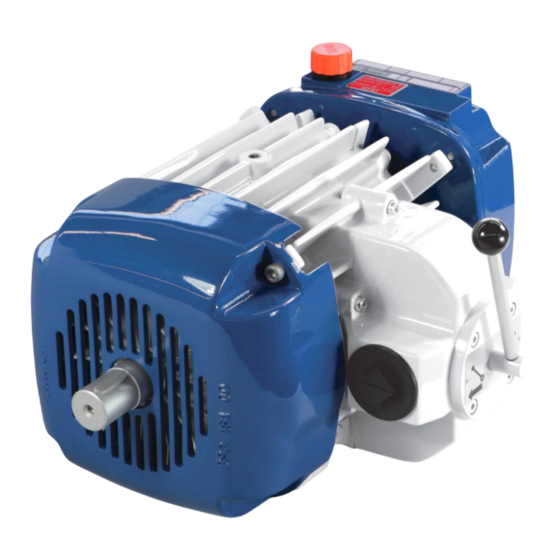

4 Design and function 4.1 Design Fig. 1: Design VacuStar L400 with and without a four-way switching valve A: Compressor vacuum pump operation with four-way switching valve The air feed direction (suction or pressure) is selected by the position of the switching lever. -
Page 18: Function
(pos. 11). Lubrication The VacuStar L400 is lubricated by means of an oil pump. Oil is pumped from the oil reservoir via the oil lines to the VacuStar L400's lubricating points. -
Page 19: Transport And Storage
Securely fasten the VacuStar L400 prior to transport (e.g. screw it onto a pallet) Transport and put down the VacuStar L400 with a fork lift or secure with straps and lift with suitable lifting gear. 5.3 Storage Storage of packages Store packages under the following conditions: ... -
Page 20: Start-Up And Operation
Start-up Open present shut-off devices Select with VacuStar L400 during compressor vacuum pump operation at suction or pressure operation with four-way switching valve. Attention: Switching valve must only be operated in the two end positions. Intermediate positions are not permitted. -
Page 21: Switching Off
Inspection of the ventilating valve As a matter of principle, a ventilating valve must be installed as safety element on the VacuStar L400's suction side. When the set vacuum is reached, the ventilating valve opens and admits atmospheric auxiliary air into the system. The operational capability must be checked weekly with the aid of a vacuum meter at the VacuStar L400's inlet. - Page 22 The connection is located opposite of the pressure and suction connection. If your system's cell ventilation is connected, you may operate the VacuStar L400 up to a vacuum of 100 mbar. A suction filter is located in the cell ventilation line. The filter must be cleaned weekly and replaced in case of visible damage.
-
Page 23: Maintenance
Operating instructions VacuStar L400 Maintenance 7 Maintenance 7.1 Safety during maintenance work See chapter 2.6 "Occupational safety and special risks". Personal protective equipment The following must be worn during all maintenance work: Safety working clothing Protective gloves ... - Page 24 Specialised staff (replace vane at more than 5 mm) Check cell ventilation valve Specialised staff Half-yearly Check non-return valve of VacuStar L400 Specialised staff 5,000 oh / 3 years Replace shaft sealing rings Specialised staff 10,000 oh / 5 years...
-
Page 25: Performance Of Maintenance Work
If maintenance is required, open filter casing and replace filter cartridge. Action after lengthy standstill If the standstill of the VacuStar L400 installed inside the vehicle lasts for more than a month, we recommend putting the VacuStar L400 into operation once a month for 15 minutes. - Page 26 Unscrew the locking screw in the inlet (fig. 1, pos. 16) Open vehicle box to allow the VacuStar L400 to be run without vacuum or pressure build-up. Switch on VacuStar L400 and allow approx. 0.5…1 l of a diesel- oil-mixture (1:1 mixing ratio) to be sucked into the VacuStar L400 through the hole in the inlet at approx.
-
Page 27: Malfunctions
Operating instructions VacuStar L400 Malfunctions 8 Malfunctions This chapter describes possible causes of malfunctions and troubleshooting tasks. Reduce the maintenance intervals if similar malfunctions occur repeatedly due to above-average intensive use so intervals correspond to the actual load. Contact the manufacturer in case of malfunctions that cannot be repaired with the aid of the following information (... -
Page 28: Malfunction Table
Speed too low Adjust speed Operator Wear of rotor vanes, Replace rotor vane, remove possibly caused by dirt or liquids dirt and have VacuStar L400 that have gotten into the Specialised staff overhauled at an authorised VacuStar L400 (sucking over of workshop... - Page 29 VacuStar L400 Foreign matter has been sucked pressure or vacuum, Operator over into the VacuStar L400 afterwards add lubricating oil according to chapter Lubricating oil inspection page 21. Speed too high Maintain speed limit...
-
Page 30: Spare Parts
Filter cartridge to suction air filter 432 161-00 10 Decommissioning and disposal A VacuStar L400 that is no longer usable should not be recycled as complete unit, but disassembled into individual components and recycled according to material types. Non-recyclable materials have to be disposed of in an environmentally compatible manner. -
Page 31: Index
Operating instructions VacuStar L400 Index Index Lengthy standstill ..........25 Acceptance ............8 Liability ..............6 Action sucking over ..........26 Lubricating oil ............16 Lubricating oil types ..........16 Cleaning Lubrication ............18 VacuStar L400 ..........25 Components, moving .......... 12 Maintenance ............23 Compressed air .......... - Page 32 Operating instructions VacuStar L400 Decommissioning and disposal Technical data............ 15 Warranty ............6, 7 Transport ............13, 19 Trouble shooting ..........14...
