Dell EMC-supplied power cable
and connector from the PDU
Zone B
AC input
cable B
Mating connector or
customer-supplied cable
Customer's PDU 1
Dell EMC-supplied power cable
and connector from the PDU
Zone B
AC input
cable B
Mating connector or
customer-supplied cable
Customer's PDU 1

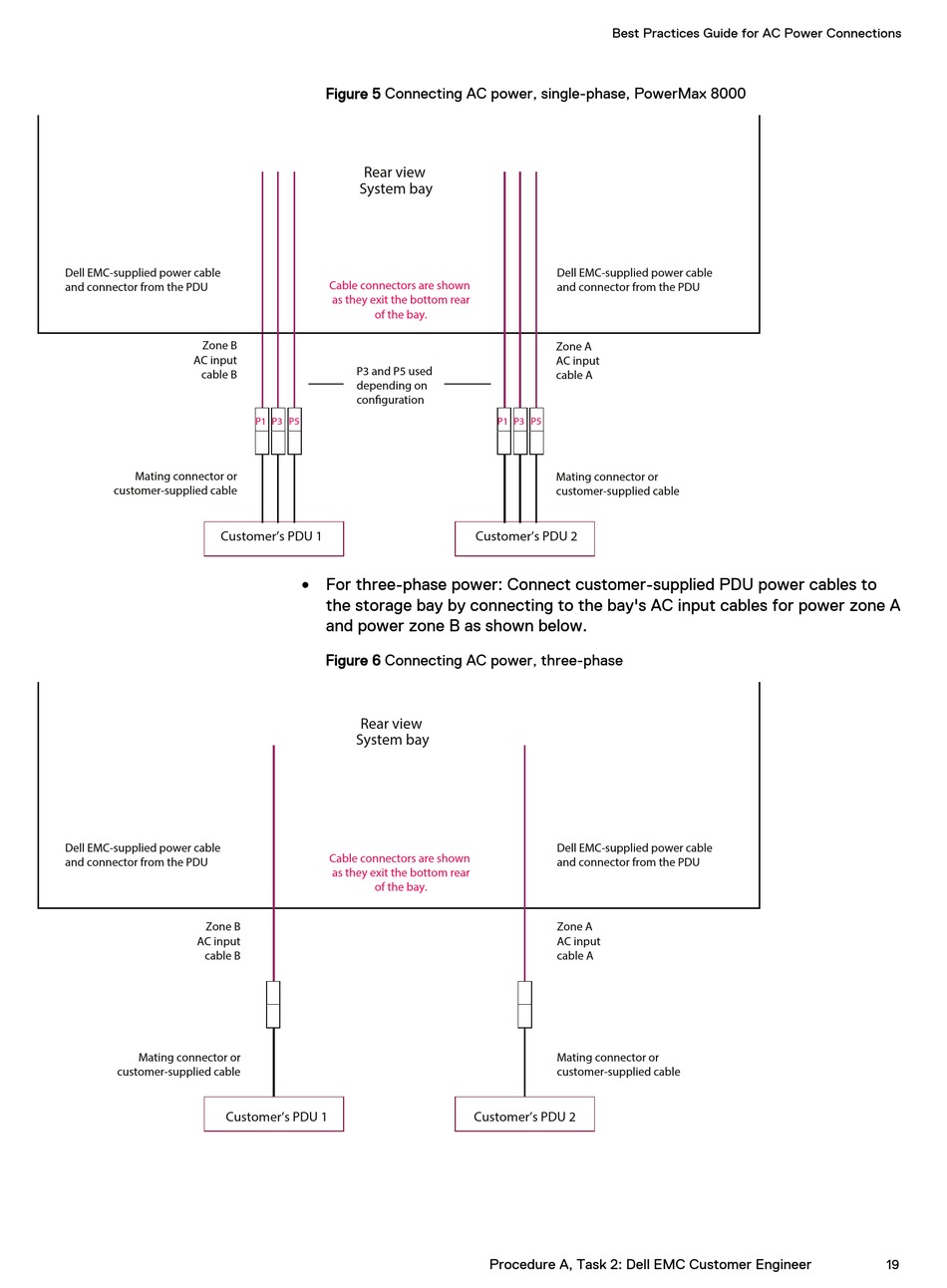

Figure 5 Connecting AC power, single-phase, PowerMax 8000
Rear view
System bay
Cable connectors are shown
as they exit the bottom rear
of the bay.
P3 and P5 used
depending on
con guration
P1 P3 P5
For three-phase power: Connect customer-supplied PDU power cables to
l
the storage bay by connecting to the bay's AC input cables for power zone A
and power zone B as shown below.
Figure 6 Connecting AC power, three-phase
Rear view
System bay
Cable connectors are shown
as they exit the bottom rear
of the bay.
Best Practices Guide for AC Power Connections
Dell EMC-supplied power cable
and connector from the PDU
Zone A
AC input
cable A
P1 P3 P5
Mating connector or
customer-supplied cable
Customer's PDU 2
Dell EMC-supplied power cable
and connector from the PDU
Zone A
AC input
cable A
Mating connector or
customer-supplied cable
Customer's PDU 2
Procedure A, Task 2: Dell EMC Customer Engineer
19
