SONOPAN KF-10 Instruction Manual

Photometric calibrator. stable light source for periodic test of illuminance meters between calibrations
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PPUH SONOPAN Sp. z o. o.
15-950 Bialystok, ul. Ciolkowskiego 2/2
phone/fax: +48 85 742 36 62
http://www.sonopan.com.pl
PHOTOMETRIC CALIBRATOR
KF-10
stable light source for periodic test of illuminance meters
between calibrations
INSTRUCTION MANUAL
SONOPAN Sp. z o. o. 2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KF-10 and is the answer not in the manual?

Questions and answers

Related Manuals for SONOPAN KF-10

Summary of Contents for SONOPAN KF-10

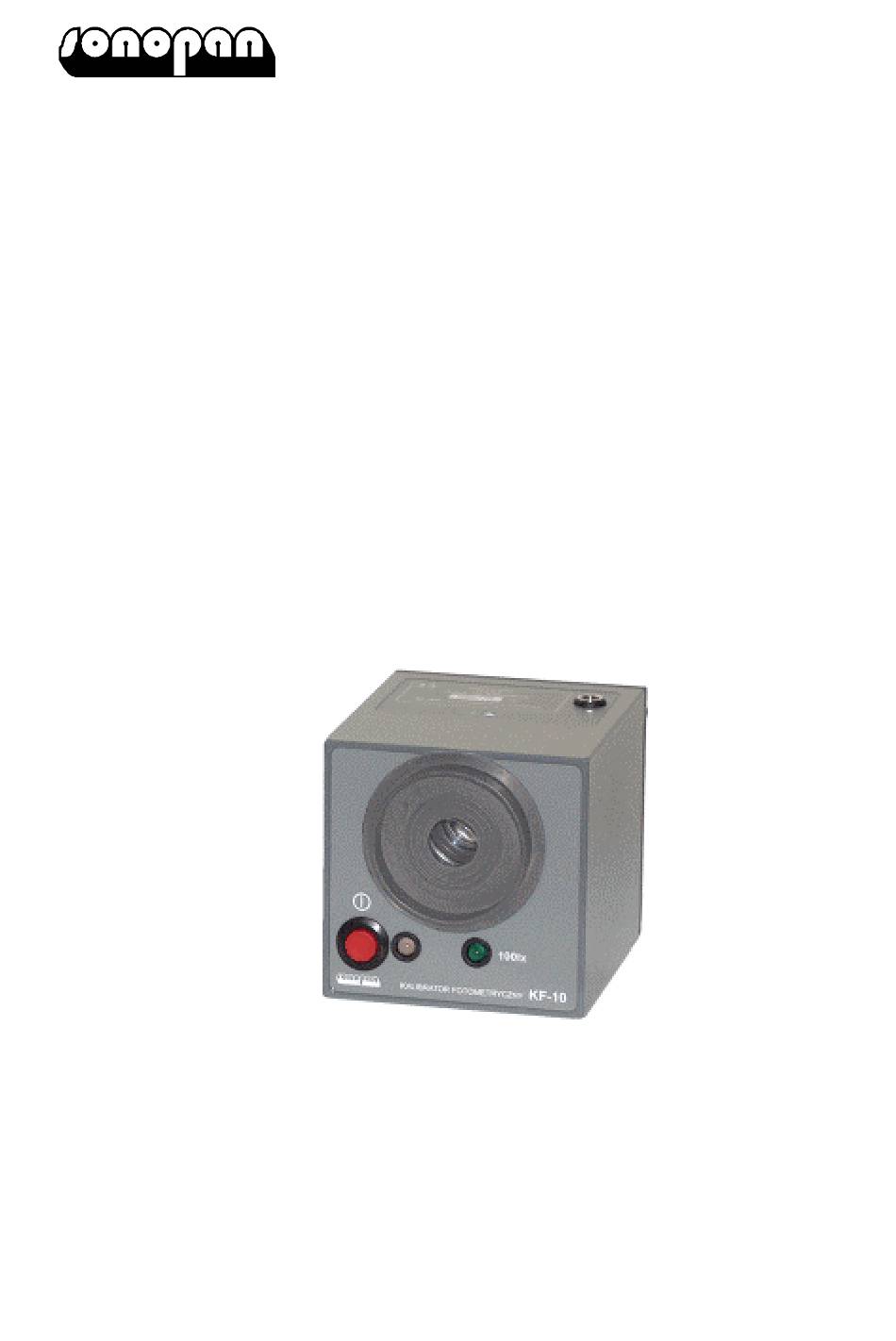

  • Page 1 PPUH SONOPAN Sp. z o. o. 15-950 Bialystok, ul. Ciolkowskiego 2/2 phone/fax: +48 85 742 36 62 http://www.sonopan.com.pl PHOTOMETRIC CALIBRATOR KF-10 stable light source for periodic test of illuminance meters between calibrations INSTRUCTION MANUAL SONOPAN Sp. z o. o. 2015...

  • Page 2: Table Of Contents

    CONTENTS: 1.Instrument characteristic ................. 2 2.Technical specification................2 3.Front panel....................3 4.Back panel ....................4 5.Operation....................4 6.Adjustment ..................... 5 7.Power supply ..................5 8.Accessories..................... 5 9.Recommendations for instruments use ............ 6 10. Warranty and repairs ................6 11. CE marking and conformance to EU Council directives ....... 7 –...

  • Page 3: Instrument Characteristic

    1. Instrument characteristic KF-10 photometric calibrator is a source of luminous exitance (radiated surface density of luminous flux) about 100lm/m . It is designed to periodic tests luxmeters made by SONOPAN. The device generating illuminance about 100lx in reception field of photometric probe. Optical system and electronically controlled light source guarantee high stability of luminous flux.

  • Page 4: Front Panel

    Otherwise illuminance is unspecified. • Photometric probe socket is used to place photometric probe which is being checked. Photometric probes made by SONOPAN have standard diameter Ø44mm and reception field Ø12.5mm. – 3 –...

  • Page 5: Back Panel

    5. Operation • Turn on luxmeter under test then check and eventually correct the zero with photometric probe covered. • Connect AC adapter to KF-10 photometric calibrator (Fig. 2). • Turn on the calibrator using key (Fig. 1), power indicator should lights green.

  • Page 6: Adjustment

    After finishing adjustment firmly fasten the blocking screw. 7. Power supply KF-10 photometric calibrator is powered by a stabilized AC adaptor with +12V output voltage and 0.6A max current. Only AC adaptor supplied by the manufacturer should be used to poring the instrument WARNING: AC adaptor has capability to reverse the polarity.

  • Page 7: Recommendations For Instruments Use

    • The instrument should be stored and transported only in original packaging. 10. Warranty and repairs KF-10 photometric calibrator is shipped with one year warranty. It does not require any special maintenance treatment. All repairs of the instruments are performed by the manufacturer.

  • Page 8: 11. Ce Marking And Conformance To Eu Council Directives

    11. CE marking and conformance to EU Council directives The product described in this instruction conforms to following EU Council directives: 2004/108/EC Electromagnetic compatibility. The conformance to above-mentioned requirements is confirmed by CE mark. This product cannot be thrown away with household waste. Deposit the product in an authorized electrical and electronic waste collection area for recycling.

Table of Contents
