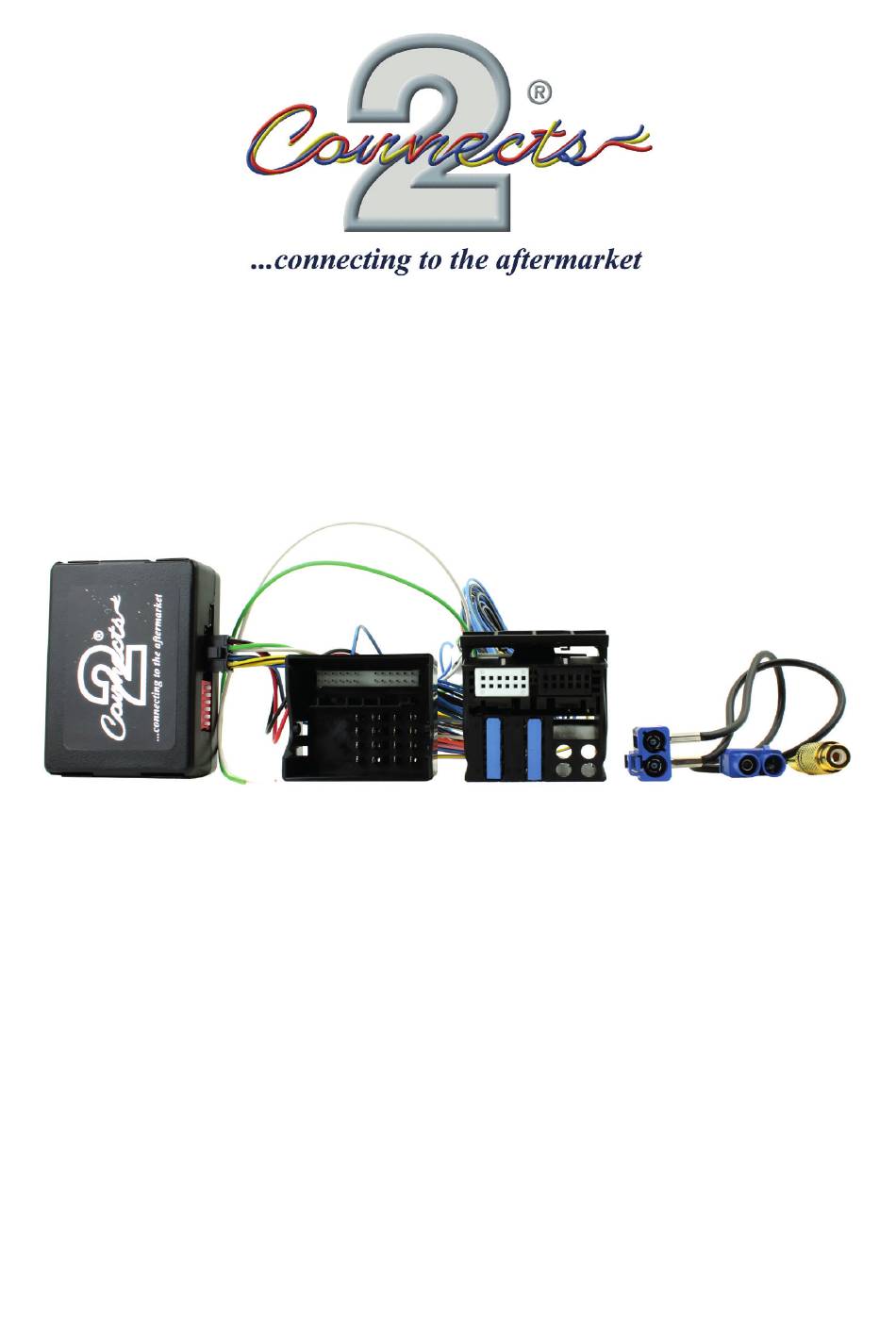

- Page 1 CAM-LR3-AD Rear View Camera-Input & Video-In-Motion Application: Land Rover Range Rover 2015 - 2016, Evoque 2015 - 2016 For Touch Screen Navigation Version 4.0 Head Units without Meridian Sound System www.connects2.com...
- Page 2 Connects2 can not be held responsible for the installation of this product. Technical Support Connects2 want to provide a fast and suitable resolution should you encounter any technical issues. With this in mind, when contacting Connects2, try to provide as much Information as possible.
- Page 3 Fakra male connector of the head unit. When reverse gear is engaged, the navigation will automatically switch to this input. Pin Configuration Quadlock Connector: Function Pin-No. CAN-HIGH Pin 3 (chamber B) CAN-LOW Pin 9 (chamber B) +12V permanent Pin 13 Ground Pin 11 www.connects2.com...
- Page 4 Pin 7 CAN-LOW – connection to the vehicle Pin 1 +12V Permanent Black Pin 5 Ground Green Pin 6 Activation of the video-in-motion function (+12V = TV-free activated) White Pin 2 No function Connection Diagram Supplied Adapter Supplied Harness Interface www.connects2.com...
- Page 5 INSTALLATION NB: Before installation, switch off ignition, disconnect the vehicle battery and remove the vehicle’s head unit. The interface is installed behind the vehicle’s head unit. Connecting the CAN-Box, Harness and Factory Head Unit Interface www.connects2.com...
- Page 6 Connect the double Fakra socket of the supplied adapter to the double blue Fakra-connector on the rear of the head unit. Connect the video RCA of the rear-view camera to the female RCA connector of the supplied adapter Note: Only compatible with NTSC cameras. www.connects2.com...
- Page 7 Connect a switch to the green cable and connect the green cable to +12V ACC. ● +12V = TV-Free is activated ● 0V = TV-Free is not activated Note: The loose white cable is not required and must be isolated. www.connects2.com...
- Page 8 NOTES www.connects2.com...
