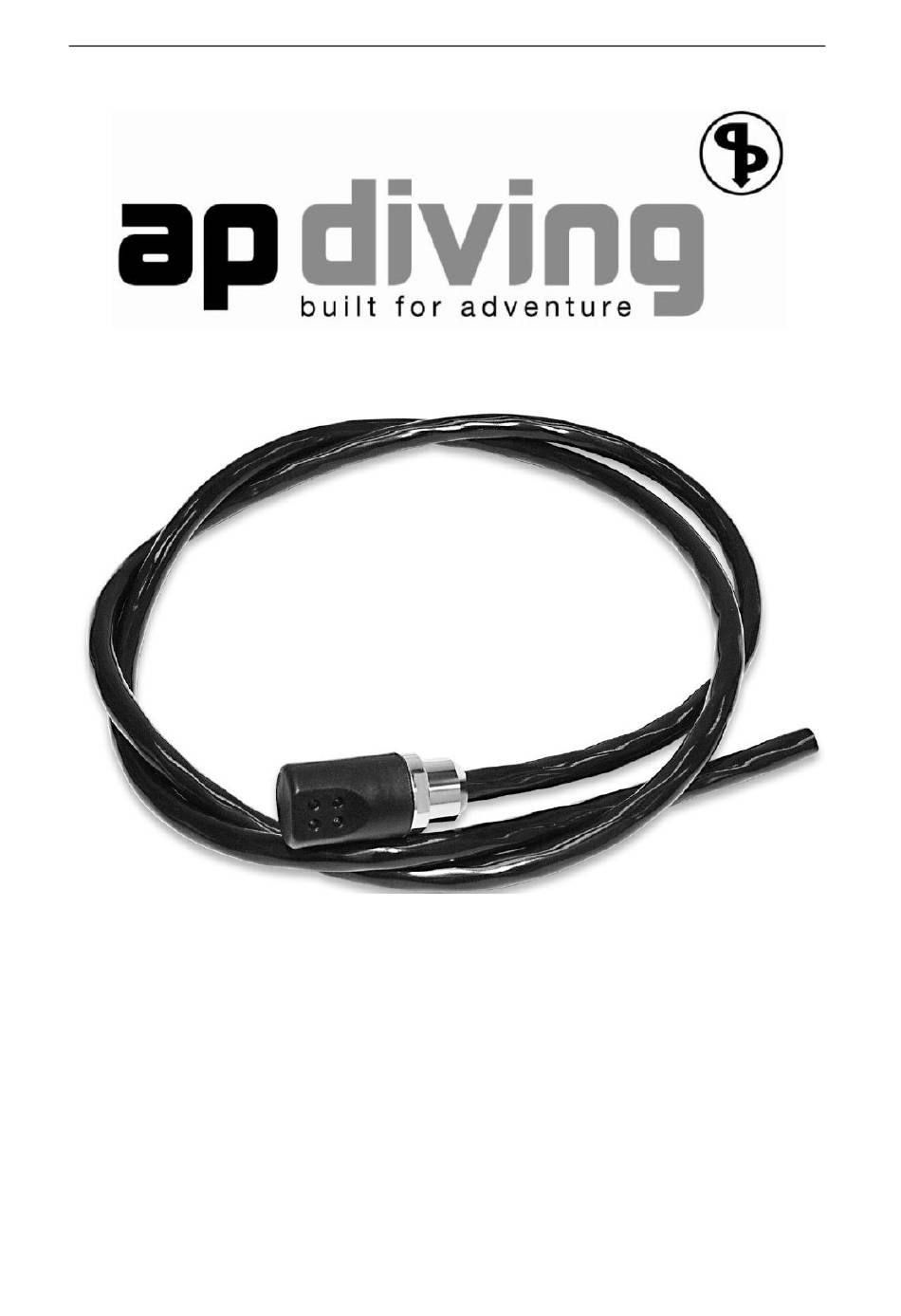

Head-Up Display (HUD) Dis/assembly Instructions
Head-Up Display (HUD)
Dis/assembly Instructions
Version 1.2
February 2017
Written by Tino de Rijk
Page 1 of 17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HUD and is the answer not in the manual?

Questions and answers

Related Manuals for AP Diving HUD

Summary of Contents for AP Diving HUD

  • Page 1 AP Diving Ltd. Head-Up Display (HUD) Dis/assembly Instructions Head-Up Display (HUD) Dis/assembly Instructions Version 1.2 February 2017 Written by Tino de Rijk Page 1 of 17...

  • Page 2: Table Of Contents

    1.2 Servicing ......................3 1.3 Copyright and Applicable Law ................ 3 2. Exploded Diagrams and Parts Lists ............. 4 2.1 HUD assembly at the Lid ................4 2.2 HUD assembly at the Mouthpiece ..............5 3. Tools ..................... 6 3.1 Special Tools needed ..................6 3.2 Standard Tools needed ..................

  • Page 3: Introduction

    The AP Diving Inspiration and Evolution line of rebreathers are fitted as standard with a twin Head-Up Display, further referred to in this manual as HUD. The HUD is a “static” device, in the sense that it does not contain moving or electrical or mechanical serviceable parts. It is designed to operate wet.

  • Page 4: Exploded Diagrams And Parts Lists

    AP Diving Ltd. Head-Up Display (HUD) Dis/assembly Instructions 2. Exploded Diagrams and Parts Lists 2.1 HUD assembly at the Lid NUMBER DESCRIPTION PART NUMBER QUANTITY Fibre optic cable RB_80_A HUD cable ring RB_80_08 HUD cable collet RB_80_09 HUD locking clamp...

  • Page 5: Hud Assembly At The Mouthpiece

    AP Diving Ltd. Head-Up Display (HUD) Dis/assembly Instructions 2.2 HUD assembly at the Mouthpiece NUMBER DESCRIPTION PART NUMBER QUANTITY RB_80_05S HUD clip (set of three sizes) RB_80_05M RB_80_05L HUD outer RB_80_01 HUD inner RB_80_02 HUD fibre guide RB_80_03 HUD locking clamp...

  • Page 6: Tools

    AP Diving Ltd. Head-Up Display (HUD) Dis/assembly Instructions 3. Tools 3.1 Special Tools needed When servicing the AP Diving HUD no special tools are needed. 3.2 Standard Tools needed The following standard tools are needed: 16 and 14 mm spanners (Access to) an ultrasonic bath for cleaning the parts.

  • Page 7: Hud Disassembly

    AP Diving Ltd. Head-Up Display (HUD) Dis/assembly Instructions 4. HUD disassembly Hold the HUD Locking clamp (RB80_07) with a 16mm spanner. Unscrew the HUD cable ring (RB80_08) with a 14mm spanner (anti-clockwise). Page 7 of 17...
  • Page 8 AP Diving Ltd. Head-Up Display (HUD) Dis/assembly Instructions Push the HUD cable ring nut up along the cable. Gently wiggle the fibre optic cable sideways, backwards and forwards until the cable collet (RB80_09) comes out far enough to pull it out with your fingers:...
  • Page 9 Once the cable collet is clear of the locking clamp, as shown, use a 16 mm spanner to loosen the HUD Locking clamp (RB80_07) by unscrewing it anti-clockwise. Unscrew the HUD locking clamp all the way and slide it up cable. The fibre optic cable and cable clamp can now be pulled together from the lid recess.

  • Page 10: Hud Assembly

    If any of the 4 LEDs do not light up, the lid should be returned to the factory. If you want the HUD to come in from the left on top of the mouthpiece, hold the HUD so that the cable comes in from the left.
  • Page 11 If you want the HUD to come in from the right, simply hold the HUD so the cable comes in from the right and then identify which two fibres are providing light to the lowest two (green) lights.
  • Page 12 AP Diving Ltd. Head-Up Display (HUD) Dis/assembly Instructions All four cables need to be inserted into the cable clamp (RB80_03), from left to right as you look at this picture. There is a small notch on top of the cable clamp (see red arrow below) and the green fibres need to be on either side of the notch (see green arrows below).
  • Page 13 AP Diving Ltd. Head-Up Display (HUD) Dis/assembly Instructions Slide the Cable Clamp (RB80_03), so there is an equal length of fibre on each side of the clamp. In the lid there is a small raised section, seen here in the 9 o’clock position (see red arrow below).
  • Page 14 AP Diving Ltd. Head-Up Display (HUD) Dis/assembly Instructions To line it up, gently rotate the cable while aligning it, so you can feel for correct alignment when the cable clamp slips onto the raised section within the lid. Once the cable is correctly pushed in and located correctly, keep it secured in its place by keeping it pushed down.
  • Page 15 AP Diving Ltd. Head-Up Display (HUD) Dis/assembly Instructions Slide the cable collet (RB80_09) back in place, ensuring the chamfered side is going into the chromed brass fitting. Tighten the locking clamp GENTLY with a 16mm spanner. Take care not to over-tighten!
  • Page 16 Head-Up Display (HUD) Dis/assembly Instructions Screw the cable ring (RB80_08) back into place (clockwise). Hold the HUD Locking clamp (RB80_07) in place with a 16mm spanner. Tighten the HUD cable ring (RB80_08) with a 14mm spanner (clockwise). Take care not to over-tighten!

  • Page 17: Testing Instructions

    Controller 1’s LEDs (one red and one green) should light up, followed by Controller 2’s LEDs. Check if all 4 LEDs are clearly visible on the mouthpiece-end of the HUD. Check if all 4 LEDs are evenly lit on the mouthpiece-end of the HUD.
