FEATURES
Guide floats for radius fittings
Guide can be locked for straight fittings
Lightweight
100% hardened alloy parts
One-hand operation
Screened inlet bushing
Hex guide key included

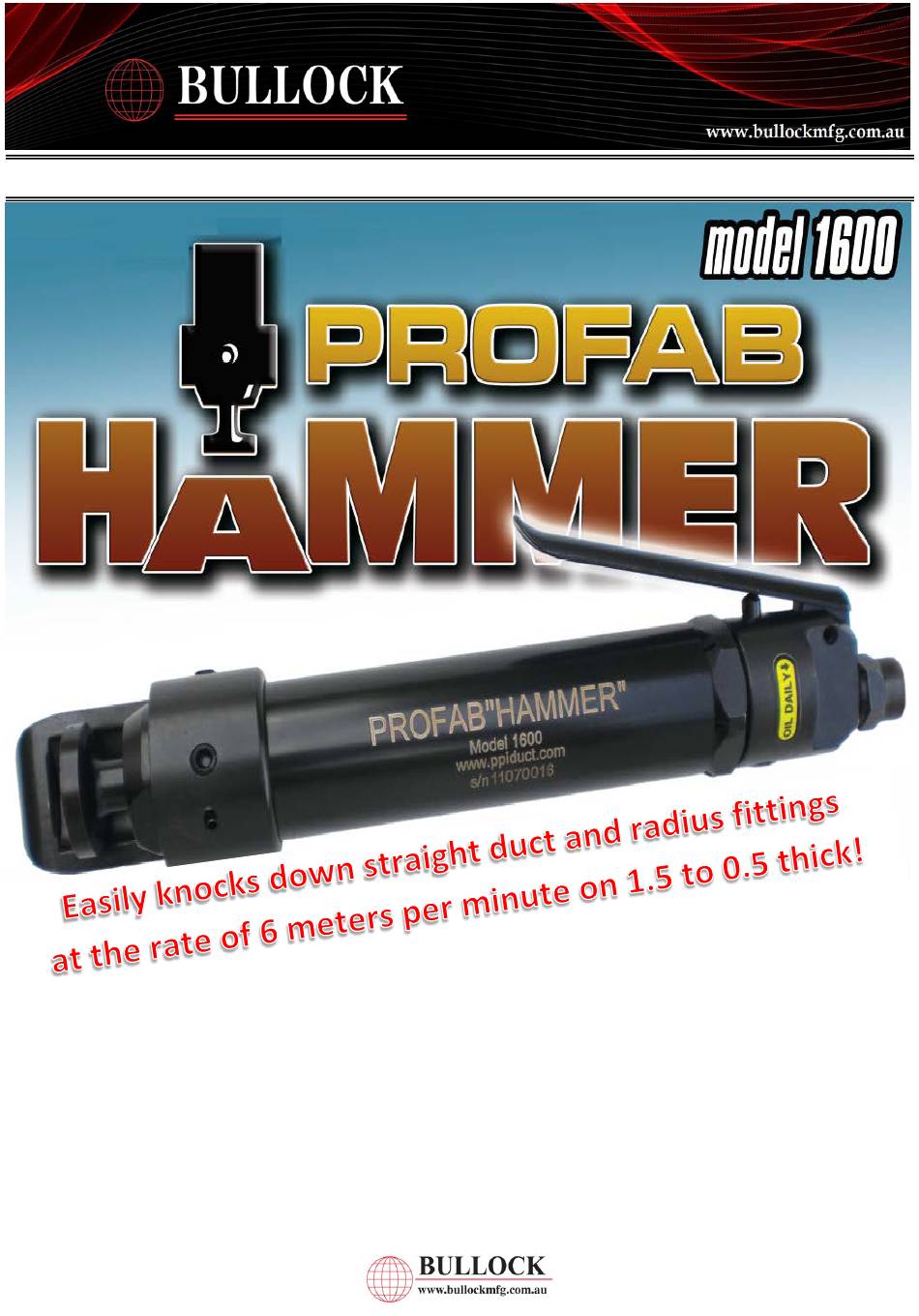

MODEL 1600 PROFAB HAMMER
Your local representatives details can be located at www.bullockmfg.com.au
SPECIFICATIONS
Capacity: 1.5 to 0.5 (16ga to 30ga)
4500 beats per minute
Overall length: 350mm (12")
Weight: 2.5kg (5lbs)
Air Consumption: 15 CFM
Air inlet: 1/4" npt
Air hose: recommend 3/8"
Operating pressure: 40kgs (90lbs)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for BULLOCK PROFAB HAMMER 1600
Summary of Contents for BULLOCK PROFAB HAMMER 1600
- Page 1 MODEL 1600 PROFAB HAMMER FEATURES SPECIFICATIONS Guide floats for radius fittings Capacity: 1.5 to 0.5 (16ga to 30ga) Guide can be locked for straight fittings 4500 beats per minute Lightweight Overall length: 350mm (12") 100% hardened alloy parts Weight: 2.5kg (5lbs) One-hand operation Air Consumption: 15 CFM Screened inlet bushing...
- Page 2 MODEL 1600 PROFAB HAMMER PARTS LIST 01 Back head 12 Rear valve block 02 O-Ring 13 Pin 03 Throttle valve 14 Valve 03-1 O-Ring 15 Front valve block 04 Spring 16 Piston 05 O-Ring 17 Barrel sleeve 06 Valve cap 18 Barrel 07 Lever 19 Driver...
