Summary of Contents for NOVANEX Inova OnTime

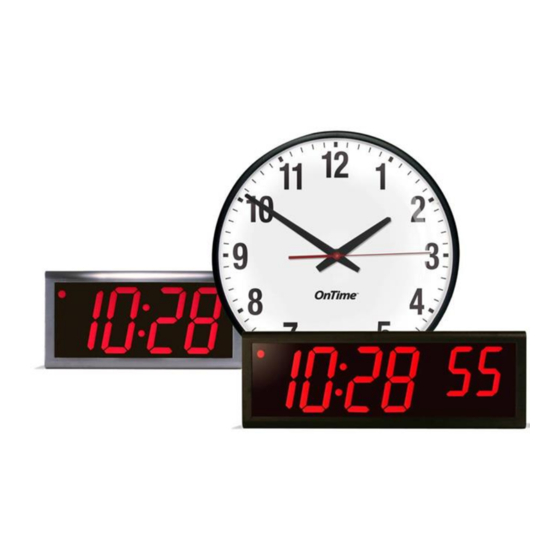

  • Page 1 ® Inova OnTime Clock Installation and User Guide Firmware version 1...
  • Page 2 All claims based on information publicly available at time of printing. All other product or service names mentioned in this document may be trademarks of the companies with which they are associated. © 2019 Novanex, Inc. | All rights reserved | page i...

  • Page 3: Table Of Contents

    All claims based on information publicly available at time of printing. All other product or service names mentioned in this document may be trademarks of the companies with which they are associated. © 2019 Novanex, Inc. | All rights reserved | page ii...
  • Page 4 All claims based on information publicly available at time of printing. All other product or service names mentioned in this document may be trademarks of the companies with which they are associated. © 2019 Novanex, Inc. | All rights reserved | page iii...

  • Page 5: Ontime Introduction

    All claims based on information publicly available at time of printing. All other product or service names mentioned in this document may be trademarks of the companies with which they are associated. © 2015 Novanex, Inc. | All rights reserved | page 1...

  • Page 6: Clock Identification

    All claims based on information publicly available at time of printing. All other product or service names mentioned in this document may be trademarks of the companies with which they are associated. © 2015 Novanex, Inc. | All rights reserved | page 2...

  • Page 7: Safety Instructions

    All claims based on information publicly available at time of printing. All other product or service names mentioned in this document may be trademarks of the companies with which they are associated. © 2015 Novanex, Inc. | All rights reserved | page 3...

  • Page 8: Technical Specifications

    All claims based on information publicly available at time of printing. All other product or service names mentioned in this document may be trademarks of the companies with which they are associated. © 2015 Novanex, Inc. | All rights reserved | page 4...

  • Page 9: Installation

    4.2. Unpack the Clock When the clock shipment arrives, inspect all packing boxes for damage. Unpack all clocks and inspect them so that you can report any damage to Novanex. 4.3. Power over Ethernet Cabling Plan The OnTime Clocks require connection to PoE enabled network equipment that can source power in compliance with IEEE 802.3af.

  • Page 10: Sites With Poe Enabled Network Equipment

    All claims based on information publicly available at time of printing. All other product or service names mentioned in this document may be trademarks of the companies with which they are associated. © 2015 Novanex, Inc. | All rights reserved | page 6...

  • Page 11: Surface Mounting The Analog Clock

    All claims based on information publicly available at time of printing. All other product or service names mentioned in this document may be trademarks of the companies with which they are associated. © 2015 Novanex, Inc. | All rights reserved | page 7...

  • Page 12: Mounting The Double Sided Analog Clock

    All claims based on information publicly available at time of printing. All other product or service names mentioned in this document may be trademarks of the companies with which they are associated. © 2015 Novanex, Inc. | All rights reserved | page 8...

  • Page 13: Surface Mounting The Digital Clock

    All claims based on information publicly available at time of printing. All other product or service names mentioned in this document may be trademarks of the companies with which they are associated. © 2015 Novanex, Inc. | All rights reserved | page 9...
  • Page 14 All claims based on information publicly available at time of printing. All other product or service names mentioned in this document may be trademarks of the companies with which they are associated. © 2015 Novanex, Inc. | All rights reserved | page 10...

  • Page 15: Pendant Mounting The Digital Clock - Single Or Double

    All claims based on information publicly available at time of printing. All other product or service names mentioned in this document may be trademarks of the companies with which they are associated. © 2015 Novanex, Inc. | All rights reserved | page 11...

  • Page 16: Cantilever Mounting The Digital Clock - Single Or Double

    All claims based on information publicly available at time of printing. All other product or service names mentioned in this document may be trademarks of the companies with which they are associated. © 2015 Novanex, Inc. | All rights reserved | page 12...

  • Page 17: Flush Mounting The Digital Clock

    All claims based on information publicly available at time of printing. All other product or service names mentioned in this document may be trademarks of the companies with which they are associated. © 2015 Novanex, Inc. | All rights reserved | page 13...
  • Page 18 All claims based on information publicly available at time of printing. All other product or service names mentioned in this document may be trademarks of the companies with which they are associated. © 2015 Novanex, Inc. | All rights reserved | page 14...

  • Page 19: Power Up And Verification

    All claims based on information publicly available at time of printing. All other product or service names mentioned in this document may be trademarks of the companies with which they are associated. © 2015 Novanex, Inc. | All rights reserved | page 15...
  • Page 20 All claims based on information publicly available at time of printing. All other product or service names mentioned in this document may be trademarks of the companies with which they are associated. © 2015 Novanex, Inc. | All rights reserved | page 16...

  • Page 21: Configuration

    The default setting for the primary time server is an Internet time server operated by Novanex, but this is intended for temporary use only because IT Groups prefer not to have individual clocks connecting to the Internet.
  • Page 22 All claims based on information publicly available at time of printing. All other product or service names mentioned in this document may be trademarks of the companies with which they are associated. © 2015 Novanex, Inc. | All rights reserved | page 18...

  • Page 23: Using Dhcp For Addressing And Configuration

    All claims based on information publicly available at time of printing. All other product or service names mentioned in this document may be trademarks of the companies with which they are associated. © 2015 Novanex, Inc. | All rights reserved | page 19...

  • Page 24: Dhcp Configuration Test And Rollout

    All claims based on information publicly available at time of printing. All other product or service names mentioned in this document may be trademarks of the companies with which they are associated. © 2015 Novanex, Inc. | All rights reserved | page 20...
  • Page 25 All claims based on information publicly available at time of printing. All other product or service names mentioned in this document may be trademarks of the companies with which they are associated. © 2015 Novanex, Inc. | All rights reserved | page 21...

  • Page 26: Ontime Management Settings

    All claims based on information publicly available at time of printing. All other product or service names mentioned in this document may be trademarks of the companies with which they are associated. © 2015 Novanex, Inc. | All rights reserved | page 22...

  • Page 27: Verifying The Dhcp Configuration Settings On A Clock

    All claims based on information publicly available at time of printing. All other product or service names mentioned in this document may be trademarks of the companies with which they are associated. © 2015 Novanex, Inc. | All rights reserved | page 23...

  • Page 28: Telnet Configuration

    All claims based on information publicly available at time of printing. All other product or service names mentioned in this document may be trademarks of the companies with which they are associated. © 2015 Novanex, Inc. | All rights reserved | page 24...

  • Page 29: Configuring An Ip Address

    All claims based on information publicly available at time of printing. All other product or service names mentioned in this document may be trademarks of the companies with which they are associated. © 2015 Novanex, Inc. | All rights reserved | page 25...
  • Page 30 MAC address when placing it into IPv6 mode. In order to make the management of your system as easy as possible, Novanex recommends that you record the IP Address for each clock in a table similar to the one below, particularly if you have elected to set a static IP Address.

  • Page 31: Specifying A Time Server

    All claims based on information publicly available at time of printing. All other product or service names mentioned in this document may be trademarks of the companies with which they are associated. © 2015 Novanex, Inc. | All rights reserved | page 27...

  • Page 32: Setting The Time Zone

    All claims based on information publicly available at time of printing. All other product or service names mentioned in this document may be trademarks of the companies with which they are associated. © 2015 Novanex, Inc. | All rights reserved | page 28...

  • Page 33: Troubleshooting

    All claims based on information publicly available at time of printing. All other product or service names mentioned in this document may be trademarks of the companies with which they are associated. © 2015 Novanex, Inc. | All rights reserved | page 29...
  • Page 34 All claims based on information publicly available at time of printing. All other product or service names mentioned in this document may be trademarks of the companies with which they are associated. © 2015 Novanex, Inc. | All rights reserved | page 30...

  • Page 35: Warranty And Maintenance

    Novanex liability under this Warranty is limited to repairing or replacing, at Novanex option, the defective equipment and providing upgrade version changes for firmware. In case of repair, the product must be returned to an authorized Novanex Service Center. This Warranty does not apply if repairs are required due to acts of nature beyond...
  • Page 36 Installation and User Guide Firmware Version 1 Novanex will not be responsible for dismounting and remounting of the OnTime Clock, for unauthorized returns or for returns that do not list the RMA number and quantity returned on a packing list attached in plain view on the outside of the shipping container.

  • Page 37: Glossary Of Terms

    All claims based on information publicly available at time of printing. All other product or service names mentioned in this document may be trademarks of the companies with which they are associated. © 2015 Novanex, Inc. | All rights reserved | page 33...

  • Page 38: Appendix A: Clock Configuration

    All claims based on information publicly available at time of printing. All other product or service names mentioned in this document may be trademarks of the companies with which they are associated. © 2015 Novanex, Inc. | All rights reserved | page 34...
  • Page 39 All claims based on information publicly available at time of printing. All other product or service names mentioned in this document may be trademarks of the companies with which they are associated. © 2015 Novanex, Inc. | All rights reserved | page 35...
  • Page 40 All claims based on information publicly available at time of printing. All other product or service names mentioned in this document may be trademarks of the companies with which they are associated. © 2015 Novanex, Inc. | All rights reserved | page 36...
  • Page 41 (up to five may be specified, separated by semi- colons). This setting will override values from DHCP option 72. mgmt –c “” – To clear the active Novanex management server setting. mgmt -c ontimelistener.inovasolutions.com – To set the active OnTime Management server, currently located at the indicated URL.
  • Page 42 All claims based on information publicly available at time of printing. All other product or service names mentioned in this document may be trademarks of the companies with which they are associated. © 2015 Novanex, Inc. | All rights reserved | page 38...

  • Page 43: Appendix B: Configuring Dhcp Options For Microsoft Servers

    All claims based on information publicly available at time of printing. All other product or service names mentioned in this document may be trademarks of the companies with which they are associated. © 2015 Novanex, Inc. | All rights reserved | page 39...
  • Page 44 All claims based on information publicly available at time of printing. All other product or service names mentioned in this document may be trademarks of the companies with which they are associated. © 2015 Novanex, Inc. | All rights reserved | page 40...

  • Page 45: Appendix C: Clock Management System Support

    All claims based on information publicly available at time of printing. All other product or service names mentioned in this document may be trademarks of the companies with which they are associated. © 2015 Novanex, Inc. | All rights reserved | page 41...
