Frontier Digital TM-619 SERIES Manual

MULTIPURPOSE 7 DAYS
DIGITAL PROGRAMMABLE TIMER
TM-619- SERIES

GENERAL INFORMATION

This 7 DAY's Digital Timer Series is
available in 230VAC, with voltage free
output (5PIN) or voltage output (4PIN).
The Timer Program & Clock Memory is
retained by Replaceable CR2032 or
Rechargeable V80H Lithium ION Battery.
This Timer Series is accurate to the minute
with either 8 or 18 ON/OFF Events per day
TSKTECH.IN
The 15 combination of Daily-Programs,
leads to great convince to user to choose
desired Days of Week
The 7 days 24hrs programable timer
switch can automatically switch on and
switch off various kind of equipments at
preset time
It's widely used in 7 day programing of
streetlight, neon lights, lamps, water
TSKTECH.IN
heaters, air conditions, billboards,
signboards, sprayers, agriculture or
aquarium equipments, etc.
DESCRIPTION MODELS TYPES
20AMP@250VAC TM619H-2 4P
20AMP@250VAC TM619H-2 5P
These are available with replaceable
battery CR2032
TSKTECH.IN
16AMP@250VAC TM619H-2 4P
These are available with rechargeable
battery V80H
PROGRAMMING THE TIMER #1

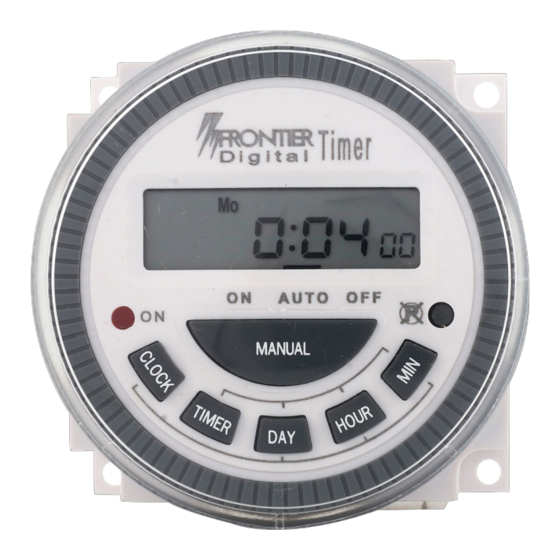

A. Functional description of the Button
on Panel
1. TIMER: Programing Mode
2. MANUAL:
Select "ON, AUTO, OFF"
"Cancel Reset Program"
3. CLOCK:
Clock settings "Day, Hour, Minutes"
Press & Hold for AM/PM
4. DAY: adjust the day of the week
5. HOUR: adjust the hour
6. MIN: adjust the minutes
7. LED: Indicates ON / OFF status
8. RESET: Reset the Timer setting
B. Adjusting the CLOCK
-
Press and hold the "CLOCK" and the
press "DAY" key, "HOUR" key, "MIN"
key respectively to adjust the clock of
timer to accurate DAY, HOUR, MINUTE.
-
Press and hold the "CLOCK" key over
3 Sec for "AM&PM"
LCD Screen shall display 00:00 - 23:59
in 24Hour Format.
