Element Mobile

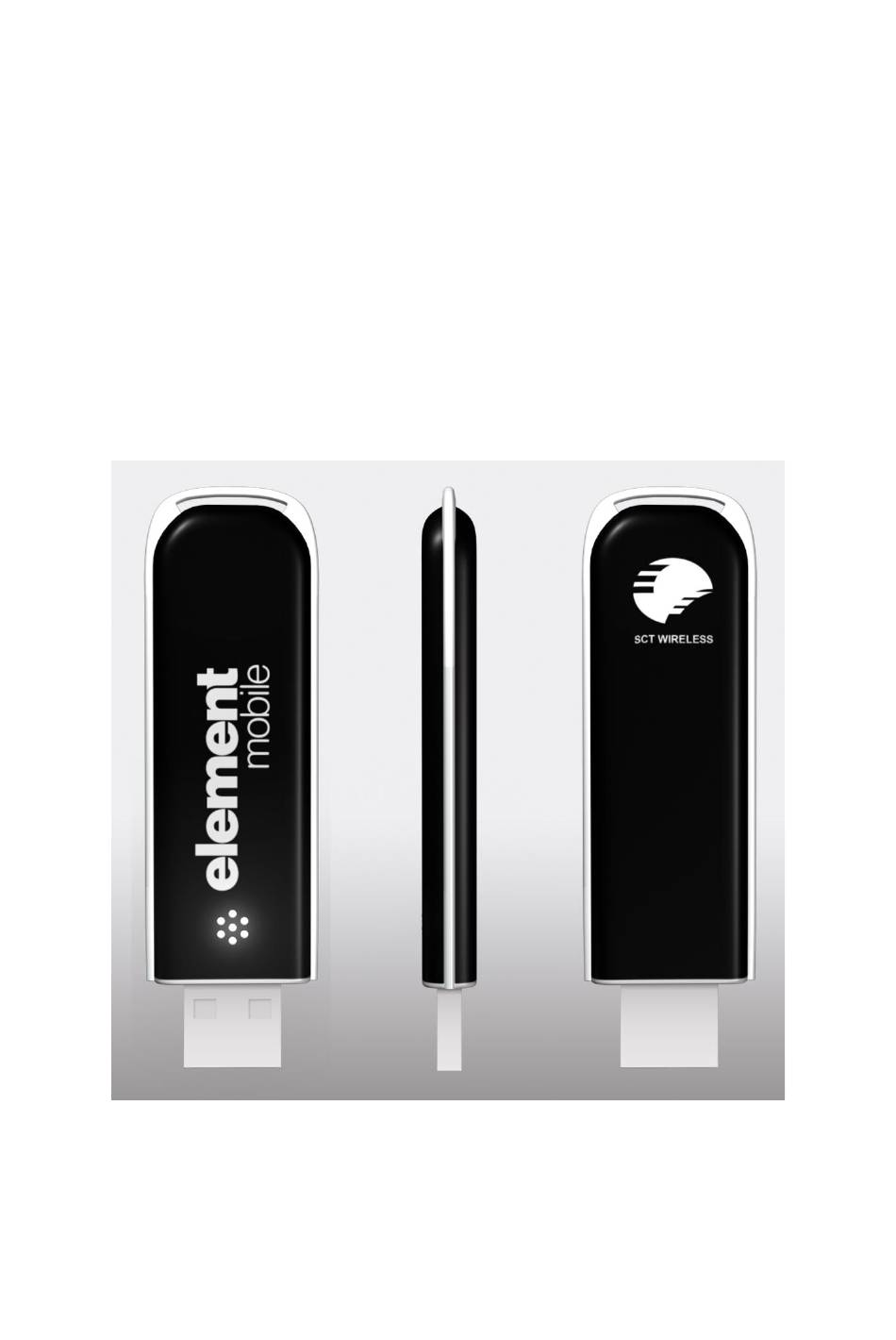

SCT-UM300 Wireless Broadband Modem

User Guide

Version 1.0

Table of Contents

Need help?

Do you have a question about the SCT-UM300 and is the answer not in the manual?

Questions and answers

Summary of Contents for element mobile SCT-UM300

Page 1 Element Mobile SCT-UM300 Wireless Broadband Modem User Guide Version 1.0...
Page 2: Table Of Contents
Introduction Mobile Connect is a software program running on your PC. With Mobile Connect, the user can activate the device and establish a data link. Windows The Main Window ...........................2 Data Link ............................3 Basics ..........................3 Establishing a data link ....................3 Disconnect a data link .....................
Page 3: The Main Window
The Main Window The main window of Mobile Connect consists of three areas: 1. Main Menu - Connect, Statistics, Setting. Make proper configuration to functions. 2. Client - display the details of each function. 3. Status - display the status of the Mobile Equipment. Icons in the main window ICON DESCRIPTION...
Page 4: Data Link
Data Link Basics You can establish a dialup data link over CDMA/EVDO via the device. The dialup data link requires network coverage for CDMA or EVDO. In each of the links, the device will be connected to a specific phone number. Establishing a data link 1.
Page 5: Statistics
Delete 1. Select "Connect-->More Profiles" 2. Choose a profile in the list, and then click "Delete" 3. In the confirmation box, click "OK" to proceed. Restore 1. Select "Connect-->More Profiles" 2. Click "Restore" for initial settings. Close After editing the profiles, you can click "Close" to close the profile list windows. Statistics Data Flow To view the data card's traffic statistics in real time or of current or last month, select...
Page 6: Settings
Settings General Auto Launch on Startup If selected, Mobile Connect will run after Windows startup. Otherwise, Mobile Connect must be started manually (either by using the desktop icon or the "Start" menu). 1. In the main window, select "Settings-->General" 2. Select the checkbox "Auto Launch on Startup". Auto Minimized If selected, Mobile Connect will be minimized after Windows startup.
Page 7: Flow Warning
Details of each frequency band Option Note Hybrid Allows the phone to select the either EVDO or CDMA service based on the networks available in your current location. CDMA 1x Only Restricts the device to CDMA service. EVDO Only Restricts the device to EVDO service. Select the Network 1.
Page 8: Version
3. In the dropdown list "Second warning point (%)", select one for the second-time notification 4. Click on "Apply" to save. Version To view versions, select "Settings-->Version" in the main window. The version screen displays Software, Driver, Firmware, Firmware build, Hardware, and Boot Loader versions.
Page 9: Device Activation
2. Verify the version of your device by going to the “Settings” tab and selecting “Version”. The version number is under Software. 3. Open the SCT-UM300 Mobile Connect. Go to the Settings tab and select Live Update. Press the Update button to launch your browser. Once the browser has opened, close...
Page 10 4. The browser will automatically navigate to the Update site. Select the SCT.exe file. Compare the version from Step 1 to this version. If they are the same, no update is necessary. 5. When the .exe file is selected, a file download window will appear. Select “Run”. The update program will be downloaded.
Page 11 9. The upgrade process will begin with Task 1 of 3 and will continue until Task 3 of 3 is complete. When the upgrade is complete, the window below will appear. 10. The installation of the new Mobile Connect will now begin. Select “Next” to continue.
Page 12 11. A status bar will track the software installation. Select “Finish” to complete the installation.
Page 13: Help
Help Through Help, you can learn the details of each menu in Mobile Connect for a quick understanding of functions of mobile. To read, select the "Help" view in the main window.
Page 14: Mac Installation
1. Remove the cover from the USB connector of the SCT-UM300. 2. Insert the USB connector of the SCT-UM300 into a USB port on your computer. 3. On the desktop, the icon for the SCT-UM300 will be displayed. Double click the icon to open the package.
Page 15 6. The SCT-UM300 Mobile Connect Installer will open and will consist of five steps: Introduction, Destination Select, Installation Type, Installation, and Summary. Select “Continue” 7. Select the destination of the software. Press “Continue” to proceed.
Page 16 8. The Installation type will be displayed. There is the option to change the Installation location on this screen. Select “Install” to proceed. 9. The Installer will request your password. Enter your password and press “OK”.
Page 17 When the installation is complete, “Install Succeeded” will be displayed on the Summary Page. Press “Close”. 11. The SCT-UM300-v2.0.5 folder will still be open. Select the “SCT-UM300 USB Driver” package. 12. The SCT-UM300 USB Driver Installer will open. Press “Continue”.
Page 18 13. Select a Destination for the driver software. Press “Continue” 14. Confirm the installation and location. Press “Install”.
Page 19 15. The Installer will request your password. Enter your password and press “OK”. 16. The installation will require your computer to restart. Press “Continue Installation”. 17. The installation process will begin. When the installation is complete, “Install Succeeded” will be displayed on the Summary Page. Press “Restart”.
Page 20 18. After the restart, close any open windows. The Mobile Connect software will be located in the applications list.
Page 21: Mac Home Screen
Mac Home Screen The system supports Mac 10.4.1 and later versions. The home screen is the first screen displayed when you enter the system, and is shown below: Data Link A dialup data link over can be established via the MAC Mobile Connect. It requires network coverage of CDMA 1X or EVDO.
Page 22: Disconnect A Data Link
2. Select a profile from “Choose Profile” - see screen below: 3. Click “Connect” to establish a data link. Disconnect a data link To disconnect, click “Disconnect”. Device Activation In the main window, Click button, the "Device Activation" page contains device parameters, OTA, and device activation.
Page 23: Ota
In the main window, Click the “Activation” button, the "Device Activation" page contains the OTA request and Device Activation functions. View OTA 1. Make sure the device is connected 2. In the main window, Click k 3. Select Programming to have your device programmed via OTA. 4.
Page 24: Frequency Band
Frequency Band By default, the phone will pick a Frequency Band automatically, unless the carrier has a special instruction. 1. In the main window, select the button 2. Select one of the settings in the Frequency Band dropdown list. Details of each frequency band Note Option Hybrid...
Page 25: Safety Information
Safety Information Read the safety information carefully to ensure the correct and safe use of your wireless device. Interference Do not use your wireless device if using the device is prohibited or when it causes a danger or interference with electronic devices. Medical Device x Observe the rules and regulations set forth by the hospitals and health care facilities.
Page 26 Specific Absorption Rate (SAR) Your wireless device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves recommended by international guidelines. These guidelines were developed by the independent scientific organization ICNIRP and include safety margins designed to assure the protection of all persons, regardless of age and health.
Page 27 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
