Summary of Contents for Work Pro BLS2 LITE MKII
- Page 1 BLS2 LITE MKII User Manual Version1.1...
- Page 2 This document contains essential information on the use of the system. Read this document carefully to become familiar with the system. Please check the WORK PRO website regularly to download the latest version of the document and software updates: https://www.workpro.es/ BLUELINE DIGITAL MKII SERIES www.workpro.es...
-
Page 3: Table Of Contents
1. INTRODUCTION ..........................3 2. Components of the BlueLine Digital MKII System ................4 3. AUDIO SENDERS ..........................4 3.1.1. Audio streaming formats .................... 4 4. BLS2 LITE MKII ........................... 5 Features ............................. 6 Device description........................6 4.2.1. Display ......................... 7 4.2.2. -
Page 4: Introduction
BLS2 LITE MKII USER MANUAL VERSION 1.1 INTRODUCTION The devices of the BlueLine Digital MKII series allow the streaming of audio over IP through Ethernet, complying with the TCP / IP protocol stack. Using the BlueLine Digital MKII system it is possible to perform from a simple point-to-point audio transmission to a complex multi- channel system with alarm control and management. -
Page 5: Components Of The Blueline Digital Mkii System
SD module. 3.1.1. Audio streaming formats The BlueLine senders (BLS2 LITE MKII and BLS2 SD MKII) can transmit audio without coding or with coding, the audio format chosen will depend on the needs of your installation. -
Page 6: Bls2 Lite Mkii

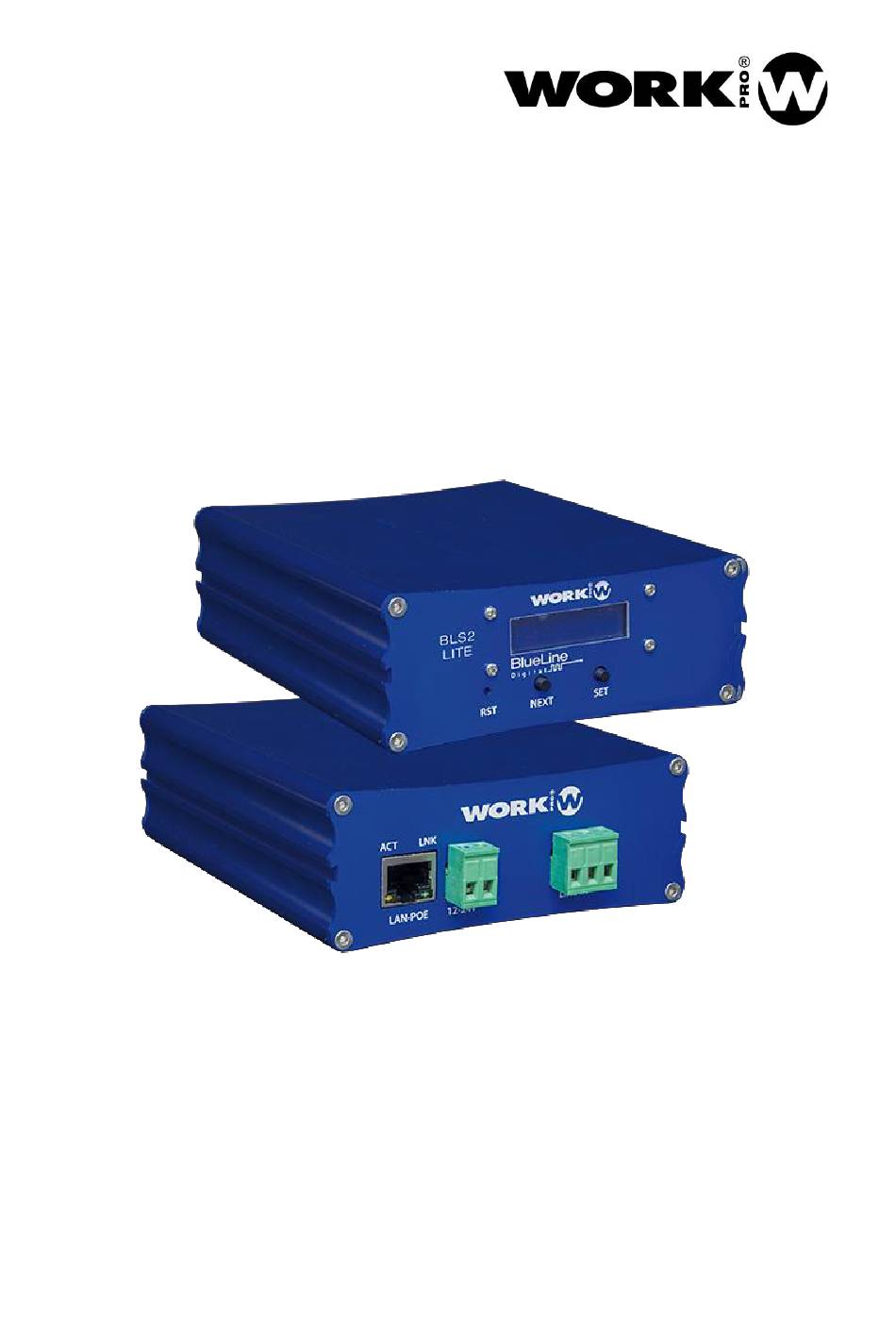

BLS2 LITE MKII The BLS2 LITE MKII is an audio sender of one stereo channel, with unbalanced input, that supports PCM / MP3 audio modes. The device can be powered by either PoE or external power supply. -
Page 7: Features
BLS2 LITE MKII USER MANUAL VERSION 1.1 Features Analog audio input Number of channels 1 stereo channel (unbalanced) Audio connector Euroblock, 3 pin 5.08mm Input sensitivity 0.7 dBu (840mV Network Connector RJ-45 Audio over IP BlueLine UDP datagrams Ethernet 100 base TX... -
Page 8: Display
BLS2 LITE MKII USER MANUAL VERSION 1.1 1. Reset button. Take the device to its factory configuration 2. Next button. It allows to advance between and through the different screens of the display. 3. Display. It shows different features of the device. -
Page 9: Analog Audio Input
RJ45 port for LAN connection. Allows PoE power (Class 0 802.3af). Next to the RJ45 connector you will find two LEDs indicating the status of the device: LINK (green) Indicates that the BLS2 LITE MKII is connected to the LAN ACT (orange) Indicates that packets are being sent or received BLUELINE DIGITAL MKII SERIES www.workpro.es... -
Page 10: Main Supply Input
BLS2 LITE MKII USER MANUAL VERSION 1.1 4.2.4. Main supply input Power input for external power supply. The admitted voltage can be between 12/24 Vdc, with a minimum current of 500 mA. Check the current polarity before connecting the main supply The external power supply is not provided with the device. - Page 11 BLS2 LITE MKII USER MANUAL VERSION 1.1 Zone: This field refers to the zone to which the device belongs, in order to receive OSC control commands. By default, all BlueLine senders are in zone -1. It is recommended not to modify the zone in the senders.
-
Page 12: Accessories
BLS2 LITE MKII USER MANUAL VERSION 1.1 Accessories The BLS2 LITE MKII includes a series of accessories for mounting on a wall or with the rack accessory BL AR 19 (not included): 2x Wings for mounting in a wall. 4 screws. - Page 13 BLS2 LITE MKII USER MANUAL VERSION 1.1 BLUELINE DIGITAL MKII SERIES www.workpro.es...
