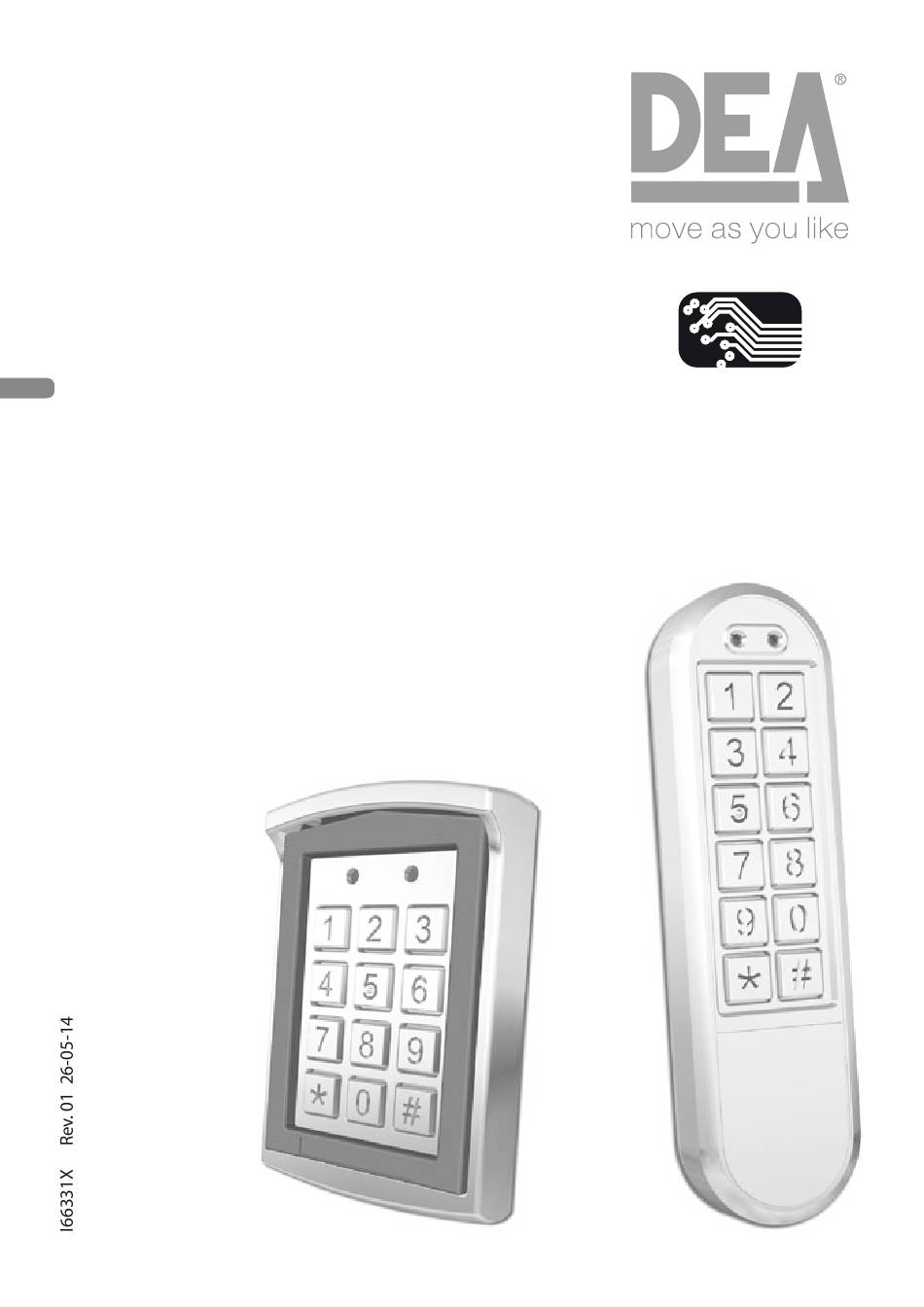

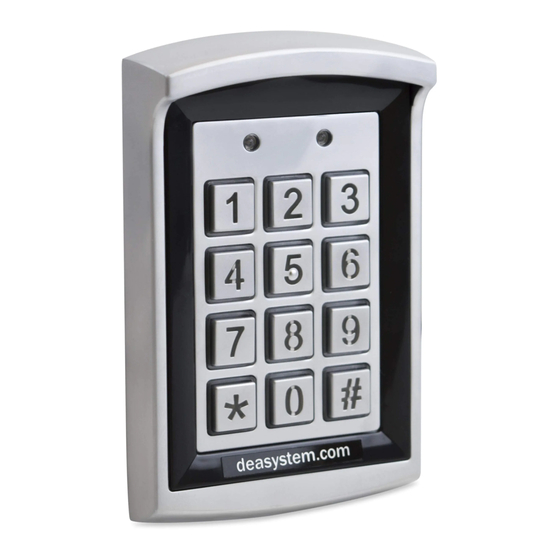

- Page 1 Digipro Digislim Access Control Operating instructions and warnings...
- Page 2 Digipro - Digislim Access Control Operating instructions and warnings Art. DIGIPRO Art. DIGISLIM N° Description Technical data Mode indicator Terms of use: - temperature: -20°C ÷ +50°C Door indicator - RH: ≤95% Current and voltage: Antenna - DC input: +12V - +24V...
-
Page 3: Specifications/Features
• Delay release time output: 0~99s. • IP: 65. • Dimensions: DigiPro : 120x76x28 mm. DigiSlim : 165x45x23,5 mm • Two relay outputs for door opening, door status detection, door opening by key. Door status detection regards ZONE 1 only. - Page 4 3 OPERATING ZONE 1 and 2 relays can be programmed to open the lock; you can store up to a maximum of 1000 user cards (AND their codes) for ZONE 1 and up to a maximum of 10 user cards (OR 10 codes) for ZONE 2.
- Page 5 3.4 Adding user card and code (ZONE 1) In setting mode: Insert a 3-digit number (from 000 to 999) corresponding to the data storage box in which you want to operate, the yellow led blinks: a) If the red LED is lit, it indicates that in the chosen memory box data is already saved, press key twice to clear the memory;...
- Page 6 3.8 Relay timing Relay timing for ZONE 1 In setting mode: • Press followed by , the yellow LED blinks, digit the desired value (from 00 to 99), the inserption of the relay activation time. The set value indicates the times the relay will be active.
- Page 7 In setting mode: • Press followed by , the yellow LED blinks, then insert a new administrator code two times (the admin code length must be the same as above): the sound “BI” indicates that the • Press to exit the setting mode. 3.11 Turn on/turn o the anti-removal alarm In setting mode: •...
- Page 8 3.15 Adding cards groups in ZONE 1 In setting mode: • Press followed by (the yellow led blinks), then press followed by , a “BI” will be he- ard as reminder. Insert a 3-digit number (from 000 to 999) corresponding to the data storage (from 000 to 999 indicating the cards quantity that can be added.
- Page 10 Sollevare - Lift - Soulever Levantar Warning: In order to remove the lid, slightly slide upward the front part, then following Fig. 1, lift the lower part of about 20° and remove it gently.
- Page 11 N° Description...
- Page 12 N° Description...
- Page 13 Door status detecting ZONE 1 ZONE 2...
- Page 14 N° Color of wires Description Black Door status detecting Brown ZONE 1 activation key Orange Yellow ZONE 2 activation key Grounding Green White N.O. 1 Pink COM 1 ZONE 1 Light green N.C. 1 Blue N.O. 2 Purple COM 2 ZONE 2 Gray N.C.
